SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-24030iJZZ31,UZZ30199104-199709

sub51201-24031

main51201-24031iJZZ31,UZZ30199709

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-24020iJZZ31,UZZ30199104

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-24050iJZZ31,UZZ30199104-199608

main51206-30040iJZZ31,UZZ30199608

51213AEXTENSION, FRONT CROSSMEMBER, UPPER RH

main51213-24010iJZZ31,UZZ30199104-199709

sub51213-24011

main51213-24011iJZZ31,UZZ30199709

51214AEXTENSION, FRONT CROSSMEMBER, UPPER LH

main51214-24010iJZZ31,UZZ30199104-199709

sub51214-24011

main51214-24011iJZZ31,UZZ30199709

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-24010iJZZ31,UZZ30199104-199304

main51219-24011iJZZ31,UZZ30199304

51223CBRACKET, FRONT SUSPENSION MEMBER BRACKT, NO.1

main51223-24010iJZZ31,UZZ30199104

51227CPLATE, SUSPENSION MEMBER SET, NO.2

main51227-24010iJZZ31,UZZ30199104

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-24030iJZZ31,UZZ30199104

51229CPLATE, SUSPENSION MEMBER SET

main51229-24020iJZZ31,UZZ30199104

51441COVER, ENGINE UNDER, NO.1

main51441-14140iJZZ31,UZZ30199304

main51441-24030iJZZ31,UZZ30199104-199304

sub51441-14140

51442COVER, ENGINE UNDER, NO.2

main51442-24010iJZZ31,UZZ30199104

51451COVER, ENGINE UNDER, NO.4 RH

main51451-24010iJZZ31,UZZ30199104-199604

sub51451-24011

main51451-24011iJZZ31,UZZ30199604

51452ACOVER, ENGINE UNDER, NO.4 LH

main51452-24010iJZZ31,UZZ30199104

51961HOOK, NO.1

main51960-24020iJZZ31,UZZ30199608-199709

main51964-24010iJZZ31199104-199709

51964AHOOK, TRANSPORT, FRONT LH

main51964-24010iJZZ31,UZZ30199104

51967BHOOK, TRANSPORT, REAR RH

main51967-24030iJZZ31,UZZ30199104

51968BHOOK, TRANSPORT, REAR LH

main51968-24030iJZZ31,UZZ30199104

52205ACUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52205-24010iJZZ31,UZZ30199104-199609

sub52205-24050

main52205-24050iJZZ31,UZZ30199609

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-24030iJZZ31,UZZ30199104

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-24010iJZZ31,UZZ30199104

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-24010iJZZ31,UZZ30199104-199608

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-50010iJZZ31,UZZ30199104-199505

sub52285-50011

main52285-50011iJZZ31,UZZ30199505

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-14010iJZZ31,UZZ30199608

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-14010iJZZ31,UZZ30199608

9010906240

main90109-06240

9011906354

main90119-06354

9011906355

main90119-06355

9011906374

main90119-06374

9011906436

main90119-06436

9011906442

main90119-06442

9011906494

main90119-06494

9011908661

main90119-08661

9011910473

main90119-10473

9011910679

main90119-10679

9011910806

main90119-10806

9011912220

main90119-12220

9011912247

main90119-12247

9011914038

main90119-14038

9015950311

main90159-50311

9016850037

main90168-50037

9017905060

main90179-05060

9017910087

main90179-10087

9017912143

main90179-12143

9017916023

main90179-16023

9018905070

main90189-05070

9020117008

main90201-17008

9046707128

main90467-07128

9046710018

main90467-10018

9095001398

main90950-01398

9095001506

main90950-01506

9095001646

main90950-01646

9095001723

main90950-01723

9095001768

main90950-01768

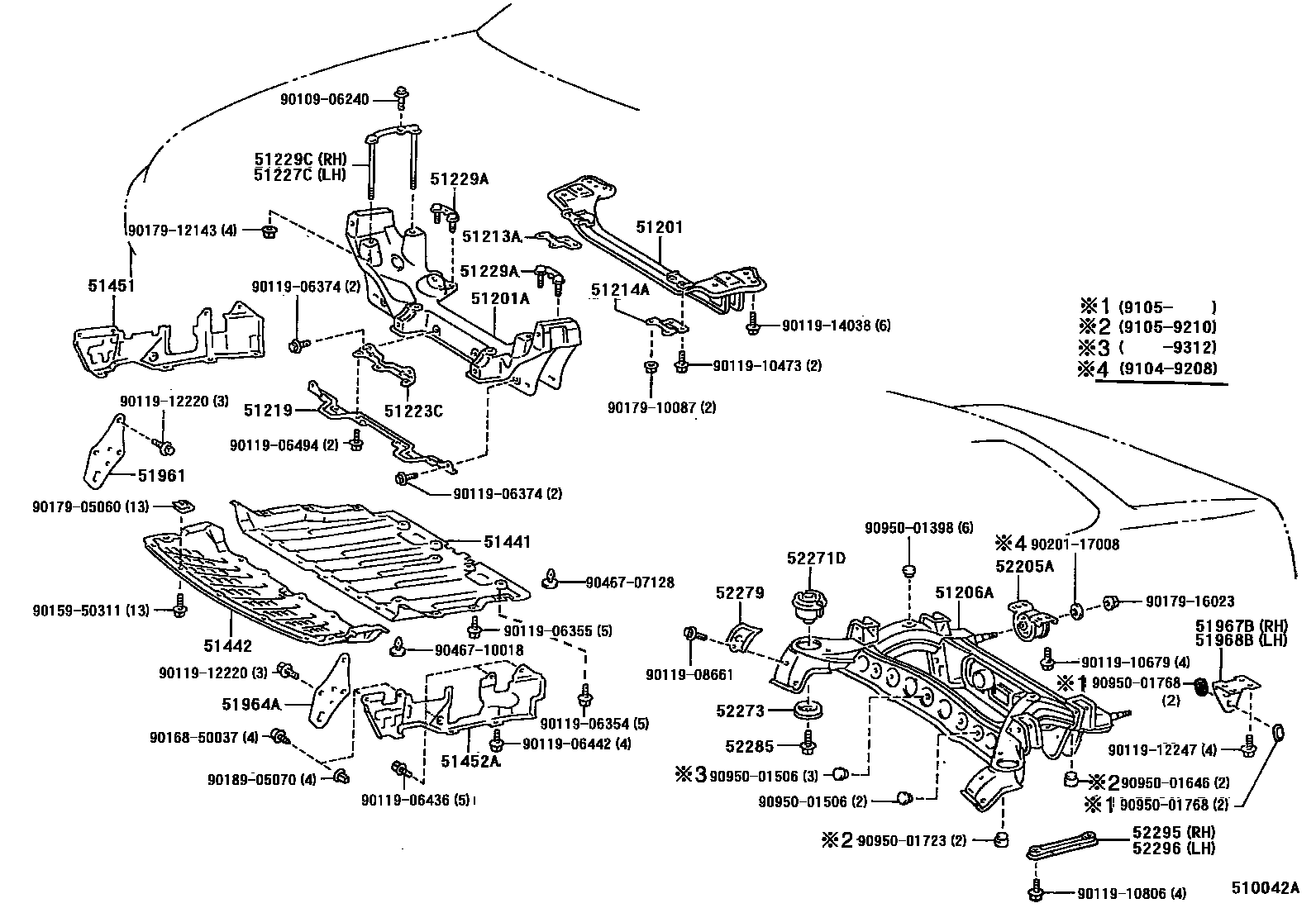

54 parts on this diagram · 1 diagram in section
