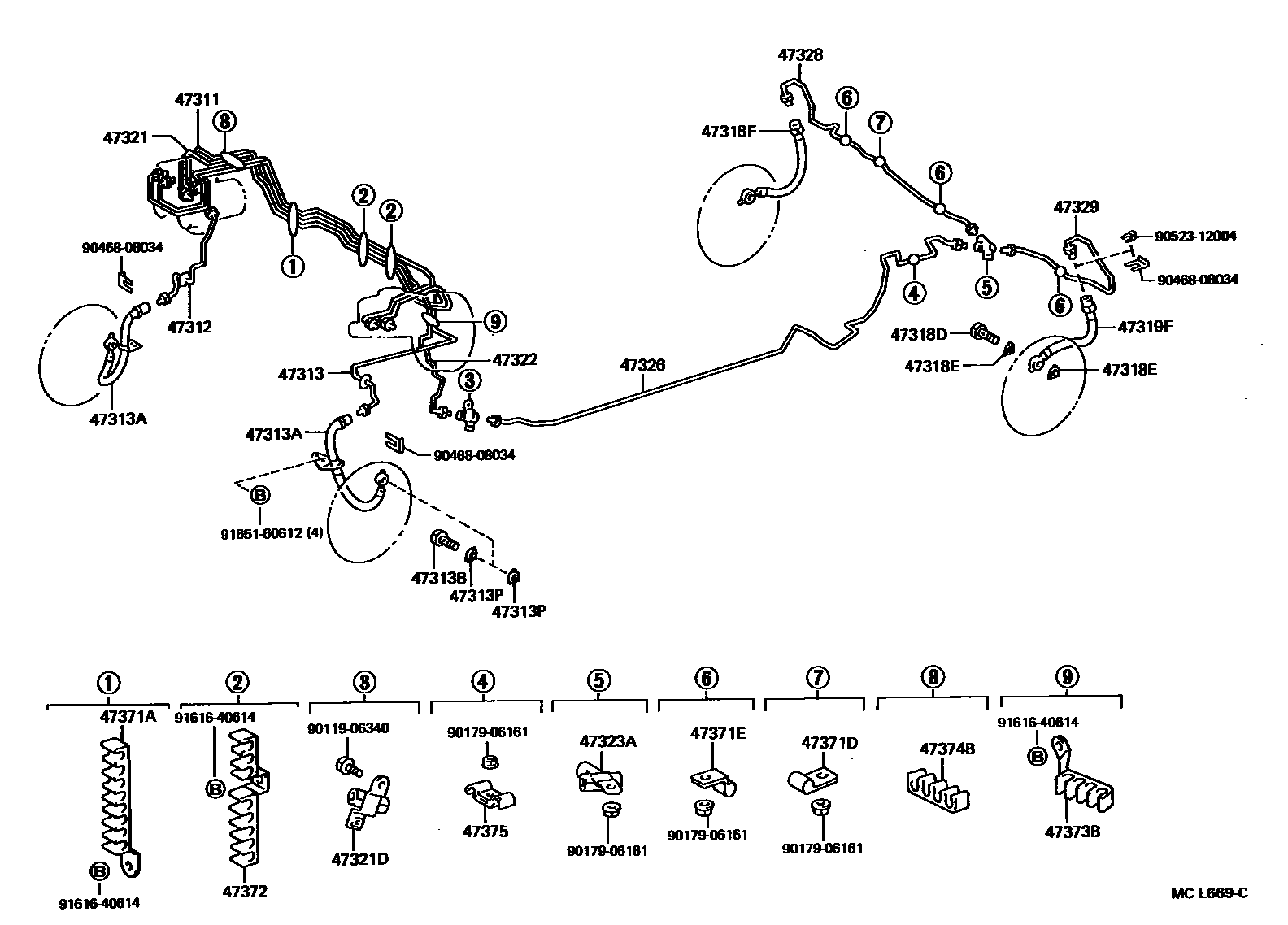

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1W(TRACTION CONTROL) 0005 1 0006 1 0008 1W(TRACTION CONTROL) 0009 1 0010 1W(TRACTION CONTROL) 0011 1 0012 1W(TRACTION CONTROL)

47311TUBE, FRONT BRAKE, NO.1

main47311-24040iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

main47311-24050iUZZ30199104-199204

main47311-24080iJZZ31199108-199608

main47311-24100iJZZ31,UZZ30..USA199608

main47311-24110iUZZ30199608-199908

W(TRACTION CONTROL)

main47311-24120iJZZ31..4FC199608-199709

W(TRACTION CONTROL)

47312TUBE, FRONT BRAKE, NO.2

main47312-24030iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

main47312-24040iUZZ30199104-199204

main47312-24090iJZZ31,UZZ30..USA199108-199608

main47312-24110iJZZ31,UZZ30..USA199608

main47312-24120iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

47313TUBE, FRONT BRAKE, NO.3

main47313-24040iUZZ30199104-199204

main47313-24090iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

main47313-24100iJZZ31,UZZ30199108-199608

main47313-24120iJZZ31,UZZ30..USA199608

main47313-24130iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main47330-14010iJZZ31,UZZ30199305-199508

RH

sub47330-14011

sub90468-08035

main47330-14011iJZZ31,UZZ30199508

RH

main47330-24010iJZZ31,UZZ30199104-199305

RH

sub47330-14010

main47340-14010iJZZ31,UZZ30199305-199508

LH

sub47340-14011

sub90468-08035

main47340-14011iJZZ31,UZZ30199508

LH

main47340-24010iJZZ31,UZZ30199104-199305

LH

sub47340-14010

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10042iJZZ31,UZZ30199104

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-24010iJZZ31,UZZ30199104

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10042iJZZ31,UZZ30199104

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-24010iJZZ31,UZZ30199104

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02654iJZZ31,UZZ30199104-199508

sub90947-02873

sub90468-08035

main90947-02873iJZZ31,UZZ30199508-199609

sub90947-02949

main90947-02949iJZZ31,UZZ30199609

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02654iJZZ31,UZZ30199104-199508

sub90947-02873

sub90468-08035

main90947-02873iJZZ31,UZZ30199508-199609

sub90947-02949

main90947-02949iJZZ31,UZZ30199609

47321TUBE, REAR BRAKE, NO.1

main47321-24040iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

main47321-24050iUZZ30199104-199204

main47321-24080iJZZ31199108-199608

main47321-24100iJZZ31,UZZ30..USA199608

main47321-24110iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10181iJZZ31,UZZ30..4FC199104

W(TRACTION CONTROL)

main90412-10181iUZZ30199709

main90412-10182iJZZ31,UZZ30199104-199608

47322TUBE, REAR BRAKE, NO.2

main47322-24040iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

main47322-24050iUZZ30199104-199204

main47322-24100iJZZ31,UZZ30199108-199608

main47322-24120iJZZ31,UZZ30..USA199608

main47322-24130iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

47323TUBE, REAR BRAKE, NO.3

main47323-24020iJZZ31,UZZ30..4FC199104-199608

main47323-24030iJZZ31,UZZ30..ATM199608

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90412-10167iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

main90413-10260iJZZ31,UZZ30199104-199401

47326TUBE, REAR BRAKE, NO.6

main47326-24020iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

main47326-24030iJZZ31,UZZ30..USA199104-199401

main47327-24010iJZZ31,UZZ30..4FC199104-199608

W(TRACTION CONTROL)

47328TUBE, REAR BRAKE, NO.8

main47328-24010iJZZ31,UZZ30..ATM199104

W(TRACTION CONTROL)

main47328-24020iUZZ30199104-199107

sub47328-24040

main47328-24040iJZZ31,UZZ30199107-199401

47329TUBE, REAR BRAKE, NO.9

main47329-24010iJZZ31,UZZ30..ATM199104

W(TRACTION CONTROL)

main47329-24020iUZZ30199104-199107

sub47329-24040

main47329-24040iJZZ31,UZZ30199107-199401

47371ACLAMP, BRAKE TUBE, NO.1

main47371-24010iJZZ31,UZZ30199401-199608

main47371-24010iJZZ31,UZZ30..4FC199104-199401

W(TRACTION CONTROL)

main47371-24020iJZZ31199108-199401

sub47371-24050

main47371-24050iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

47371DCLAMP, BRAKE TUBE, NO.8

main90461-06185iJZZ31,UZZ30199104

47371ECLAMP, BRAKE TUBE, NO.9

main90461-06208iUZZ30199104-199107

FRONT

main90461-06208iJZZ31,UZZ30..ATM199104

W(TRACTION CONTROL)

main90461-06208iJZZ31,UZZ30..USA199401

main90461-08652iUZZ30199104-199107

REAR

47372CLAMP, BRAKE TUBE, NO.2

main47371-24020iJZZ31,UZZ30..USA199401-199708

sub47371-24050

main47371-24020iJZZ31,UZZ30..4FC199104-199401

W(TRACTION CONTROL)

sub47371-24050

main47371-24030iJZZ31199108-199401

main47371-24050iJZZ31,UZZ30..USA199708

main47371-24090iJZZ31,UZZ30..ATM199608

W(TRACTION CONTROL)

47373BCLAMP, BRAKE TUBE, NO.3

main47371-24010iJZZ31,UZZ30199108-199401

main47371-24030iJZZ31,UZZ30..4FC199104-199401

W(TRACTION CONTROL)

main47371-24030iJZZ31,UZZ30199401-199908

main47371-24110iJZZ31,UZZ30199908

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00531iJZZ31,UZZ30199104-199401

main90464-00583iJZZ31,UZZ30..4FC199104-199401

W(TRACTION CONTROL)

47375CLAMP, BRAKE TUBE, NO.5

main47371-24070iJZZ31,UZZ30199104

9011906340

main90119-06340

9017906161

main90179-06161

9046808034

main90468-08034

9052312004

main90523-12004

9161640614

main91616-40614

9165160612

main91651-60612
