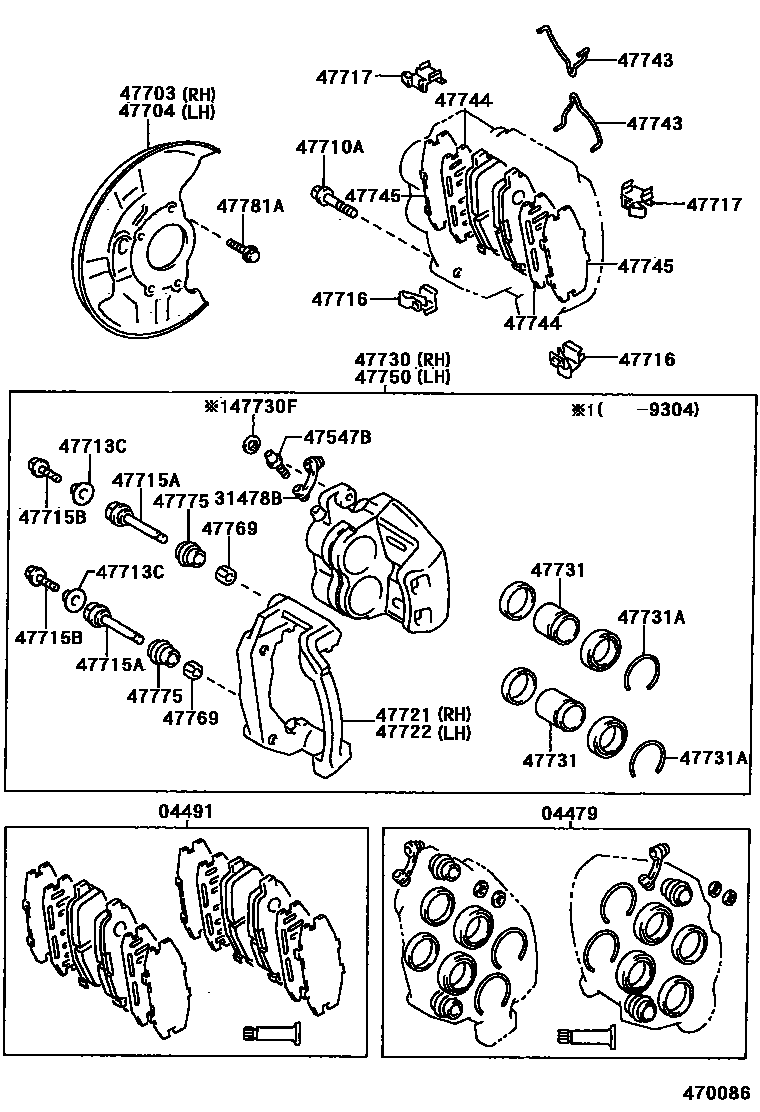

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-24011iUZZ30199104-199203

sub04479-50030

main04479-50030iJZZ31199108-199203

04491PAD KIT, DISC BRAKE, FRONT

main04491-24031iJZZ31199108-199401

sub04491-24060

main04491-24041iUZZ30199104-199401

sub04491-24070

main04491-24060iJZZ31199401-199503

sub04465-24010

main04491-24070iUZZ30199401-199505

sub04465-24020

main04491-24080iJZZ31199503-199505

sub04465-24040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-24030iUZZ30199104

main31478-30010iJZZ31199108-199808

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iJZZ31199108-199808

main47547-27040iUZZ30199104

main47547-27040iJZZ31199808

S PACKAGE

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-24010iJZZ31199108-199808

main47703-24020iUZZ30199104-199401

main47781-14150iUZZ30199401-199808

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-24010iJZZ31199108-199808

main47704-24020iUZZ30199104-199401

main47782-14150iUZZ30199401-199808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iJZZ31,UZZ30199104

*12-1.25PX35-27

main90110-12005iUZZ30199204-199304

*12-1.25PX40-30

47713CCOLLAR(FOR FRONT DISC BRAKE CYLINDER)

main90389-08101iUZZ30199104-199508

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-24010iJZZ31199808

S PACKAGE

main47715-24010iUZZ30199104

main47715-50020iJZZ31199108-199808

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iJZZ31199108-199808

main90109-08214iUZZ30199104

main90109-08214iJZZ31199808

S PACKAGE

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iJZZ31,UZZ30199104-199808

INNER

main47716-24020iUZZ30199104-199808

OUTER

main47716-50010iJZZ31199108-199808

INNER

main47716-50030iJZZ31199108-199808

OUTER

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-24010iUZZ30199104-199808

INNER

main47717-24020iUZZ30199104-199808

OUTER

main47717-50011iJZZ31199108-199808

INNER

main47717-50031iJZZ31199108-199808

OUTER

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14170iJZZ31,UZZ30199301-199808

main47721-24030iJZZ31199108-199808

main47721-24040iUZZ30199104-199301

sub47721-14170

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-14060iUZZ30199301-199808

main47722-24030iJZZ31199108-199808

main47722-24040iUZZ30199104-199301

sub47722-14060

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14250iUZZ30199304-199508

sub47730-24082

main47730-24040iJZZ31199108-199304

sub47730-24041

main47730-24041iJZZ31199304-199808

main47730-24050iUZZ30199104-199301

sub47730-24051

main47730-24051iUZZ30199301-199304

sub47730-14250

main47730-24082iUZZ30199508-199808

47730FWASHER, PLATE(FOR FRONT DISC BRAKE SYLINDER)

main90201-13036iUZZ30199104-199304

47731PISTON, FRONT DISC BRAKE

main47731-14130iUZZ30199304

main47731-14130iJZZ31199808

S PACKAGE

main47731-24010iUZZ30199104-199304

sub47731-14130

main47731-50030iJZZ31199108-199808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002iJZZ31,UZZ30199104

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-24020iUZZ30199104-199808

main47743-50030iJZZ31199108-199808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14130iUZZ30199304-199608

main47744-24010iUZZ30199104-199304

main47744-50010iJZZ31199108-199608

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060iUZZ30199304-199608

main47745-24010iUZZ30199104-199304

main47745-50010iJZZ31199108-199608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14260iUZZ30199304-199508

sub47750-24082

main47750-24040iJZZ31199108-199304

sub47750-24041

main47750-24041iJZZ31199304-199808

main47750-24050iUZZ30199104-199301

sub47750-24051

main47750-24051iUZZ30199301-199304

sub47750-14260

main47750-24082iJZZ31,UZZ30199508-199808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJZZ31,UZZ30199104

LOWER

main47769-50020iJZZ31,UZZ30199104

UPPER

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iJZZ31,UZZ30..4FC,5F199104

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iJZZ31,UZZ30199111

main91611-60610iJZZ31,UZZ30199104-199111

sub91611-B0610

25 parts on this diagram · 3 diagrams in section
