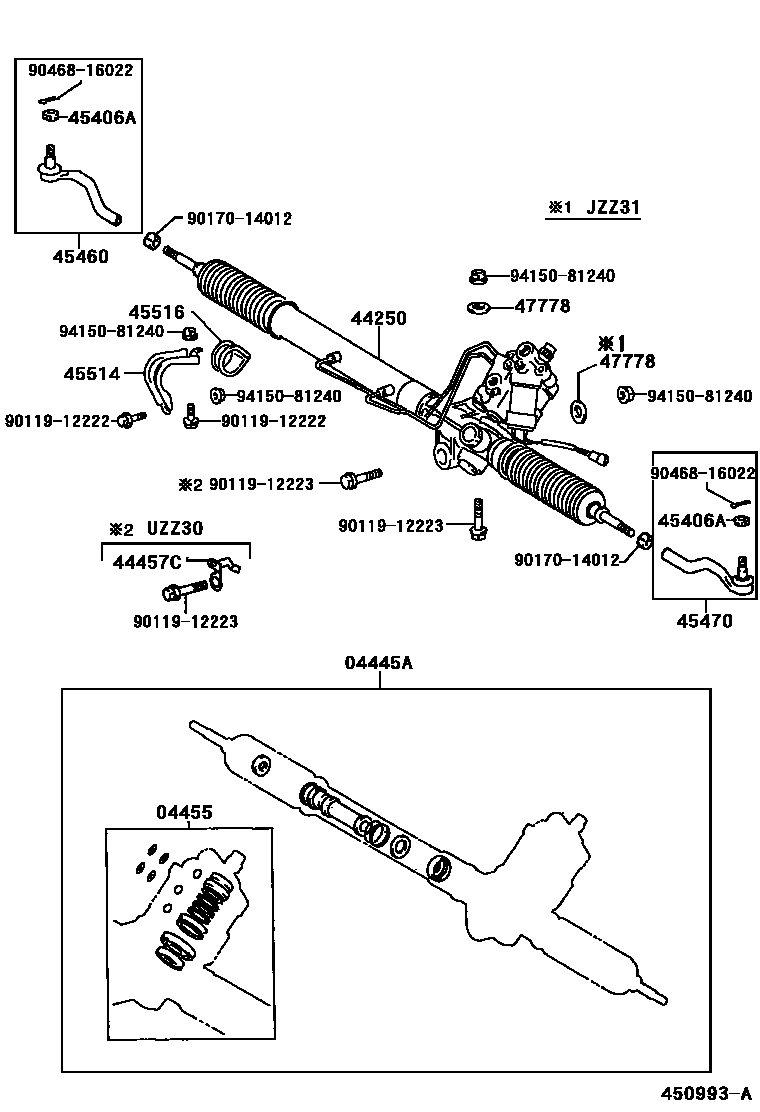

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-24050iJZZ31,UZZ30199104-199212

sub04445-24051

main04445-24051iJZZ31,UZZ30199212

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-24050iJZZ31,UZZ30199104-199212

sub04455-24051

main04455-24051iJZZ31,UZZ30199212

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-24110iJZZ31,UZZ30199104-199401

main44250-24130iJZZ31,UZZ30199401-199608

sub44250-24150

main44250-24150iJZZ31,UZZ30199608

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-24150iUZZ30199104

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12002iJZZ31,UZZ30199305

main90171-12028iJZZ31,UZZ30199104-199305

45460ROD ASSY, TIE, RH

main45460-19235iJZZ31,UZZ30199401

main45460-29365iJZZ31,UZZ30199104-199401

45470ROD ASSY, TIE, LH

main45470-19065iJZZ31,UZZ30199401

main45470-29135iJZZ31,UZZ30199104-199401

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-24030iJZZ31199310

main45515-24040iUZZ30199104-199310

45516GROMMET, STEERING RACK HOUSING, NO.1

main45517-24030iJZZ31,UZZ30199104

47778RETAINER, STEERING RACK HOUSING

main47778-24010iUZZ30199104

9011912222

main90119-12222

9011912223

main90119-12223

9017014012

main90170-14012

9046816022

main90468-16022

9415081240

main94150-81240

15 parts on this diagram · 2 diagrams in section
