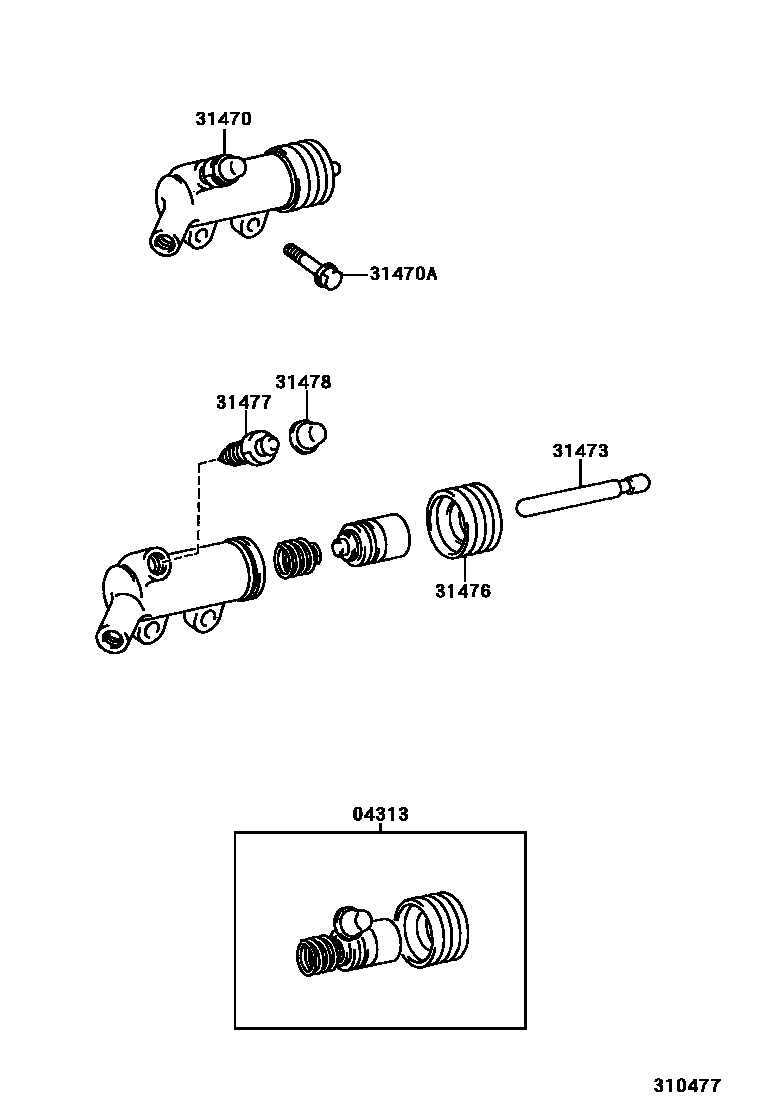

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iJZZ31..5F199111-199604

main04313-22030iJZZ31..5F199604-199608

main04313-30130iJZZ31..5F199608-199709

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14080iJZZ31..5F199608-199709

main31470-22120iJZZ31..5F199111-199608

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iJZZ31..5F199111-199709

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iJZZ31..5F199604-199709

main31473-22010iJZZ31..5F199111-199604

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iJZZ31..5F199111-199709

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iJZZ31..5F199111-199709

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJZZ31..5F199111-199709

7 parts on this diagram · 1 diagram in section
