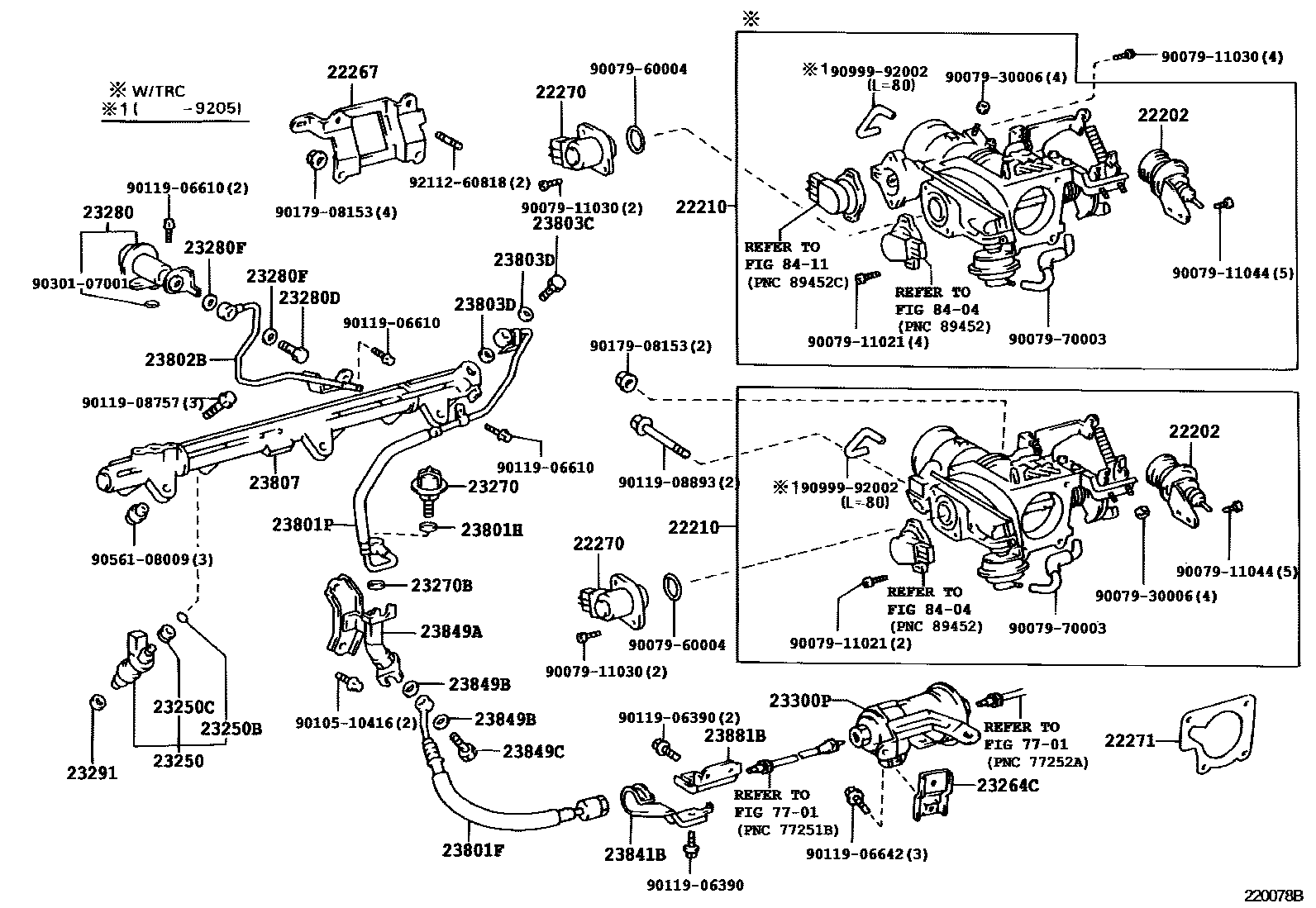

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
CALIFORNIA SPEC
CALIFORNIA SPEC & W(TRACTION CONTROL)
W(TRACTION CONTROL)
CALIFORNIA SPEC
sub22210-50012
sub22210-50080
22267BRACKET, THROTTLE BODY
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
CALIFORNIA SPEC
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23264CBRACKET, FUEL FILTER
23270BGASKET(FOR PULSATION DAMPER HOSE)
PULSATIONDAMPER SIDE
DELIVERY PIPE SIDE
DELIVERY PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
CALIFORNIA SPEC
23300PFILTER, FUEL(FOR EFI)
23801FHOSE, FUEL, NO.1
23801HGASKET(FOR FUEL PIPE)
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23807-46021
sub23807-46031
sub23807-50011
sub23807-50021
sub23807-50031
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23849ASUPPORT, FUEL PIPE
23849BGASKET(FOR FUEL PIPE SUPPORT)
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
23881BBRACKET, FUEL HOSE
7701
8404
8411
9007911021
main90079-11021
9007911030
main90079-11030
9007911044
main90079-11044
9007930006
main90079-30006
9007960004
main90079-60004
9007970003
main90079-70003
9010510416
main90105-10416
9011906390
main90119-06390
9011906610
main90119-06610
9011906642
main90119-06642
9011908757
main90119-08757
9011908893
main90119-08893
9017908153
main90179-08153
9030107001
main90301-07001
9056108009
main90561-08009
9099992002
main90999-92002
9211260818
main92112-60818
48 parts on this diagram · 9 diagrams in section
