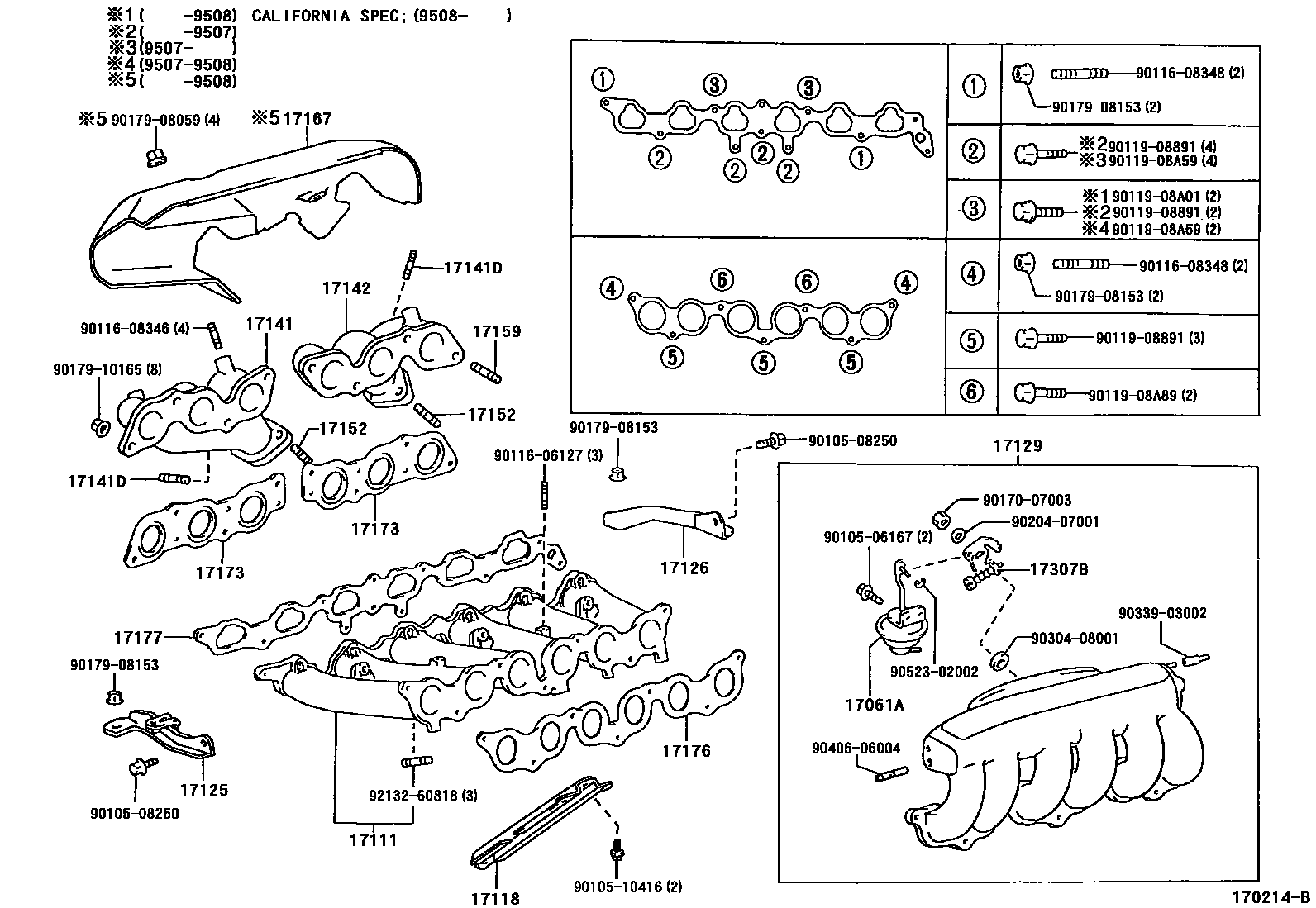

MANIFOLD

0001 1 0002 1 0003 1 0004 1

17061ADIAPHRAGM SUB-ASSY

main17061-46010i2JZGE..JZZ31199108-200007

17111MANIFOLD, INTAKE

main17101-46020i2JZGE..JZZ31199401-199507

CALIFORNIA SPEC

sub17101-46021

sub25601-46011

sub90119-08A59

sub90119-08A90

main17101-46021i2JZGE..JZZ31199507-199508

CALIFORNIA SPEC

main17101-46021i2JZGE..JZZ31199508-199709

main17101-46030i2JZGE..JZZ31199709-200007

main17101-50010i1UZFE..UZZ30199709

main17111-46030i2JZGE..JZZ31199108-199507

sub17111-46031

sub25601-46011

sub90119-08A59

sub90119-08A90

main17111-46031i2JZGE..JZZ31199507-199508

main17111-50020i1UZFE..UZZ30199104-199709

17118STAY, MANIFOLD

main17118-46040i2JZGE..JZZ31199108-199111

sub17118-46041

main17118-46041i2JZGE..JZZ31199111-199507

sub17118-46042

main17118-46042i2JZGE..JZZ31199507-200007

17125STAY, SURGE TANK, NO.1

main17125-46030i2JZGE..JZZ31199108-199709

17126STAY, SURGE TANK, NO.2

main17126-46010i2JZGE..JZZ31199108-199709

17129TANK, INTAKE AIR SURGE

main17109-46020i2JZGE..JZZ31199108-199709

sub17109-46050

main17109-46090i2JZGE..JZZ31199709-199908

sub17109-46091

main17109-46091i2JZGE..JZZ31199908-200007

main17109-50010i1UZFE..UZZ30199104-199401

main17109-50030i1UZFE..UZZ30199401-199709

17141MANIFOLD, EXHAUST

main17140-46010i2JZGE..JZZ31199401-199508

CALIFORNIA SPEC

sub17140-46011

main17140-46011i2JZGE..JZZ31199508-199709

main17140-46030i2JZGE..JZZ31199709

main17141-46040i2JZGE..JZZ31199108-199508

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90126-08001i2JZGE..JZZ31199108-199508

17142CASE, EXHAUST MANIFOLD, NO.2

main17142-46020i2JZGE..JZZ31199108-199508

main17150-46010i2JZGE..JZZ31199401-199508

CALIFORNIA SPEC

sub17150-46011

main17150-46011i2JZGE..JZZ31199508-199709

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146i2JZGE..JZZ31199111-199709

main90126-10005i2JZGE..JZZ31199108-199111

sub90116-10146

main90126-10006i1UZFE..UZZ30199104

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10150i2JZGE..JZZ31199108-199303

main90126-10006i1UZFE..UZZ30199104-199407

main90126-10014i2JZGE..JZZ31199303-200007

main90126-10015i1UZFE..UZZ30199407

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-46030i2JZGE..JZZ31199108-199508

main17167-50040i1UZFE..UZZ30199104

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46020i2JZGE..JZZ31199108-199908

main17173-46050i2JZGE..JZZ31199908

sub17173-46051

main17173-50020i1UZFE..UZZ30199104-199709

sub17173-50021

main17173-50021i1UZFE..UZZ30199709

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-46020i2JZGE..JZZ31199108-200007

main17176-50020i1UZFE..UZZ30199104-199409

sub17176-50021

main17176-50021i1UZFE..UZZ30199409-199709

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-50010i1UZFE..UZZ30199104-199409

sub17171-50011

main17171-50011i1UZFE..UZZ30199409-199709

main17171-50020i1UZFE..UZZ30199709

main17177-46020i2JZGE..JZZ31199108-199301

sub17177-46040

main17177-46040i2JZGE..JZZ31199301-199709

main17177-46060i2JZGE..JZZ31199709-200007

17307BLEVER SUB-ASSY, INTAKE AIR CONTROL

main17307-46010i2JZGE..JZZ31199108-200007

9010506167

main90105-06167

9010508250

main90105-08250

9010510416

main90105-10416

9011606127

main90116-06127

9011608346

main90116-08346

9011608348

main90116-08348

9011908891

main90119-08891

9011908A01

main90119-08A01

9011908A59

main90119-08A59

9011908A89

main90119-08A89

9017007003

main90170-07003

9017908059

main90179-08059

9017908153

main90179-08153

9017910165

main90179-10165

9020407001

main90204-07001

9030408001

main90304-08001

9033903002

main90339-03002

9040606004

main90406-06004

9052302002

main90523-02002

9213260818

main92132-60818

36 parts on this diagram · 4 diagrams in section
