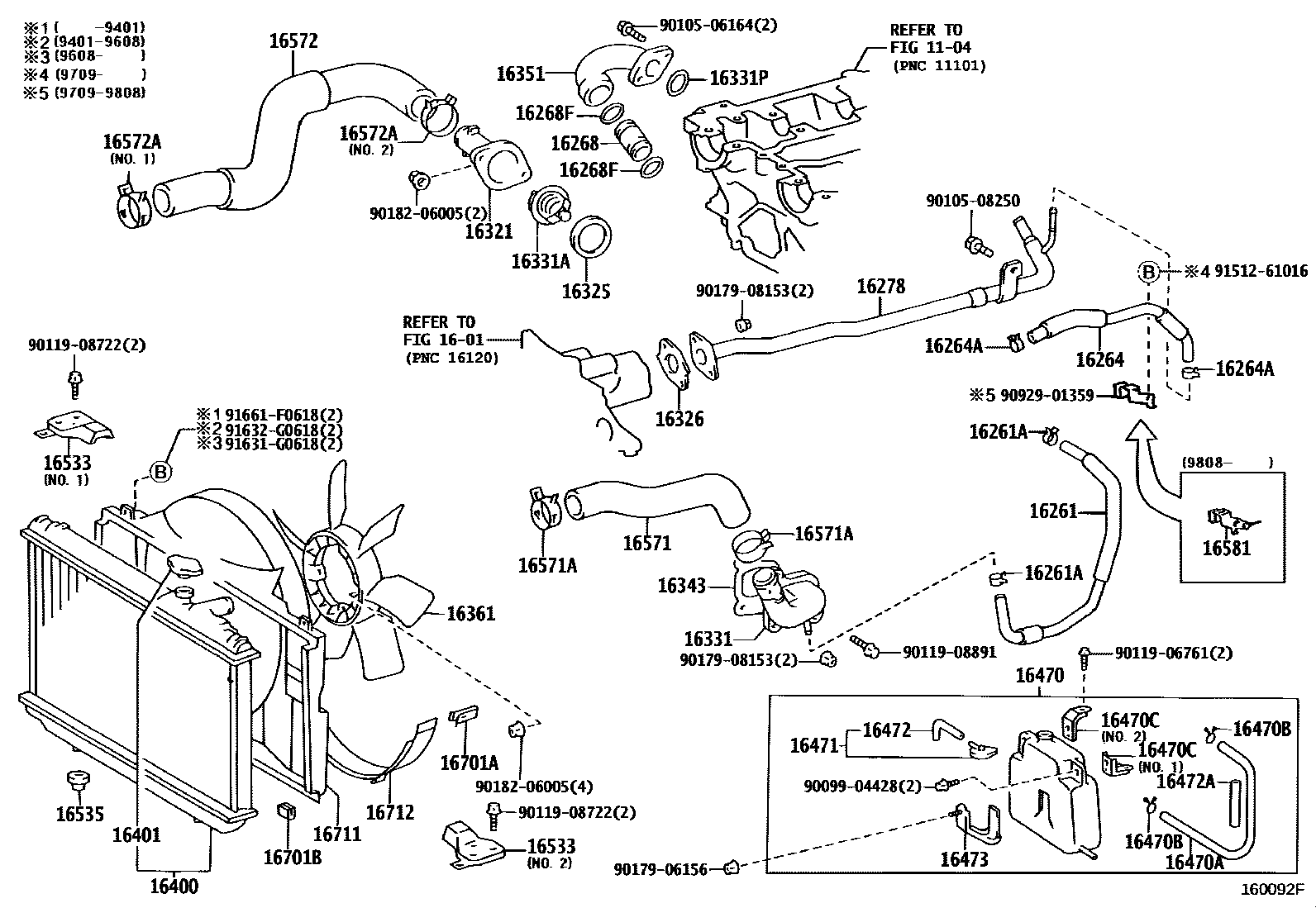

RADIATOR & WATER OUTLET
1104
1601
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16326GASKET, WATER INLET HOUSING, NO.2
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16331PRING,O(FOR WATER OUTLET)
16343GASKET, WATER OUTLET HOUSING
16400RADIATOR ASSY
sub16400-46121
sub16400-46370
sub16400-46470
sub16400-46450
sub16400-50062
sub16400-50170
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1000(*H,L=750)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16472APROTECTOR, HOSE
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16533SUPPORT, RADIATOR, UPPER
NO.1
NO.2
16535SUPPORT, RADIATOR, LOWER
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
9009904428
main90099-04428
9010506164
main90105-06164
9010508250
main90105-08250
9011906761
main90119-06761
9011908722
main90119-08722
9011908891
main90119-08891
9017906156
main90179-06156
9017908153
main90179-08153
9018206005
main90182-06005
9092901359
main90929-01359
9151261016
main91512-61016
91631G0618
main91631-G0618
91632G0618
main91632-G0618
91661F0618
main91661-F0618
54 parts on this diagram · 9 diagrams in section
