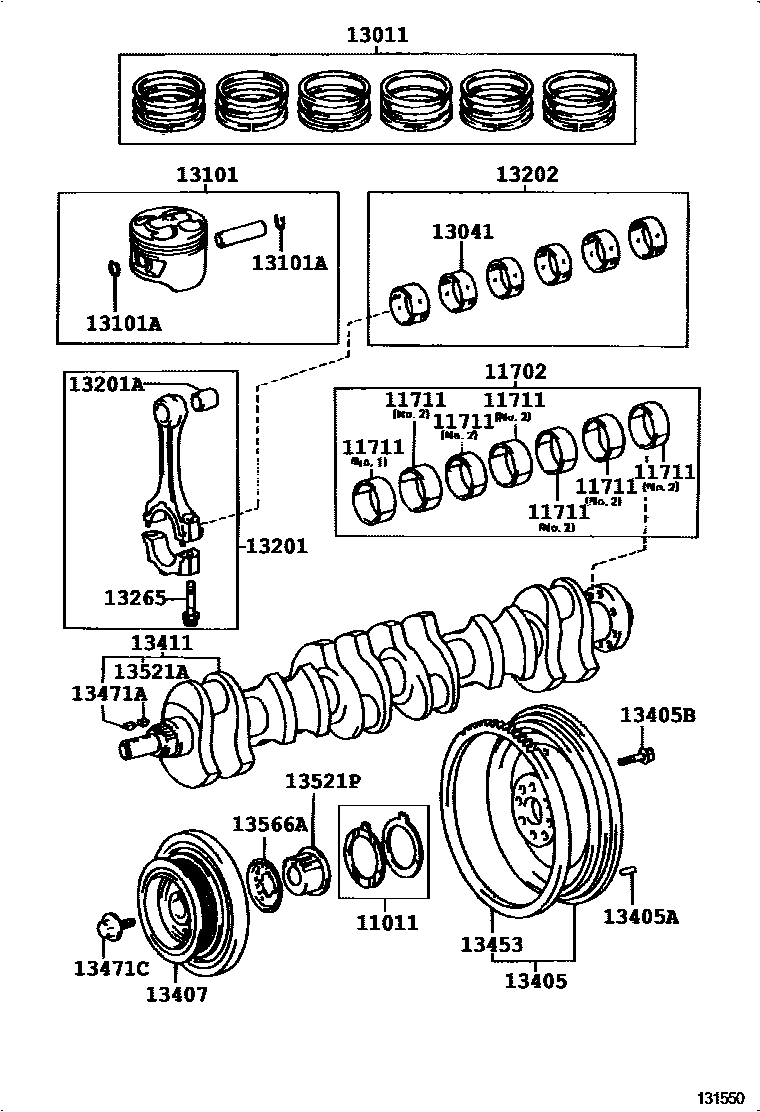

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 6,NO.1
MARK UPPER 1 LOWER 1,NO.2,3,4
MARK UPPER 1 LOWER 2,NO.2,3,4
MARK UPPER 2 LOWER 2,NO.2,3,4
MARK UPPER 2 LOWER 3,NO.2,3,4
MARK UPPER 3 LOWER 3,NO.2,3,4
MARK UPPER 3 LOWER 4,NO.2,3,4
MARK UPPER 4 LOWER 4,NO.2,3,4
MARK UPPER 4 LOWER 5,NO.2,3,4
MARK UPPER 5 LOWER 5,NO.2,3,4
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
MARK 6,NO.2
MARK UPPER 3 LOWER 3,NO.1,5
MARK UPPER 3 LOWER 4,NO.1,5
MARK UPPER 4 LOWER 4,NO.1,5
MARK UPPER 4 LOWER 5,NO.1,5
MARK UPPER 5 LOWER 5,NO.1,5
MARK UPPER 5 LOWER 6,NO.1,5
MARK UPPER 6 LOWER 6,NO.1,5
MARK UPPER 6 LOWER 7,NO.1,5
MARK UPPER 7 LOWER 7,NO.1,5
13011RING SET, PISTON
STD
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARK 1,RH
STD,MARK 2,RH
STD,MARK 3,RH
STD,MARK 1,RH
STD,MARK 2,RH
STD,MARK 3,RH
STD,MARK 1,LH
STD,MARK 2,LH
STD,MARK 3,LH
STD,MARK 1,LH
STD,MARK 2,LH
STD,MARK 3,LH
STD,MARK 1,LH
STD,MARK 2,LH
STD,MARK 3,LH
STD,STD,MARK 1,RH
STD,STD,MARK 2,RH
STD,STD,MARK 3,RH
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
22 parts on this diagram · 2 diagrams in section
