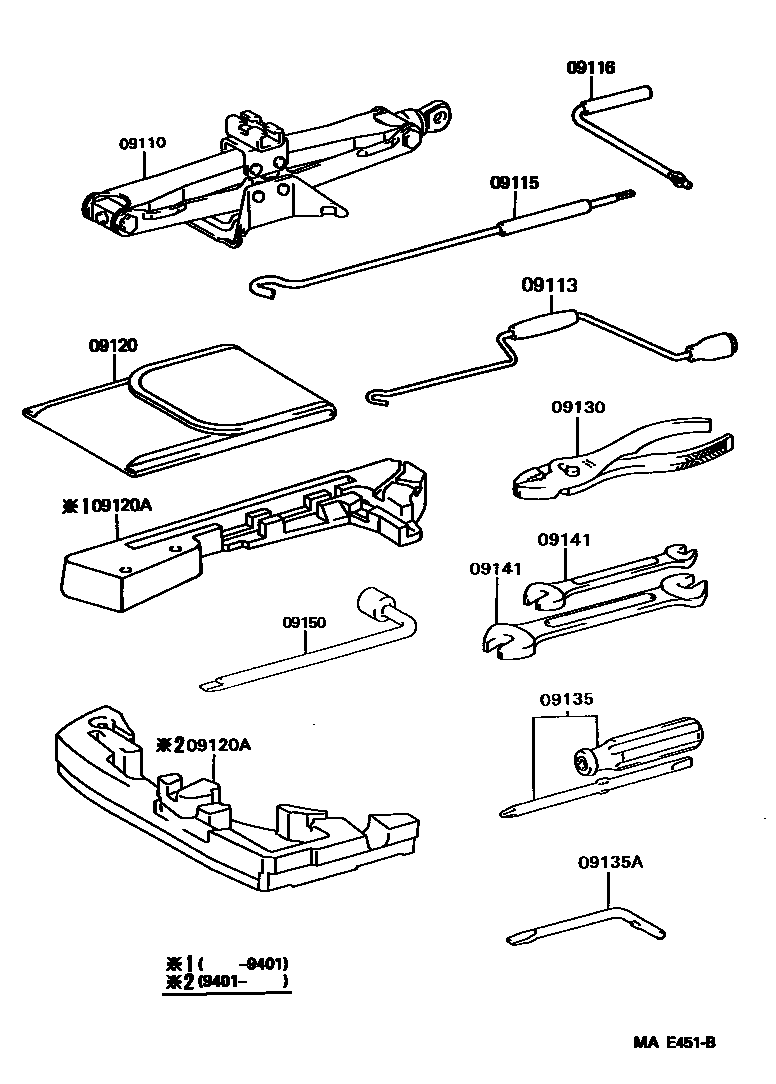

STANDARD TOOL

09110JACK ASSY

main09111-24060iJZZ31,UZZ30199104-199110

sub09111-24061

main09111-24061iJZZ31,UZZ30199110-199211

sub09111-30110

main09111-30110iJZZ31,UZZ30199211

09113HANDLE, JACK

main09113-50010iJZZ31,UZZ30199401

09115ROD SUB-ASSY, JACK HANDLE

main09115-24020iJZZ31,UZZ30199104-199401

09116LEVER, JACK HANDLE

main09116-24010iJZZ31,UZZ30199104-199401

09120BAG, TOOL

main09120-24020iJZZ31,UZZ30199104

09120ACASE, TOOL

main09120-24040iJZZ31,UZZ30199104-199401

main09120-30040iJZZ31,UZZ30199401

09130PLIERS

main09130-50010iJZZ31,UZZ30199104-199408

sub09130-50030

main09130-50030iJZZ31,UZZ30199408

09135DRIVER, SCREW

main09135-50020iJZZ31,UZZ30199104-199408

sub09135-50040

main09135-50040iJZZ31,UZZ30199408

09135ABIT, SCREW DRIVER

main09135-50010iJZZ31,UZZ30199104-199401

09141SPANNER

main09141-50010iJZZ31,UZZ30199104-199408

8 X 10

sub09141-50050

main09141-50020iJZZ31,UZZ30199104-199408

12 X 14

sub09141-50060

main09141-50050iJZZ31,UZZ30199408

8 X 10

main09141-50060iJZZ31,UZZ30199408

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iJZZ31,UZZ30199104

sub09150-53010

11 parts on this diagram · 1 diagram in section
