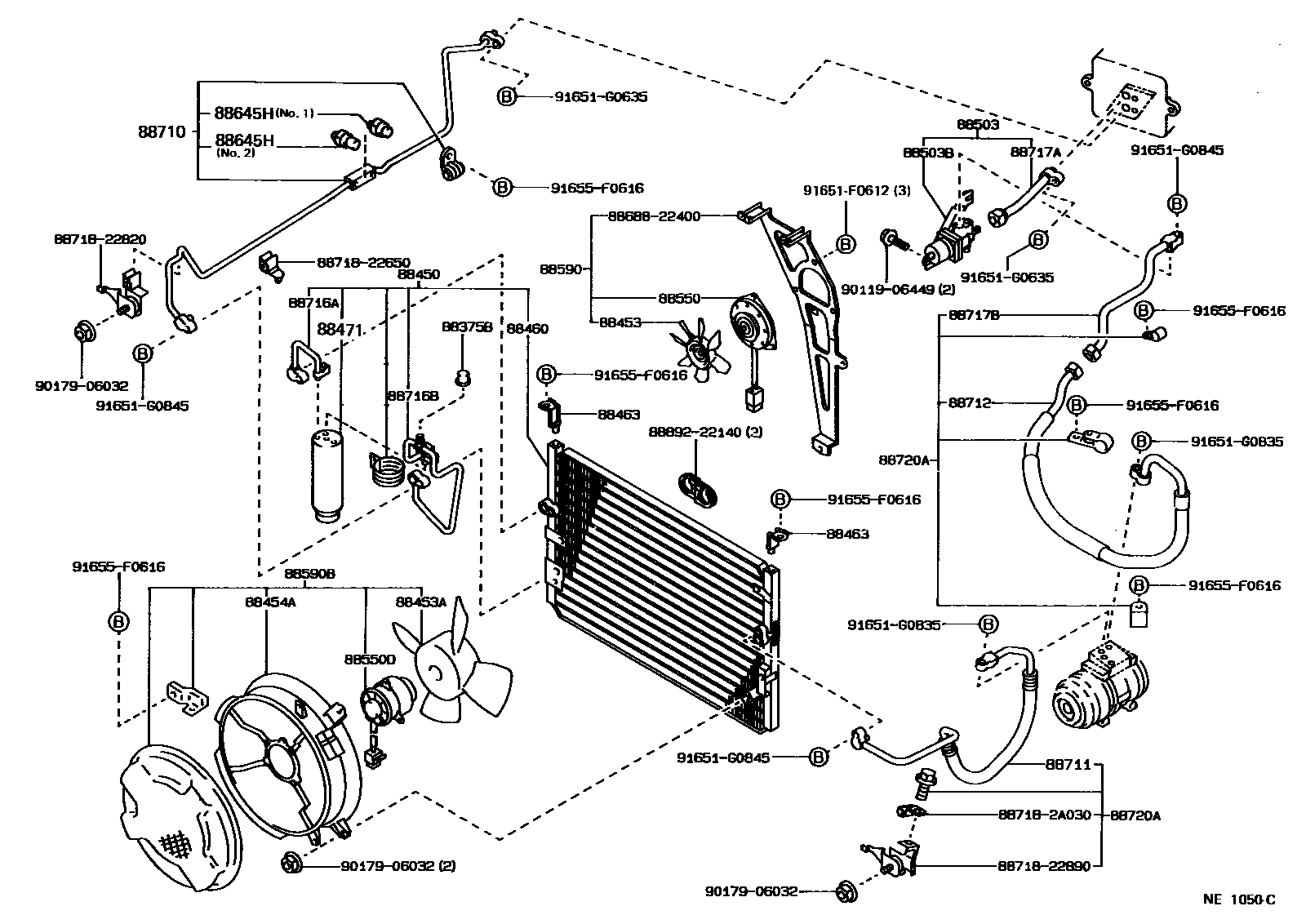

HEATING & AIR CONDITIONING - COOLER PIPING

88375BCAP, SERVICE VALVE, NO.1

main88375-20010iMX83198808-199207

88450CONDENSER ASSY, W/RECEIVER

main88460-22370iMX83198808-198905

sub88460-22371

main88460-22371iMX83198905-199104

sub88460-22450

main88460-22450iMX83199104-199207

88453FAN, COOLING (FOR CONDENSER)

main88453-12040iMX83198808-199207

88453AFAN, COOLING

main88453-20020iMX83198808-199207

88454ASHROUD, FAN

main88454-22070iMX83198808-199207

88460CONDENSER ASSY, COOLER

main88460-22390iMX83198808-199207

88463BRACKET, COOLER CONDENSER, NO.1

main88463-22010iMX83198808-199207

88471TANK, RECEIVER AIR CONDITIONER

main88471-12020iMX83198808-199207

sub88471-12060

88503REGULATOR ASSY, PRESSURE

main88503-22200iMX83198808-199012

sub88503-22201

main88503-22201iMX83199012-199207

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-22210iMX83198808-199012

sub88503-22211

main88503-22211iMX83199012-199207

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-22040iMX83198808-199207

sub88550-22060

88550DMOTOR ASSY, BLOWER

main88550-20030iMX83198808-199207

sub88550-24060

88590BLOWER ASSY, W/SHROUD

main88590-22090iMX83198808-199207

88590BBLOWER ASSY, W/SHROUD

main88590-22040iMX83198808-199207

88645HSWITCH, PRESSURE NO.1

main88645-22050iMX83198808-199207

NO.1

main88645-30281iMX83198808-199207

NO.2

88710TUBE ASSY, AIR CONDITIONER

main88710-22270iMX83198808-199207

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-22440iMX83198808-199101

sub88711-22441

main88711-22441iMX83199101-199207

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-22660iMX83198808-199101

sub88712-22661

main88712-22661iMX83199101-199207

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22840iMX83198808-199207

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22890iMX83198808-199207

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-22350iMX83198808-199207

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-22360iMX83198808-199207

88720AHOSE & ACCESSORY, AIR CONDITIONER

main88720-22040iMX83198808-199101

DISCHARGE

sub88720-22041

main88720-22041iMX83199101-199207

DISCHARGE

main88720-22050iMX83198808-199101

SUCTION

sub88720-22051

main88720-22051iMX83199101-199207

SUCTION

8868822400BRACKET, COOLER DIAPHRAGM

main88688-22400

8871822650PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22650

8871822820PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22820

8871822890PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22890

887182A030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A030

8889222140BRACKET, COOLER EVAPORATOR MOUNTING

main88892-22140

9011906449

main90119-06449

9017906032

main90179-06032

91651F0612

main91651-F0612

91651G0635

main91651-G0635

91651G0835

main91651-G0835

91651G0845

main91651-G0845

91655F0616

main91655-F0616

36 parts on this diagram · 1 diagram in section
