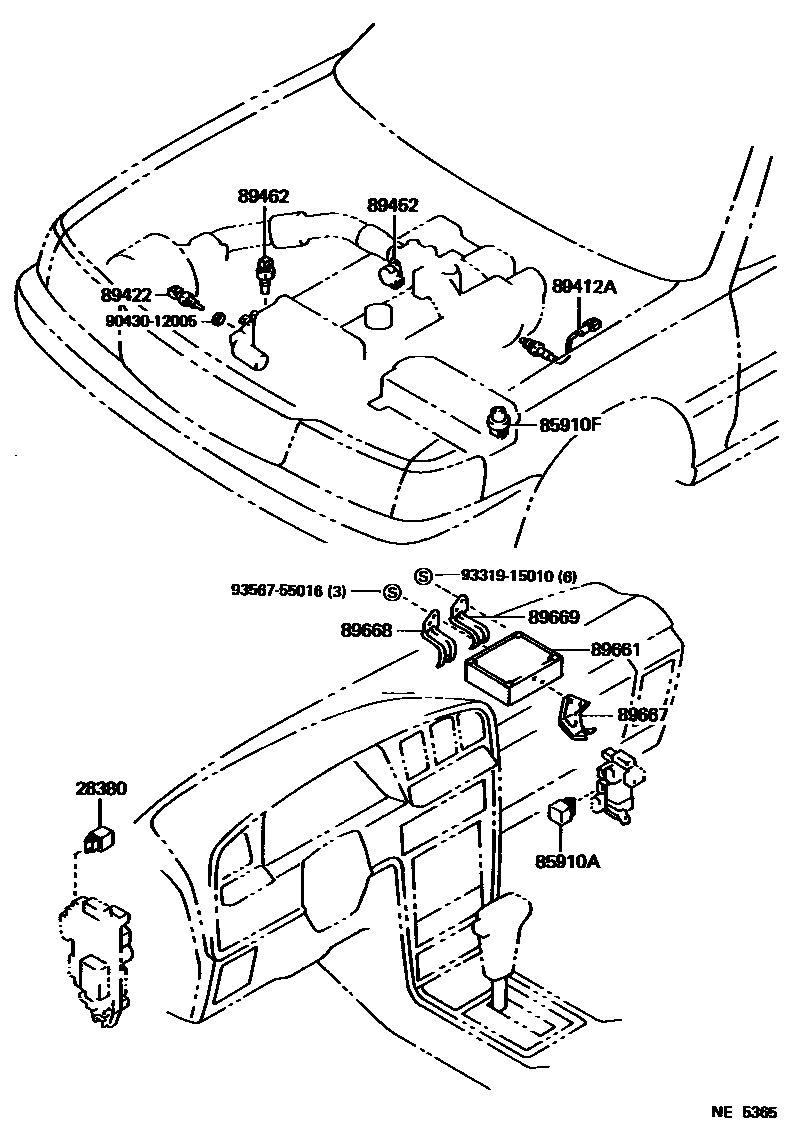

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89412ASENSOR, E.G.R GAS TEMPERATURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
CALIFORNIA SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9043012005
main90430-12005
9331915010
main93319-15010
9356755016
main93567-55016
14 parts on this diagram · 1 diagram in section
