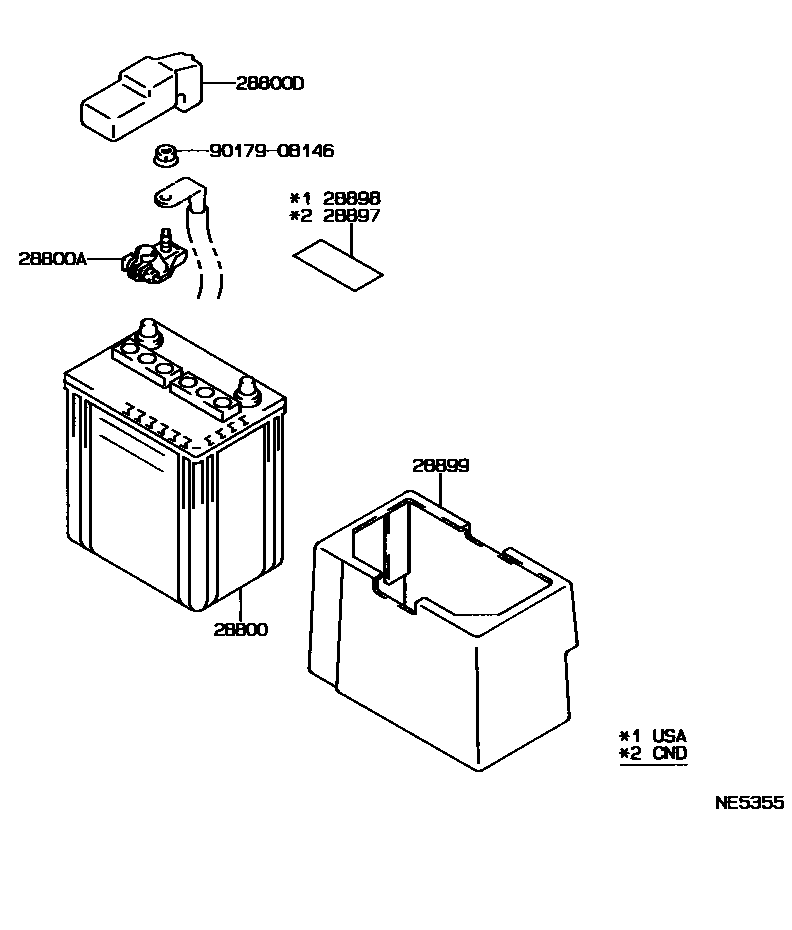

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42130i7MGE..MX83198808-199207

75D31L

sub28800-42010

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i7MGE..MX83198808-199008

SUMITOMO

main90982-05030i7MGE..MX83199008-199207

SUMITIMO

main90982-05035i7MGE..MX83198810-199207

YAZAKI

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i7MGE..MX83198808-199207

28897PLATE, BATTERY CAUTION

main28897-38010i7MGE..MX83..CND198808-199207

28898PLATE, BATTERY

main28898-26010i7MGE..MX83..USA198808-199207

28899INSULATOR, BATTERY

main28899-54010i7MGE..MX83198808-199207

sub28899-35010

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
