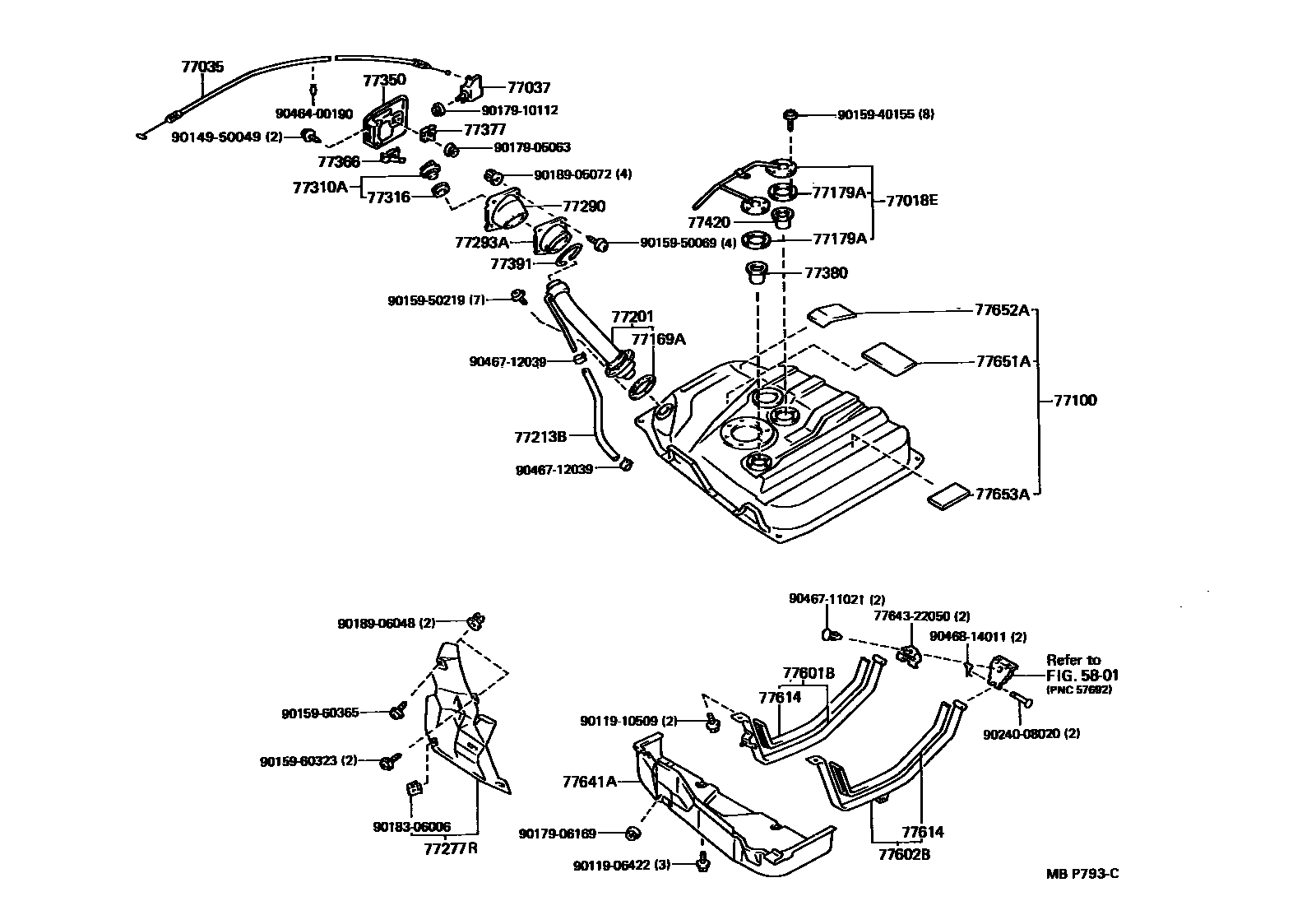

FUEL TANK & TUBE

0001 1 0002 1

5801

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22040iMX83198808-199207

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22180iMX83198808-199207

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-22050iMX83198808

77100TANK ASSY, FUEL

main77001-22380iMX83198808-199207

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iMX83198808-199207

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iMX83198808-199207

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22240iMX83198808-199207

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22080iMX83198808-199207

L=280

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-22070iMX83198808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22040iMX83198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22010iMX83198808

77310ACAP ASSY, FUEL TANK

main77310-12140iMX83198808-199207

77316GASKET, FUEL TANK CAP

main77316-16010iMX83198808-199207

77350LID ASSY, FUEL FILLER OPENING

main77350-22100iMX83198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iMX83198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iMX83198808-198903

main77377-22040iMX83198903

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iMX83198808-199207

77391RING, FUEL INLET BOX

main77391-14020iMX83198811

main77391-16010iMX83198808-198811

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-22010iMX83198808-199207

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-22100iMX83198808-199207

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-22120iMX83198808-199207

77614SEAT, FUEL TANK BAND

main77681-22010iMX83198808-199207

77641APROTECTOR, FUEL TANK, NO.1

main77641-22070iMX83198808-199207

77651ACUSHION, FUEL TANK, NO.1

main77651-22070iMX83198808-199207

77652ACUSHION, FUEL TANK, NO.2

main77652-22060iMX83198808-199207

77653ACUSHION, FUEL TANK, NO.3

main77653-22060iMX83198808-199207

7764322050RETAINER, FUEL TANK PROTECTOR

main77643-22050

9011906422

main90119-06422

9011910509

main90119-10509

9014950049

main90149-50049

9015940155

main90159-40155

9015950069

main90159-50069

9015950219

main90159-50219

9015960323

main90159-60323

9015960365

main90159-60365

9017905063

main90179-05063

9017906169

main90179-06169

9017910112

main90179-10112

9018306006

main90183-06006

9018905072

main90189-05072

9018906048

main90189-06048

9024008020

main90240-08020

9046400190

main90464-00190

9046711021

main90467-11021

9046712039

main90467-12039

9046814011

main90468-14011

47 parts on this diagram · 2 diagrams in section
