REAR DOOR LOCK & HANDLE

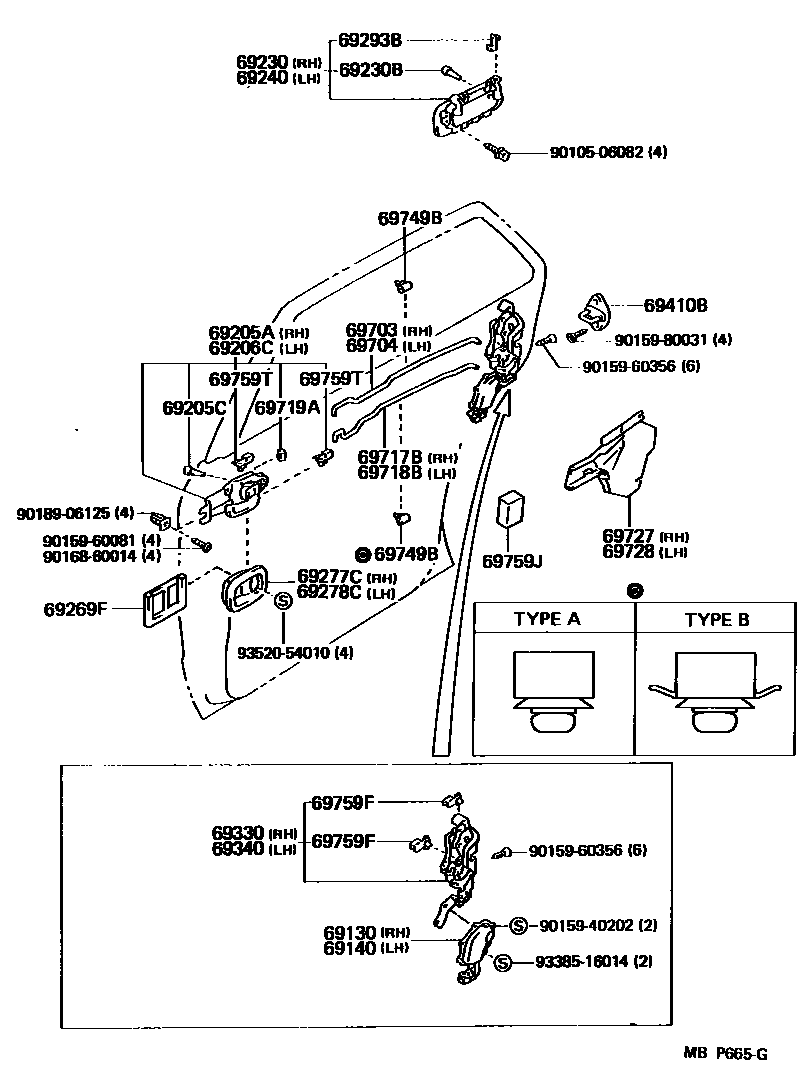

Parts diagram
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-20090i199008-199207
main69130-20100i199008-199207
main69130-22010i198808-199008
sub69130-20090
main69130-22020i198808-199008
sub69130-20100
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-20090i199008-199207
main69140-22010i198808-199008
sub69140-20090
main69140-22020i198808-199008
sub69140-20100
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-22040-02i198808-199008
NEW MAROON,TRIM3#
main69205-22040-03i198808-199008
MEDIUM GRAY,TRIM1#
main69205-22040-04i198808-199008
DARK BLUE,TRIM8#
main69205-22040-06i198808-199008
SABLE,TRIM4#
main69205-22050-02i199008-199011
NEW MAROON,TRIM3#
sub69205-22060
main69205-22050-03i199008-199011
MEDIUM GRAY,TRIM1#
sub69205-22060
main69205-22050-04i199008-199011
DARK BLUE,TRIM8#
sub69205-22060
main69205-22050-06i199008-199011
SABLE,TRIM4#
sub69205-22060
main69205-22060-02i199011-199207
NEW MAROON,TRIM3#
sub69205-22060
main69205-22060-03i199011-199207
MEDIUM GRAY,TRIM1#
sub69205-22060
main69205-22060-04i199011-199207
DARK BLUE,TRIM8#
sub69205-22060
main69205-22060-06i199011-199207
SABLE,TRIM4#
sub69205-22060
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04018i198808-199008
main90541-04018i198809
OD=8.5
main90541-04020i198809
OD=12
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-22040-02i198808-199008
NEW MAROON,TRIM3#
main69206-22040-03i198808-199008
MEDIUM GRAY,TRIM1#
main69206-22040-04i198808-199008
DARK BLUE,TRIM8#
main69206-22040-06i198808-199008
SABLE,TRIM4#
main69206-22050-02i199008-199011
NEW MAROON,TRIM3#
sub69206-22060
main69206-22050-03i199008-199011
MEDIUM GRAY,TRIM1#
sub69206-22060
main69206-22050-04i199008-199011
DARK BLUE,TRIM8#
sub69206-22060
main69206-22050-06i199008-199011
SABLE,TRIM4#
sub69206-22060
main69206-22060-02i199011-199207
NEW MAROON,TRIM3#
sub69206-22060
main69206-22060-03i199011-199207
MEDIUM GRAY,TRIM1#
sub69206-22060
main69206-22060-04i199011-199207
DARK BLUE,TRIM8#
sub69206-22060
main69206-22060-06i199011-199207
SABLE,TRIM4#
sub69206-22060
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-22070-01i198808-199008
BLACK,202
main69230-22070-02i198808-199008
DK. RED MICA,3H3
main69230-22070-03i198808-199207
SUPER SILVER 3 M.,176
main69230-22070-04i198808-199008
BLUE MICA,8E3
main69230-22070-06i198808-198908
SABLE M. M.,4K2
main69230-22070-08i198808-199207
WHITE PEARL MICA,049
main69230-22070-09i199008-199207
DARK MAUVE MICA,3K1
main69230-22070-11i199008-199207
BLACK M,205
main69230-22070-12i198808-199008
RED MICA,3H4
main69230-22070-13i198808-199008
MIST GRAY M.,177
main69230-22070-14i198808-199207
LIGHT BLUE M. M.,8G2
main69230-22070-16i198908-199008
DK. BROWN M. M.,4L4
main69230-22070-18i198808-199207
SUPER WHITE 4,050
main69230-22070-22i199008-199207
RED M.M,3J9
main69230-22070-23i198808-199008
GRAY M. M.,170
main69230-22070-24i199008-199207
BLUE M,869
main69230-22070-26i199008-199207
BEIGE M.M,4J1
main69230-22070-43i199008-199207
DARK BLUEISH GRAY,183
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
main90541-04018i198808-199207
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-22070-01i198808-199008
BLACK,202
main69240-22070-02i198808-199008
DK. RED MICA,3H3
main69240-22070-03i198808-199207
SUPER SILVER 3 M.,176
main69240-22070-04i198808-199008
BLUE MICA,8E3
main69240-22070-06i198808-198908
SABLE M. M.,4K2
main69240-22070-08i198808-199207
WHITE PEARL MICA,049
main69240-22070-09i199008-199207
DARK MAUVE MICA,3K1
main69240-22070-11i199008-199207
BLACK M,205
main69240-22070-12i198808-199008
RED MICA,3H4
main69240-22070-13i198808-199008
MIST GRAY M.,177
main69240-22070-14i198808-199207
LIGHT BLUE M. M.,8G2
main69240-22070-16i198908-199008
DK. BROWN M. M.,4L4
main69240-22070-18i198808-199207
SUPER WHITE 4,050
main69240-22070-22i199008-199207
RED M.M,3J9
main69240-22070-23i198808-199008
GRAY M. M.,170
main69240-22070-24i199008-199207
BLUE M,869
main69240-22070-26i199008-199207
BEIGE M.M,4J1
main69240-22070-43i199008-199207
DARK BLUEISH GRAY,183
69269FSEAL, REAR DOOR INSIDE HANDLE
main69269-22050i198906
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
main69297-22030-02i198808-199008
NEW MAROON,TRIM3#
main69297-22030-03i198808-199008
MEDIUM GRAY,TRIM1#
main69297-22030-04i198808-199008
DARK BLUE,TRIM8#
main69297-22030-06i198808-199008
SABLE,TRIM4#
main69297-22050-02i199008-199207
NEW MAROON,TRIM3#
sub69297-22050
main69297-22050-03i199008-199207
MEDIUM GRAY,TRIM1#
sub69297-22050
main69297-22050-04i199008-199207
DARK BLUE,TRIM8#
sub69297-22050
main69297-22050-06i199008-199207
SABLE,TRIM4#
sub69297-22050
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
main69298-22030-02i198808-199008
NEW MAROON,TRIM3#
main69298-22030-03i198808-199008
MEDIUM GRAY,TRIM1#
main69298-22030-04i198808-199008
DARK BLUE,TRIM8#
main69298-22030-06i198808-199008
SABLE,TRIM4#
main69298-22050-02i199008-199207
NEW MAROON,TRIM3#
sub69298-22050
main69298-22050-03i199008-199207
MEDIUM GRAY,TRIM1#
sub69298-22050
main69298-22050-04i199008-199207
DARK BLUE,TRIM8#
sub69298-22050
main69298-22050-06i199008-199207
SABLE,TRIM4#
sub69298-22050
69293BSNAP, REAR DOOR OUTSIDE HANDLE
main69293-12050i198808-199207
RH
main69293-12060i198808-199207
LH
69330LOCK ASSY, REAR DOOR, RH
main69330-22290i198808-199008
main69330-22291i199008-199207
69340LOCK ASSY, REAR DOOR, LH
main69340-22300i198808-199008
main69340-22301i199008-199207
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-20070i198808
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
main69770-22060i198808-199008
main69770-22070i199008-199207
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
main69780-22060i198808-199008
main69780-22070i199008-199207
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-22070i198808-199008
main69713-22080i199008
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-22070i198808-199008
main69714-22080i199008
69719ACUSHION, DOOR LOCK CONTROL
main69719-22010i198808-199008
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
main69727-22020i198808-199207
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
main69728-22020i198808-199207
69749BCLAMP, REAR DOOR LOCK LINK
main69749-20030i198808-199008
main69749-20030i199008
TYPE A
main69749-50010i199008
TYPE B
69759FSNAP, REAR DOOR LOCK CONTROL LINK
main69759-24050i198808-199207
GREEN
main69759-24060i198808-199207
GRAY
69759JSILENCER, DOOR LOCK LINK
main69759-12060i199008-199207
main69759-20120i198808-199006
69759TSNAP, REAR DOOR INSIDE HANDLE
main69759-14050i198808
LH
main69759-24070i198808
RH
9010506082
main90105-06082
9015940202
main90159-40202
9015960081
main90159-60081
9015960356
main90159-60356
9015980031
main90159-80031
9016860014
main90168-60014
9018906125
main90189-06125
9338516014
main93385-16014
9352054010
main93520-54010

35 parts on this diagram · 1 diagram in section
