INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

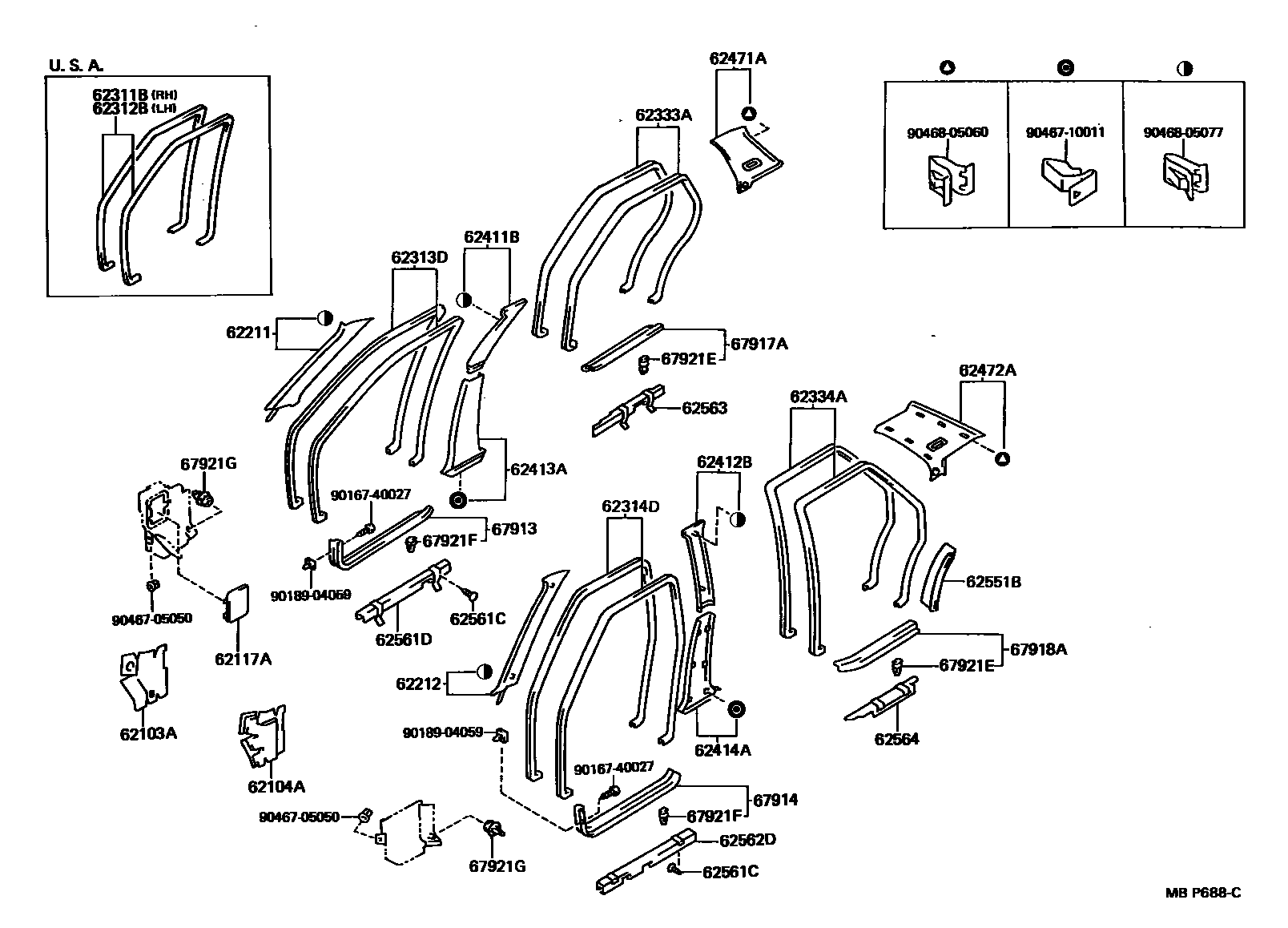

Parts diagram
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-22040i198808-199207
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-22040i198808-199207
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-22080-02i198808-199008
NEW MAROON,TRIM3#
main62117-22080-03i198808-199008
MEDIUM GRAY,TRIM1#
main62117-22080-04i198808-199008
DARK BLUE,TRIM8#
main62117-22080-06i198808-199008
SABLE,TRIM4#
main62117-22100-02i199008-199207
NEW MAROON,TRIM3#
main62117-22100-03i199008-199207
MEDIUM GRAY,TRIM1#
main62117-22100-04i199008-199207
DARK BLUE,TRIM8#
main62117-22100-06i199008-199207
SABLE,TRIM4#
62211GARNISH, FRONT PILLAR, RH
main62210-22030-02i198808-199207
NEW MAROON,TRIM3#
main62210-22030-03i198808-199207
MEDIUM GRAY,TRIM1#
main62210-22030-04i198808-199207
DARK BLUE,TRIM8#
main62210-22030-06i198808-199207
SABLE,TRIM4#
main62210-22040-02i198808-199207
NEW MAROON,TRIM3#
main62210-22040-03i199008-199207
MEDIUM GARY,TRIM1#
main62210-22040-04i198808-199008
DARK BLUE,TRIM8#
main62210-22040-06i198808-199207
SABLE,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62220-22030-02i198808-199207
NEW MAROON,TRIM3#
main62220-22030-03i198808-199207
MEDIUM GRAY,TRIM1#
main62220-22030-04i198808-199207
DARK BLUE,TRIM8#
main62220-22030-06i198808-199207
SABLE,TRIM4#
main62220-22040-02i198808-199207
NEW MAROON,TRIM3#
main62220-22040-03i199008-199207
MEDIUM GARY,TRIM1#
main62220-22040-04i198808-199008
DARK BLUE,TRIM8#
main62220-22040-06i198808-199207
SABLE,TRIM4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-22050-02i198808-199207
NEW MAROON,TRIM3#
main62311-22050-03i198808-199207
MEDIUM GRAY,TRIM1#
main62311-22050-04i198808-199207
DARK BLUE,TRIM8#
main62311-22050-06i198808-199207
SABLE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-22050-02i198808-199207
NEW MAROON,TRIM3#
main62312-22050-03i198808-199207
MEDIUM GRAY,TRIM1#
main62312-22050-04i198808-199207
DARK BLUE,TRIM8#
main62312-22050-06i198808-199207
SABLE,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-22150-02i198808-199207
NEW MAROON,TRIM3#
main62313-22150-03i199008-199207
MEDIUM GRAY,TRIM1#
main62313-22150-04i198808-199008
DARK BLUE,TRIM8#
main62313-22150-06i198808-199207
SABLE,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
main62314-22030-02i198808-199207
NEW MAROON,TRIM3#
main62314-22030-03i199008-199207
MEDIUM GRAY,TRIM1#
main62314-22030-04i198808-199008
DARK BLUE,TRIM8#
main62314-22030-06i198808-199207
SABLE,TRIM4#
62333ATRIM, REAR DOOR OPENING, RH
main62333-22100-02i198808-199207
NEW MAROON,TRIM3#
main62333-22100-03i198808-199207
MEDIUM GRAY,TRIM1#
main62333-22100-04i198808-199207
DARK BLUE,TRIM8#
main62333-22100-06i198808-199207
SABLE,TRIM4#
62334ATRIM, REAR DOOR OPENING, LH
main62334-22020-02i198808-199207
NEW MAROON,TRIM3#
main62334-22020-03i198808-199207
MEDIUM GRAY,TRIM1#
main62334-22020-04i198808-199207
DARK BLUE,TRIM8#
main62334-22020-06i198808-199207
SABLE,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-22030-02i198808-199207
NEW MAROON,TRIM3#
main62410-22030-03i198808-199207
MEDIUM GRAY,TRIM1#
main62410-22030-04i198808-199207
DARK BLUE,TRIM8#
main62410-22030-06i198808-199207
SABLE,TRIM4#
main62411-22260-02i198808-199207
NEW MAROON,TRIM3#
main62411-22260-03i199008-199207
MEDIUM GRAY,TRIM1#
main62411-22260-04i198808-199008
DARK BLUE,TRIM8#
main62411-22260-06i198808-199207
SABLE,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-22280-02i198808-199207
NEW MAROON,TRIM3#
main62412-22280-03i199008-199207
MEDIUM GRAY,TRIM1#
main62412-22280-04i198808-199008
DARK BLUE,TRIM8#
main62412-22280-06i198808-199207
SABLE,TRIM4#
main62420-22030-02i198808-199207
NEW MAROON,TRIM3#
main62420-22030-03i198808-199207
MEDIUM GRAY,TRIM1#
main62420-22030-04i198808-199207
DARK BLUE,TRIM8#
main62420-22030-06i198808-199207
SABLE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-22070-02i198808-199207
NEW MAROON,TRIM3#
main62413-22070-03i199008-199207
MEDIUM GRAY,TRIM1#
main62413-22070-04i198808-199008
DARK BLUE,TRIM8#
main62413-22070-06i198808-199207
SABLE,TRIM4#
main62413-22090-02i198808-199207
NEW MAROON,TRIM3#
main62413-22090-03i198808-199207
MEDIUM GRAY,TRIM1#
main62413-22090-04i198808-199207
DARK BLUE,TRIM8#
main62413-22090-06i198808-199207
SABLE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-22070-02i198808-199207
NEW MAROON,TRIM3#
main62414-22070-03i199008-199207
MEDIUM GRAY,TRIM1#
main62414-22070-04i198808-199008
DARK BLUE,TRIM8#
main62414-22070-06i198808-199207
SABLE,TRIM4#
main62414-22090-02i198808-199207
NEW MAROON,TRIM3#
main62414-22090-03i198808-199207
MEDIUM GRAY,TRIM1#
main62414-22090-04i198808-199207
DARK BLUE,TRIM8#
main62414-22090-06i198808-199207
SABLE,TRIM4#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-22070-02i198808-199008
NEW MAROON,TRIM3#
main62470-22070-03i198808-199008
MEDIUM GRAY,TRIM1#
main62470-22070-04i198808-199008
LIGHT BLUE,TRIM8#
main62470-22070-06i198908-199008
LIGHT SABLE,TRIM3#
main62470-22070-06i198808-198908
LIGHT SABLE,TRIM3#,4#
main62470-22070-12i199008-199110
NEW MAROON,TRIM3#
main62470-22070-13i199008-199110
MEDIUM GARY,TRIM1#
main62470-22070-14i198808-199008
DARK BLUE,TRIM8#
main62470-22070-16i198808-199008
SABLE,TRIM4#
main62470-22070-22i199008-199207
NEW MAROON,TRIM3#
main62470-22070-23i199008-199207
MEDIUM GRAY,TRIM1#
main62470-22070-24i199008-199110
DARK BLUE,TRIM8#
main62470-22070-26i199008-199207
SABLE,TRIM4#
main62470-22070-36i199008-199110
SABLE,TRIM4#
main62470-22070-B0i199110-199207
MEDIUM GRAY,TRIM1#
main62470-22070-D0i199110-199207
NEW MAROON,TRIM3#
main62470-22070-E0i199110-199207
SABLE,TRIM4#
main62470-22070-J0i199110-199207
DARK BLUE,TRIM8#
62472AGARNISH, ROOF SIDE, INNER LH
main62480-22070-02i198808-199008
NEW MAROON,TRIM3#
main62480-22070-03i198808-199008
MEDIUM GRAY,TRIM1#
main62480-22070-04i198808-199008
LIGHT BLUE,TRIM8#
main62480-22070-06i198908-199008
LIGHT SABLE,TRIM3#
main62480-22070-06i198808-198908
LIGHT SABLE,TRIM3#,4#
main62480-22070-12i199008-199110
NEW MAROON,TRIM3#
main62480-22070-13i199008-199110
MEDIUM GARY,TRIM1#
main62480-22070-14i198808-199008
DARK BLUE,TRIM8#
main62480-22070-16i198808-199008
SABLE,TRIM4#
main62480-22070-22i199008-199207
NEW MAROON,TRIM3#
main62480-22070-23i199008-199207
MEDIUM GRAY,TRIM1#
main62480-22070-24i199008-199110
DARK BLUE,TRIM8#
main62480-22070-26i199008-199207
SABLE,TRIM4#
main62480-22070-36i199008-199110
SABLE,TRIM4#
main62480-22070-B0i199110-199207
MEDIUM GRAY,TRIM1#
main62480-22070-D0i199110-199207
NEW MAROON,TRIM3#
main62480-22070-E0i199110-199207
SABLE,TRIM4#
main62480-22070-J0i199110-199207
DARK BLUE,TRIM8#
62551BGARNISH, REAR SEAT SIDE
main62551-22040i198808-199207
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-08056-01i198908-199008
BLACK,TRIM3#,8#
main90467-08056-01i198808-198908
BLACK,TRIM3#,4#,8#
main90467-08056-01i198808-199207
BLACK,TRIM1#,3#,4#,8#
main90467-08056-01i199008-199207
BLACK,TRIM1#,3#,4#
62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH
main62561-22050i198808-199111
main62561-22060i198808-199207
62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH
main62562-22050i198808-199111
main62562-22060i198808-199207
62563PROTECTOR, ROCKER PANEL, INNER REAR RH
main62563-22030i198808-199207
62564PROTECTOR, ROCKER PANEL, INNER REAR LH
main62564-22020i198808-199207
67913PLATE, FRONT DOOR SCUFF, RH
main67913-22080-02i198808-199207
NEW MAROON,TRIM3#
main67913-22080-03i198808-199207
MEDIUM GRAY,TRIM1#
main67913-22080-04i198808-199207
DARK BLUE,TRIM8#
main67913-22080-06i198808-199207
SABLE,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-22060-02i198808-199207
NEW MAROON,TRIM3#
main67914-22060-03i198808-199207
MEDIUM GRAY,TRIM1#
main67914-22060-04i198808-199207
DARK BLUE,TRIM8#
main67914-22060-06i198808-199207
SABLE,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67917-22070-02i198808-199207
NEW MAROON,TRIM3#
main67917-22070-03i198808-199207
MEDIUM GRAY,TRIM1#
main67917-22070-04i198808-199207
DARK BLUE,TRIM8#
main67917-22070-06i198808-199207
SABLE,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67918-22070-02i198808-199207
NEW MAROON,TRIM3#
main67918-22070-03i198808-199207
MEDIUM GRAY,TRIM1#
main67918-22070-04i198808-199207
DARK BLUE,TRIM8#
main67918-22070-06i198808-199207
SABLE,TRIM4#
67921ERETAINER, REAR DOOR SCUFF PLATE
main67921-22020i198808-199207
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-22010i198808-199207
FRONT
main67921-22020i198808-199207
REAR
67921GRETAINER, FRONT DOOR SCUFF PLATE
main67921-22020i198808-199207
9016740027
9018904059
9046705050
9046710011
9046805060
9046805077

36 parts on this diagram · 1 diagram in section
