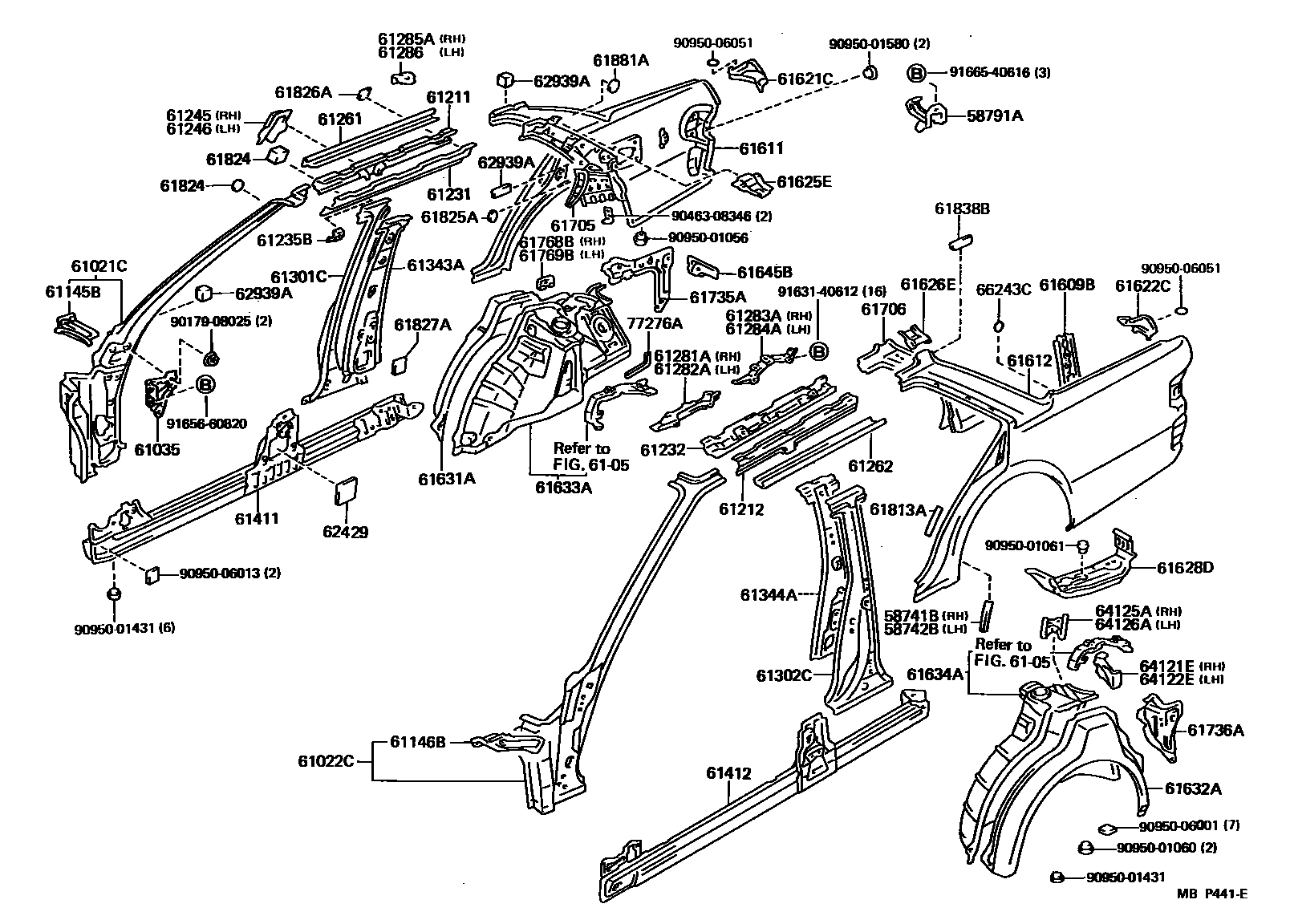

SIDE MEMBER

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12060iMX83198808-199207

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iMX83198808-199207

58791ACARRIER, JACK

main58791-22020iMX83198808

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-22260iMX83..USA198808-199207

main61021-22270iMX83..CND198808-199207

main61021-22290iMX83..USA198808-199207

W(SUN ROOF)

sub61021-22260

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-22250iMX83..USA198808-199207

main61022-22260iMX83..CND198808-199207

main61022-22280iMX83..USA198808-199207

W(SUN ROOF)

sub61022-22250

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-22080iMX83198808-199207

6105

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22060iMX83198808-199207

sub61145-43010

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22060iMX83198808-199207

61211RAIL, ROOF SIDE, OUTER RH

main61211-22100iMX83198808-199207

61212RAIL, ROOF SIDE, OUTER LH

main61212-22100iMX83198808-199207

61231RAIL, ROOF SIDE, INNER RH

main61231-22210iMX83..USA198808-199207

main61231-22220iMX83..CND198808-199207

61232RAIL, ROOF SIDE, INNER LH

main61232-22190iMX83..USA198808-199207

main61232-22200iMX83..CND198808-199207

61235BBRACKET, ASSIST GRIP

main61235-22050iMX83..USA198808-199207

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-22010iMX83198808-199207

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-22010iMX83198808-199207

61261CHANNEL, ROOF DRIP, RH

main61207-22010iMX83198808-199207

61262CHANNEL, ROOF DRIP, LH

main61208-22010iMX83198808-199207

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-22030iMX83198808-199207

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-22010iMX83198808-199207

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-22030iMX83198808-199207

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-22030iMX83198808-199207

61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4

main61285-22010iMX83198808-199207

61286BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.5

main61285-22010iMX83198808-199207

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-22910iMX83198808-199207

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-22910iMX83198808-199207

61343APILLAR, CENTER BODY, INNER RH

main61343-22910iMX83..USA198808-199207

main61343-22911iMX83..CND198808-199207

61344APILLAR, CENTER BODY, INNER LH

main61344-22910iMX83..USA198808-199207

main61344-22911iMX83..CND198808-199207

61411PANEL, ROCKER, OUTER RH

main61401-22050iMX83..CND198808

main61401-22060iMX83..USA198808-199207

61412PANEL, ROCKER, OUTER LH

main61402-22050iMX83..CND198808

main61402-22060iMX83..USA198808-199207

61609BBRACE SUB-ASSY, QUARTER PANEL

main61609-22020iMX83198808-199008

sub61609-22900

main61609-22900iMX83199008

61611PANEL, QUARTER, RH

main61601-22960iMX83198808-198810

sub61601-22965

main61601-22965iMX83198810-199008

sub61601-22970

main61601-22970iMX83199008-199207

61612PANEL, QUARTER, LH

main61602-22934iMX83198808-199008

sub61602-22940

main61602-22940iMX83199008-199207

sub61602-22939

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-22090iMX83198808-199207

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-22090iMX83198808-199207

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-22010iMX83198808-199207

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-22010iMX83198808-199207

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-22030iMX83198808-199207

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-22907iMX83198808-199207

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22110iMX83198808-199207

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-22240iMX83198808-199207

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-22190iMX83198808-199207

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-22030iMX83198808-199207

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22140iMX83198808-198810

main61705-22141iMX83198810

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22140iMX83198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-22900iMX83198808-199207

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-22900iMX83198808-199207

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-22030iMX83199008-199207

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-22020iMX83199008-199207

61813APLATE, DUSTPROOF, NO.1 RH

main61813-22040iMX83198808-199008

61824PLATE, NOISE CONTROL, NO.1

main61824-22060iMX83198808

OD=50,T=2.0

main61824-22080iMX83198808-199008

50X50,T=50

sub62939-23010

main62939-23010iMX83199008

50 X 50,T=50

sub61824-12110

61825APLATE, NOISE CONTROL, NO.2

main61825-22030iMX83198808

sub61826-22010

61826APLATE, NOISE CONTROL, NO.3

main61826-22020iMX83198808

61827APLATE, NOISE CONTROL, NO.4

main61827-22030iMX83198808

61838BPLATE, NOISE CONTROL, NO.5

main61838-22020iMX83198808

61881APLATE, DUST PROOF, NO.8

main61881-22010iMX83198808

62429COVER, CENTER PILLAR SERVICE HOLE

main62429-22020iMX83198808

62939ASILENCER, QUARTER VENT

main62939-22050iMX83198808-199008

70X175,T=30

main62939-22050iMX83199008

70 X 175,T=30

main62939-22070iMX83198808-199008

sub62939-23010

main62939-23010iMX83199008

70 X 70,T=70

sub61824-12110

64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-22050iMX83198808-199207

64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-22060iMX83198808-199207

64125ABRACKET, UPPER BACK PANEL, RH

main64125-22020iMX83198808-199207

64126ABRACKET, UPPER BACK PANEL, LH

main64126-22010iMX83198808-199207

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010iMX83199009-199205

main90950-06051iMX83199205

77276APROTECTOR, FUEL HOSE

main77276-23010iMX83198808

9017908025

main90179-08025

9046308346

main90463-08346

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001431

main90950-01431

9095001580

main90950-01580

9095006001

main90950-06001

9095006013

main90950-06013

9095006051

main90950-06051

9163140612

main91631-40612

9165660820

main91656-60820

9166540616

main91665-40616

77 parts on this diagram · 1 diagram in section
