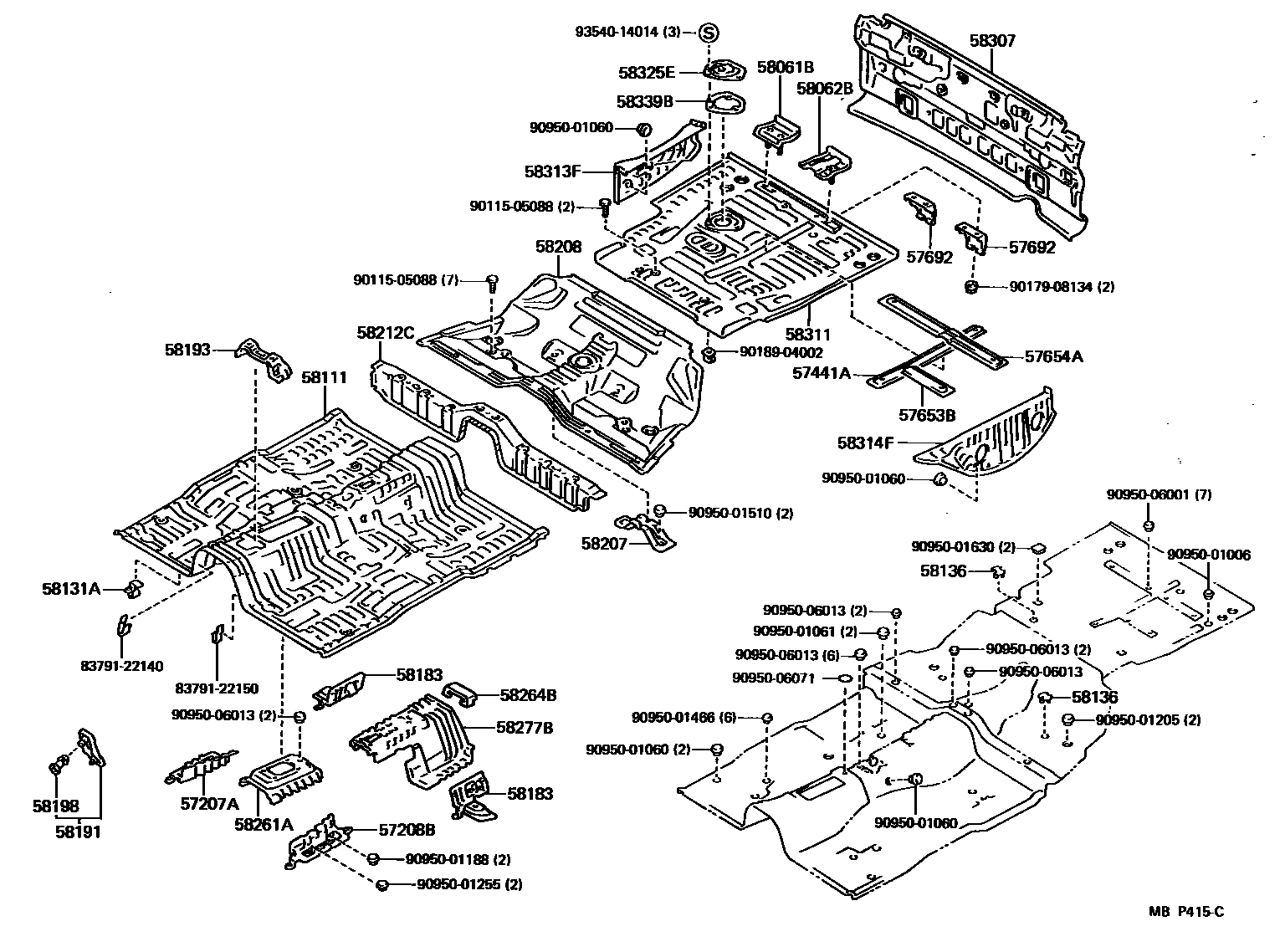

FLOOR PAN & LOWER BACK PANEL

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-22030iMX83198808-199207

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-22040iMX83198808-199207

57441AMEMBER, REAR FLOOR CENTER, NO.1

main57441-22020iMX83198808

57653BMEMBER, REAR FLOOR CROSS, FRONT LH

main57653-22080iMX83198808

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-22040iMX83198808

57692BRACKET, FUEL TANK MOUNTING, REAR CENTER

main57692-22020iMX83198808-199207

58061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, RH

main58061-22010iMX83198808

58062BBRACKET SUB-ASSY, FUEL TANK MOUNTING, LH

main58062-22020iMX83198808

58111PAN, FRONT FLOOR

main58111-22150iMX83198808-199207

sub58111-43020

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22040iMX83198808-199207

58136COVER, FRONT FLOOR HOLE

main58136-24010iMX83198808-199207

FOR REAR FLOOR PAN

sub90950-06002

main58136-24010iMX83198808

FOR CENTER FLOOR PAN

sub90950-06002

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-22030iMX83198808-199207

RH

main58184-22030iMX83198808-199207

LH

58191FOOTREST, FRONT FLOOR

main58192-22030iMX83198808-199207

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-22050iMX83198808-199207

58198CLIP, FOOTREST

main58198-22050iMX83198808-199207

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-22050iMX83198808

58208PAN, CENTER FLOOR

main58211-22050iMX83198808

58212CPAN, CENTER FLOOR, FRONT

main58212-22060iMX83198808-199207

58261ACOVER, TRANSMISSION

main58261-22220iMX83198808-199207

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-22050iMX83198808-199207

58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

main58277-22080iMX83198808-199207

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22500iMX83198808-199207

58311PAN, REAR FLOOR

main58311-22120iMX83198808-199008

sub58311-22121

sub90950-06060

main58311-22121iMX83199008

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-22040iMX83198808

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-22100iMX83198808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-22040iMX83198808-199207

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-22030iMX83198808-199207

8379122140

main83791-22140

8379122150

main83791-22150

9011505088

main90115-05088

9017908134

main90179-08134

9018904002

main90189-04002

9095001006

main90950-01006

9095001060

main90950-01060

9095001061

main90950-01061

9095001188

main90950-01188

9095001205

main90950-01205

9095001255

main90950-01255

9095001466

main90950-01466

9095001510

main90950-01510

9095001630

main90950-01630

9095006001

main90950-06001

9095006013

main90950-06013

9095006071

main90950-06071

9354014014

main93540-14014

45 parts on this diagram · 1 diagram in section
