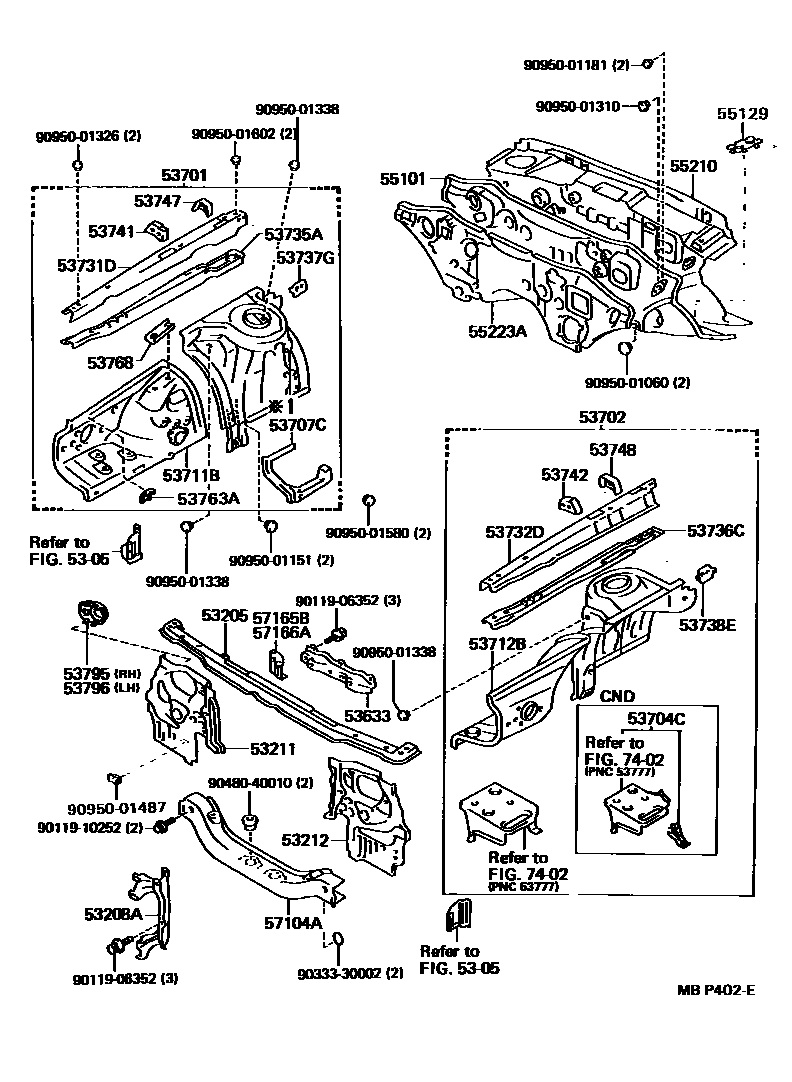

FRONT FENDER APRON & DASH PANEL
5305
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
sub53208-22130
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53633SHIELD, HOOD LOCK CONTROL CABLE
53701APRON SUB-ASSY, FRONT FENDER, RH
W(*66)
53704CSUPPORT SUB-ASSY, BATTERY, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738EPLATE, FRONT SPRING SUPPORT, LH
53741PLATE, FRONT FENDER APRON WIND GUIDE, RH
53742PLATE, FRONT FENDER APRON WIND GUIDE, LH
53747PLATE, AIR SEALED, RH
53748PLATE, AIR SEALED, LH
53763ABRACKET, AIR CLEANER INLET MOUNTING
sub53763-43030
53768PLATE, IGNITION COIL MOUNTING
53795COVER, HEADLAMP WIRE HARNESS HOLE, RH
53796COVER, HEADLAMP WIRE HARNESS HOLE, LH
55101PANEL SUB-ASSY, DASH
55129COVER, DASH PANEL HOLE
55210INSULATOR ASSY, DASH PANEL
sub55210-22230
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH
57166AGUSSET, FLOOR MEMBER, LH
7402
9011906352
main90119-06352
9011910252
main90119-10252
9033330002
main90333-30002
9048040010
main90480-40010
9095001060
main90950-01060
9095001151
main90950-01151
9095001181
main90950-01181
9095001310
main90950-01310
9095001326
main90950-01326
9095001338
main90950-01338
9095001487
main90950-01487
9095001580
main90950-01580
9095001602
main90950-01602
47 parts on this diagram · 1 diagram in section
