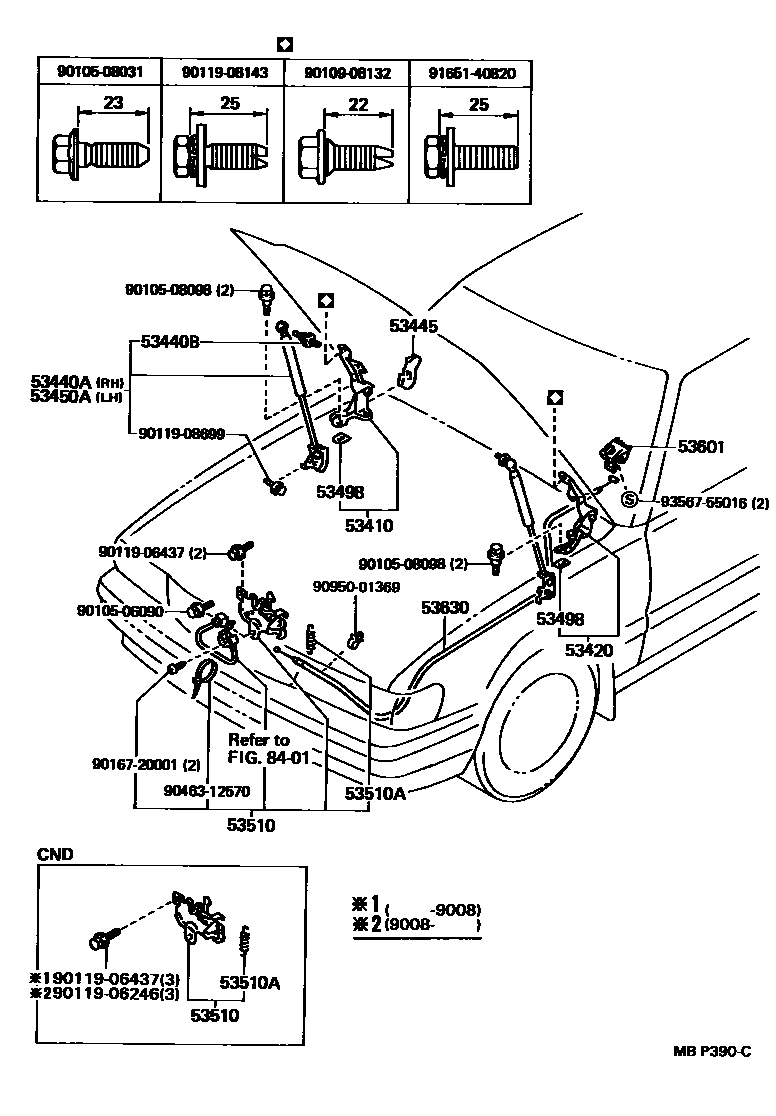

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22080iMX83198808

53420HINGE ASSY, HOOD, LH

main53420-22080iMX83198808

53440ASUPPORT ASSY, HOOD, RH

main53440-29046iMX83198808

53440BBOLT, HOOD SUPPORT, NO.1

main68961-22020iMX83198808

53445COVER, HOOD HINGE, RH

main53445-22010iMX83198808-199207

53450ASUPPORT ASSY, HOOD, LH

main53450-29046iMX83198808

53498PAD, HOOD HINGE, NO.2

main53498-20010iMX83198808-199008

sub53498-12011

53510LOCK ASSY, HOOD

main53510-22300iMX83..CND198808-199207

main53510-22310iMX83..USA198808-199207

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iMX83198808-199207

WD=0.9,CW=26.5,WD=0.9

main90506-18061iMX83198808-199207

WD=1.8,CW=18,CW=18,WD=1.8

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-10iMX83..CND198808-199008

DARK BLUE,TRIM8#

sub53601-20060

main53601-20060-33iMX83..CND199008-199207

MEDIUM GRAY,TRIM1#

sub53601-20060

main53601-20060-36iMX83..CND198808-199207

SABLE,TRIM4#

sub53601-20060

main53601-20060-42iMX83..CND198808-199207

NEW MAROON,TRIM3#

sub53601-20060

main53601-22010-06iMX83..USA198808-199207

SABLE,TRIM4#

sub53601-22010

main53601-22010-13iMX83..USA198808-199207

MEDIUM GRAY,TRIM1#

sub53601-22010

main53601-22010-14iMX83..USA198808-199207

DARK BLUE,TRIM8#

sub53601-22010

main53601-22010-22iMX83..USA198808-199207

NEW MAROON,TRIM3#

sub53601-22010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22170iMX83198808-199207

8401

9010506090

main90105-06090

9010508031

main90105-08031

9010508098

main90105-08098

9010908132

main90109-08132

9011906246

main90119-06246

9011906437

main90119-06437

9011908143

main90119-08143

9011908699

main90119-08699

9016720001

main90167-20001

9046312570

main90463-12570

9095001369

main90950-01369

9165140820

main91651-40820

9356755016

main93567-55016

25 parts on this diagram · 1 diagram in section
