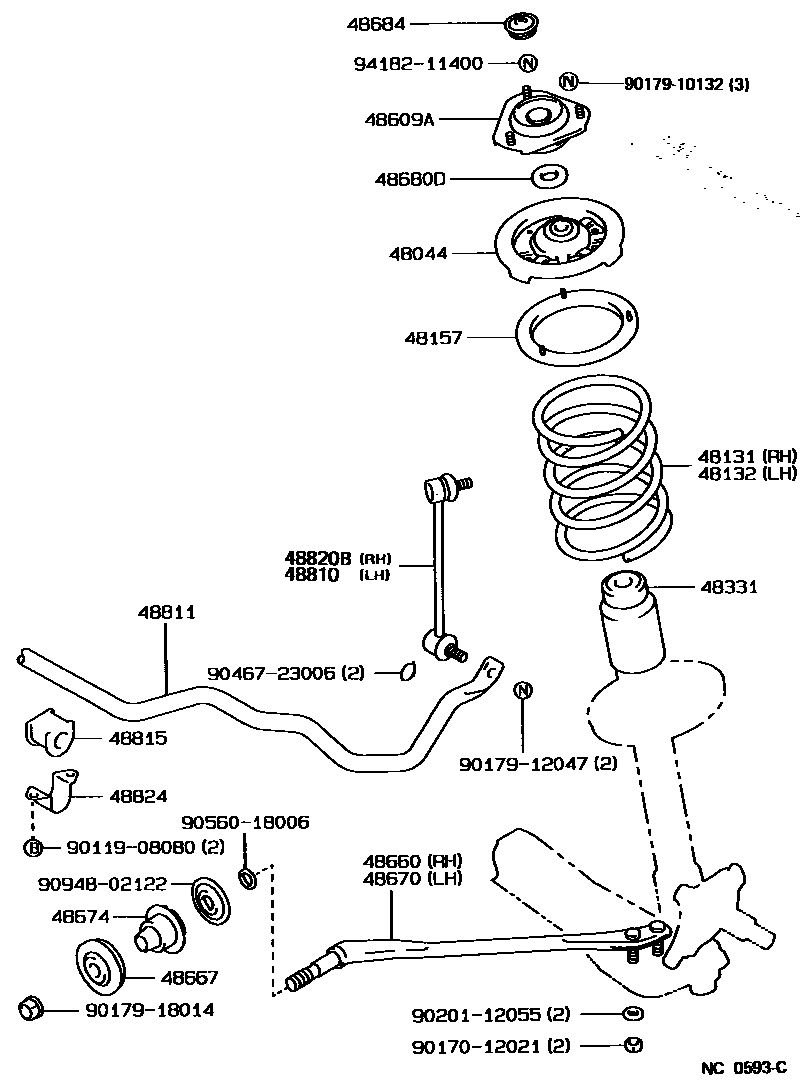

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-22050iMX83198808-199207

48131SPRING, FRONT COIL, RH

main48131-2A530iMX83198808-199008

main48131-2A750iMX83199008-199207

48132SPRING, FRONT COIL, LH

main48131-2A540iMX83198808-199008

main48131-2A760iMX83199008-199207

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-22030iMX83198808-198908

sub48157-22031

main48157-22031iMX83198908-199207

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iMX83198808-199008

main48331-22050iMX83199008-199207

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-22070iMX83198808-199207

48660BAR ASSY, STRUT, RH

main48660-22080iMX83198808-199207

48667RETAINER, STRUT BAR

main48667-22020iMX83198808-199207

48670BAR ASSY, STRUT, LH

main48670-22080iMX83198808-199207

48674CUSHION, STRUT BAR

main48674-22120iMX83198808-199207

sub48674-22141

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iMX83198808-199207

48684COVER, BEARING DUST

main48684-14020iMX83198808-199207

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22010iMX83198808-199207

sub48810-22011

48811BAR, STABILIZER, FRONT

main48811-22340iMX83198808-199207

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22120iMX83198808-199207

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22010iMX83198808-199207

sub48820-22011

48824BRACKET, STABILIZER, FRONT

main48824-22060iMX83198808-199207

9011908080

main90119-08080

9017012021

main90170-12021

9017910132

main90179-10132

9017912047

main90179-12047

9017918014

main90179-18014

9020112055

main90201-12055

9046723006

main90467-23006

9056018006

main90560-18006

9094802122

main90948-02122

9418211400

main94182-11400

27 parts on this diagram · 2 diagrams in section
