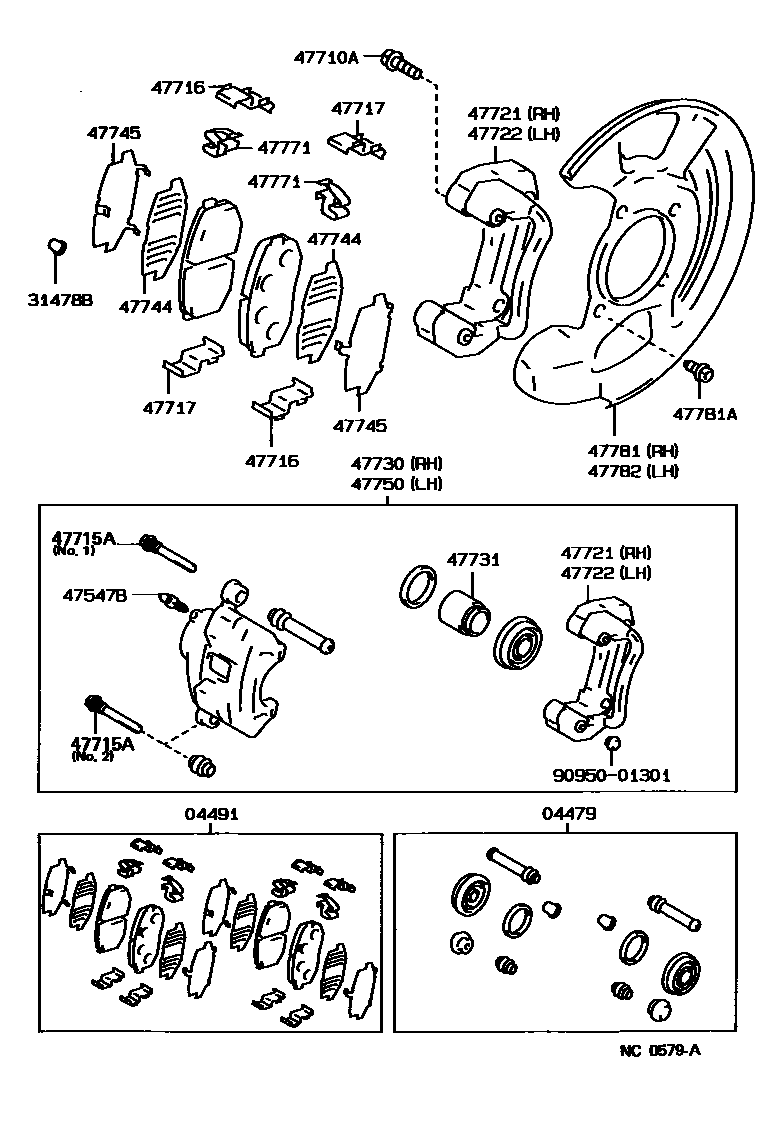

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22020iMX83198808-199207

04491PAD KIT, DISC BRAKE, FRONT

main04491-22260iMX83198906-199207

sub04491-22340

main04491-22280iMX83198808-198906

sub04465-22180

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMX83198808-199207

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iMX83198808-199207

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iMX83198808-199207

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010iMX83198808-199001

main47715-22010iMX83199001-199207

NO.1

main47715-22030iMX83199001-199207

NO.2

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-35010iMX83198808-199207

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-35010iMX83198808-199207

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22080iMX83198808-199207

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22060iMX83198808-199207

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22180iMX83198808-199207

sub47730-22181

47731PISTON, FRONT DISC BRAKE

main47731-35020iMX83198808-199207

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-35030iMX83198808-199207

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35030iMX83198808-199207

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22180iMX83198808-199207

sub47750-22181

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iMX83198808-199207

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-22020iMX83198808-199207

W(*66)

main47781-22110iMX83198808-199207

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08696iMX83198808-199207

W(*66)

sub91611-G0812

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-22020iMX83198808-199207

W(*66)

main47782-22110iMX83198808-199207

9095001301

main90950-01301

20 parts on this diagram · 2 diagrams in section
