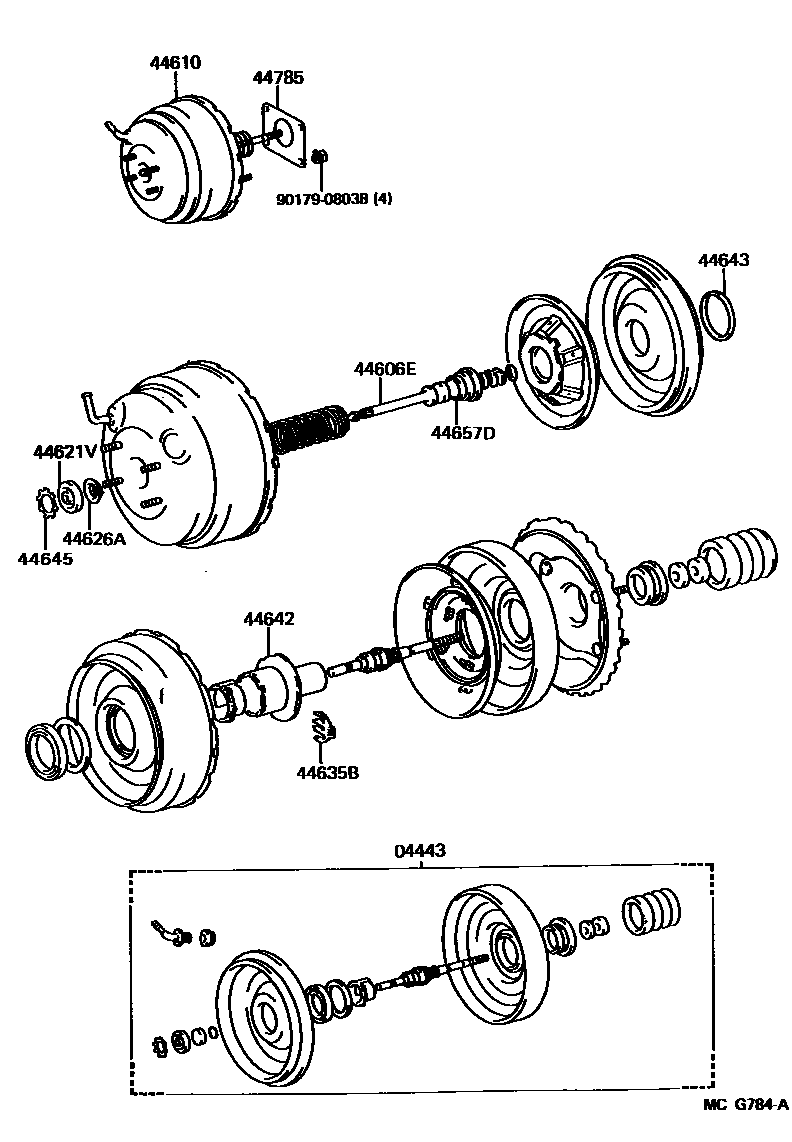

BRAKE BOOSTER & VACUUM TUBE

0001 1AISIN 0002 1JKC 0003 1W(ANTI-LOCK BRAKE SYSTEM) 0004 1

04443BOOSTER KIT, BRAKE

main04443-22580iMX83198808-199008

AISIN

main04443-22670iMX83198808-199008

JKC

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iMX83198808-199008

AISIN

main44608-17090iMX83198808-199008

JKC

44610BOOSTER ASSY, BRAKE

main44610-22660iMX83198808-199207

main44610-22830iMX83199008-199207

W(*66)

44621VSEAL, BOOSTER BODY

main44621-14030iMX83198808-199008

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iMX83198808-199008

44635BKEY, VALVE STOPPER

main44633-20811iMX83198808-199008

JKC

main44635-20800iMX83198808-199008

AISIN

44642PISTON, BRAKE BOOSTER

main44642-20800iMX83198808-199008

44643RETAINER, DIAPHRAGM

main44643-20800iMX83198808-199008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iMX83198808-199008

AISIN

main44645-10080iMX83198808-199008

JKC

44657DCASE, REACTION DISC

main44657-30560iMX83198808-199008

44785GASKET, BRAKE BOOSTER

main44785-32010iMX83198808-199207

9017908038

main90179-08038

12 parts on this diagram · 4 diagrams in section
