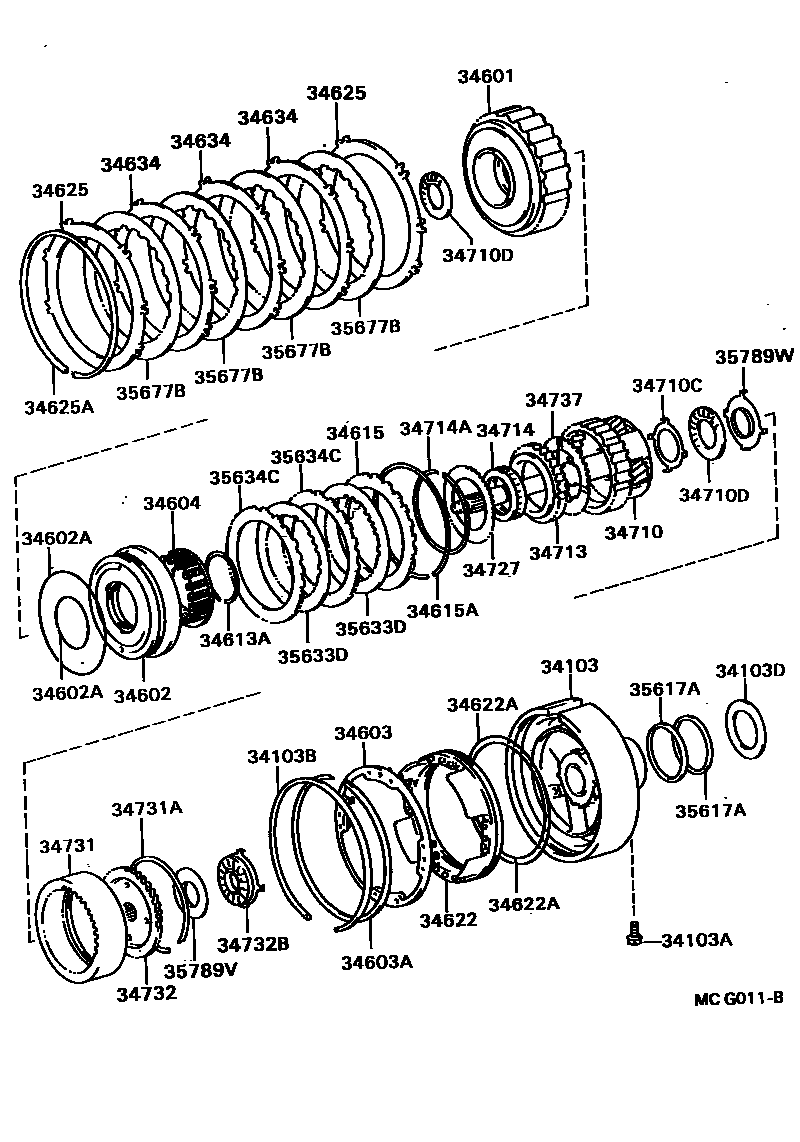

OVERDRIVE GEAR (ATM)

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30011iMX83198808-199008

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08065iMX83198808-199207

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iMX83198808-199207

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iMX83198808-199207

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30030iMX83198808-199207

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iMX83198808-199207

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-65005iMX83198808-199207

INNER

sub90301-65006

main90301-99036iMX83198808-199207

OUTER

sub90301-99086

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-30010iMX83198808-199008

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99031iMX83198808-199207

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-30010iMX83198808-199207

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iMX83198808-199207

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iMX83198808-199207

T=3.6

sub34615-50050

main34615-30030iMX83198808-199207

T=3.5

sub34615-50040

main34615-30040iMX83198808-199207

T=3.4

sub34615-50030

main34615-30050iMX83198808-199207

T=3.3

sub34615-22030

main34615-30060iMX83198808-199207

T=3.2

sub34615-22020

main34615-30070iMX83198808-199207

T=3.1

sub34615-22010

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iMX83198808-199207

34622PISTON, OVERDRIVE BRAKE

main34622-30030iMX83198808-199008

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99035iMX83198808-199008

INNER

sub90301-99087

main90301-99037iMX83198808-199008

OUTER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-30030iMX83198808-199112

T=4.0,MARK 1,MARK 1

sub34625-30110

main34625-30040iMX83198808-199112

T=3.9

sub34625-30120

main34625-30050iMX83198808-199112

T=3.8

sub34625-30130

main34625-30060iMX83198808-199112

T=3.7

sub34625-30140

main34625-30070iMX83198808-199112

T=3.6

sub34625-30150

main34625-30080iMX83198808-199112

T=3.5

sub34625-30160

main34625-30090iMX83198808-199112

T=3.3

sub34625-30170

main34625-30100iMX83198808-199112

T=4.0,NO MARK,NO MARK

sub34625-30180

main34625-30110iMX83199112-199207

T=4.0

main34625-30120iMX83199112-199207

T=3.9,MARK 82

sub34625-22050

main34625-30130iMX83199112-199207

T=3.8,MARK 81

sub34625-22040

main34625-30140iMX83199112-199207

T=3.7,MARK 80

sub34625-50040

main34625-30150iMX83199112-199207

T=3.6,MARK 79

sub34625-50030

main34625-30160iMX83199112-199207

T=3.5,MARK 78

sub34625-50020

main34625-30170iMX83199112-199207

T=3.3,MARK 77

sub34625-22030

main34625-30180iMX83199112-199207

T=4.0,MARK 83

sub34625-22060

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99027iMX83198808-199207

34634PLATE, OVERDRIVE BRAKE

main34634-30020iMX83198808-199112

sub34634-30021

main34634-30021iMX83199112-199207

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-30030iMX83198808-199207

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main35789-30050iMX83198808-199207

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-25005iMX83198808-199207

RR

main90374-28008iMX83198808-199207

FR

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iMX83198808-199207

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30040iMX83198808-198907

sub35791-50010

main35791-50010iMX83198907-199207

main35791-50040iMX83198908-199008

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iMX83198808-199207

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iMX83198808-199207

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iMX83198808-199207

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iMX83198808-199207

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22010iMX83198808-199207

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iMX83198808-199207

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30030iMX83198808-199207

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020iMX83198808-199207

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-30040iMX83198808-199207

sub35633-14010

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iMX83198808-199207

T=2.0

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-30010iMX83198808-199207

35789VRACE, THRUST BEARING

main35789-22060iMX83198808-199207

35789WRACE, THRUST BEARING

main35789-30060iMX83198808-199207

36 parts on this diagram · 1 diagram in section
