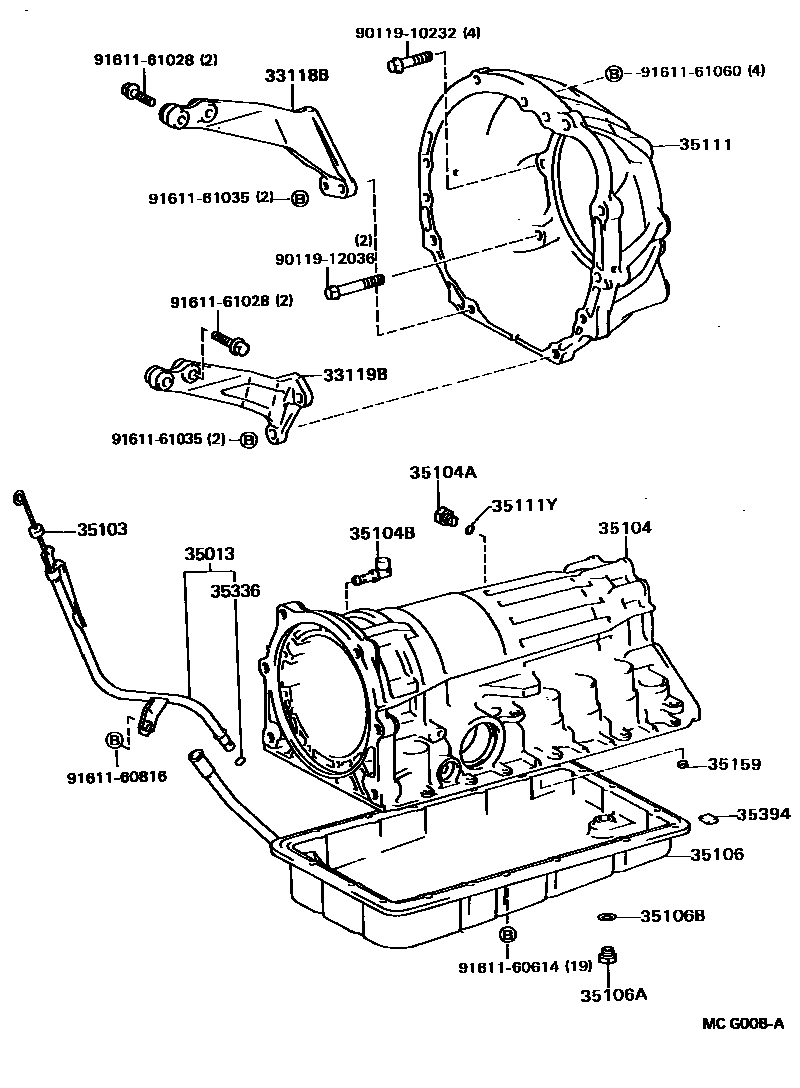

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-22060iMX83198808-199207

33119BPLATE, STIFFENER, LH(ATM)

main33119-22030iMX83198808-199207

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22200iMX83198808-199207

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22140iMX83198808-199207

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30133iMX83198808-199207

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iMX83198808-199008

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iMX83198808-199207

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30100iMX83198808-198911

main35106-30101iMX83198911-199207

sub35106-30170

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iMX83198808-199207

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iMX83198808-199207

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-24021iMX83198808-199207

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iMX83198808-199008

35159GASKET, BRAKE DRUM

main35159-30010iMX83198808-199207

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMX83198808-199207

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iMX83198808-199207

9011910232

main90119-10232

9011912036

main90119-12036

9161160614

main91611-60614

9161160816

main91611-60816

9161161028

main91611-61028

9161161035

main91611-61035

9161161060

main91611-61060

22 parts on this diagram · 1 diagram in section
