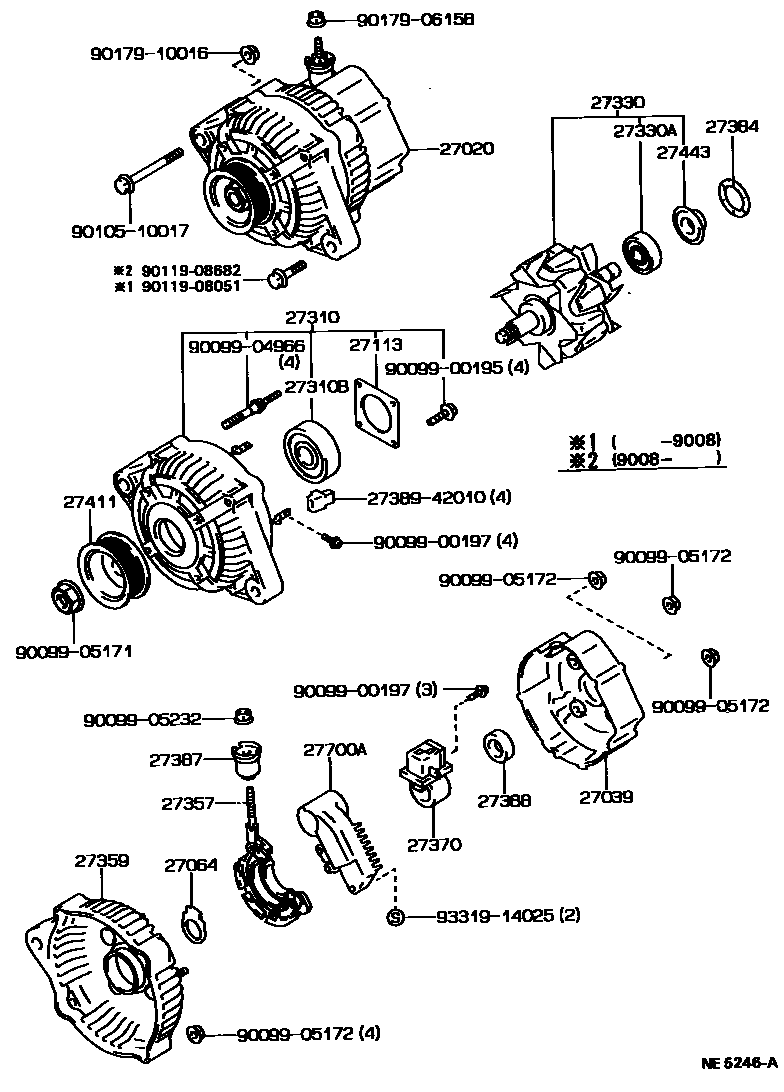

ALTERNATOR
27020ALTERNATOR ASSY
12V 80A
27039COVER, ALTERNATOR REAR END
sub27039-16310
27064SEAL, ALTERNATOR PLATE
27113PLATE, BEARING RETAINER, ALTERNATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
sub27357-50040
27359FRAME, ALTERNATOR RECTIFIER END
sub27359-74330
27387INSULATOR, TERMINAL
27388COVER, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
2738942010INSULATOR, TERMINAL
main27389-42010
9009900195
main90099-00195
9009900197
main90099-00197
9009904966
main90099-04966
9009905171
main90099-05171
9009905172
main90099-05172
9009905232
main90099-05232
9010510017
main90105-10017
9011908051
main90119-08051
9011908682
main90119-08682
9017906158
main90179-06158
9017910016
main90179-10016
9331914025
main93319-14025
30 parts on this diagram · 1 diagram in section
