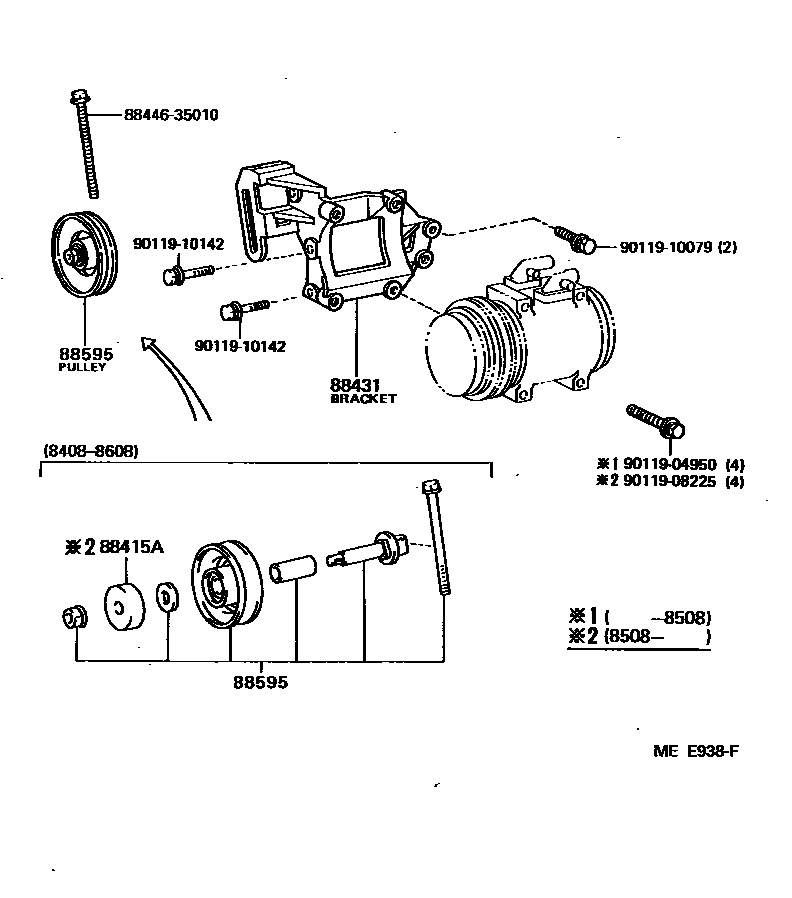

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88415ACOVER, DUST

main88415-22020iMX7#198508-198608

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22230iMX7#198608-198808

main88431-24020iMX7#198408-198508

main88431-30500iMX7#198508-198608

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16010iMX7#198408-198608

sub88440-22050

main88440-35010iMX7#198608-198808

8844635010BOLT, IDLE PULLEY

main88446-35010

9011904950

main90119-04950

9011908225

main90119-08225

9011910079

main90119-10079

9011910142

main90119-10142

8 parts on this diagram · 5 diagrams in section
