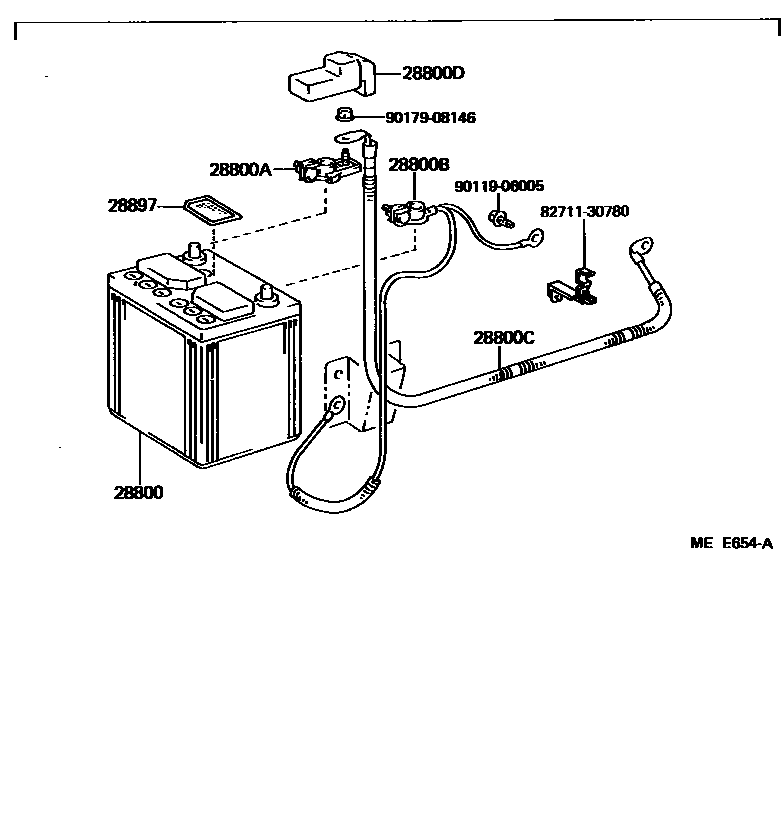

BATTERY & BATTERY CABLE

28800BATTERY

main28800-45030i5MGE..MX7#198408-198501

75D31L-MF

main28800-45050i5MGE..MX7#198501-198808

75D31L,75D31L-MF

sub28800-42130

28800ATERMINAL, BATTERY POSITIVE

main90982-05029i5MGE..MX7#198408-198610

sub90982-05030

main90982-05030i5MGE..MX7#198610-198808

28800BCABLE, BATTERY TO GROUND

main90982-02264i5MGE..MX7#198408-198808

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-22040i5MGE..MX7#198408-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i5MGE..MX7#198408-198808

28897PLATE, BATTERY CAUTION

main28897-38010i5MGE..MX7#..CND198501-198808

main28897-45040i5MGE..MX7#..CND198408-198501

sub28897-35010

main28898-26010i5MGE..MX7#..USA198408-198808

8271130780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30780

9011906005

main90119-06005

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
