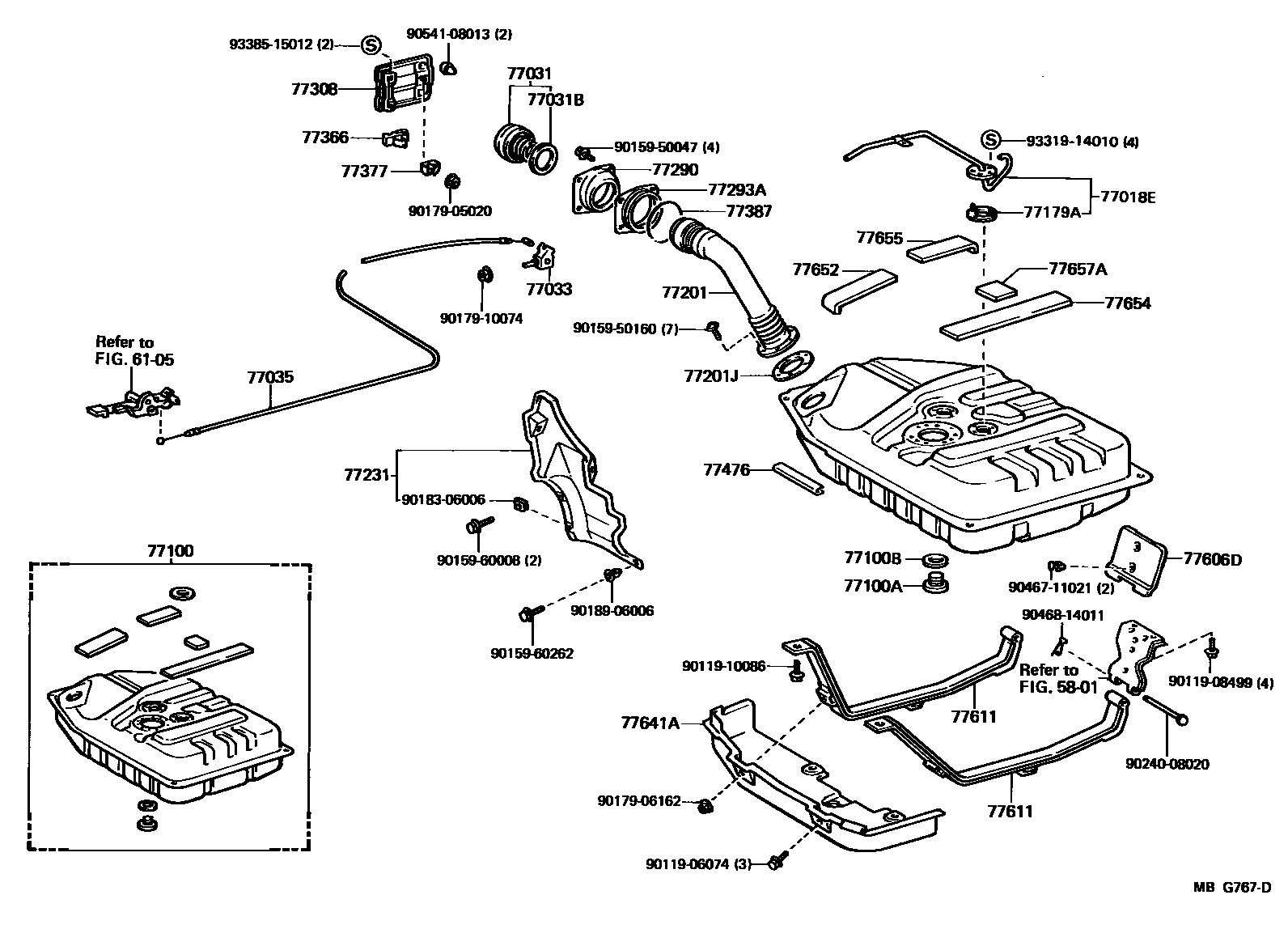

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

5801

6105

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22020iMX73198408-198808

sub77018-22030

main77018-23010iMX72198411-198708

sub77018-23020

77031CAP ASSY, FUEL TANK

main77310-16011iMX7#198408-198808

sub77310-12140

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iMX7#198408-198808

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iMX7#198408-198808

sub77037-90K00

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22110iMX7#198408-198608

main77035-22160iMX7#198608-198808

77100TANK ASSY, FUEL

main77001-29135iMX73198408-198808

main77001-29176iMX72198411-198708

77100APLUG(FOR FUEL TANK)

main90341-20004iMX7#198408-198808

77100BGASKET(FOR FUEL TANK)

main90430-20007iMX7#198408-198808

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iMX7#198408-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22160iMX73198408-198604

main77201-22161iMX73198604-198808

sub77201-22190

main77201-23021iMX72198411-198708

sub77201-23060

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-22020iMX7#198408-198808

77231PROTECTOR, INLET TUBE

main77277-22050iMX73198408-198808

main77277-23010iMX72198411-198708

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22030iMX7#198408-198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22020iMX7#198408-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22060iMX7#198408-198608

sub77350-22080

main77350-22080iMX7#198608-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iMX7#198408-198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iMX7#198608-198808

main77377-22030iMX7#198408-198608

77387RING, FUEL INLET BOX

main77391-16010iMX7#198408-198808

77476PROTECTOR, FUEL HOSE, NO.2

main77476-22010iMX73198408-198411

77606DPROTECTOR, FUEL TANK, NO.3

main77643-22040iMX73198408-198808

77611BAND, FUEL TANK

main77601-22090iMX73198408-198808

RH

main77601-23010iMX72198411-198708

FR,RH

main77602-22110iMX73198408-198808

LH

main77602-23010iMX72198411-198708

FR,LH

main77603-23010iMX72198411-198708

RR,RH

main77604-23010iMX72198411-198708

RR,LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-22060iMX73198408-198808

main77641-23010iMX72198411-198708

77652CUSHION, FUEL TANK, NO.1

main77651-22060iMX73198408-198808

77654CUSHION, FUEL TANK, NO.2

main77652-22050iMX73198408-198808

main77652-23010iMX72198411-198708

sub77652-16080

77655CUSHION, FUEL TANK, NO.3

main77653-22050iMX73198408-198808

main77653-23010iMX72198411-198708

sub77652-23010

77657ACUSHION, FUEL TANK, NO.5

main77655-22060iMX73198408-198808

main77655-23010iMX72198411-198708

sub77652-23010

9011906074

main90119-06074

9011908499

main90119-08499

9011910086

main90119-10086

9015950047

main90159-50047

9015950160

main90159-50160

9015960008

main90159-60008

9015960262

main90159-60262

9017905020

main90179-05020

9017906162

main90179-06162

9017910074

main90179-10074

9018306006

main90183-06006

9018906006

main90189-06006

9024008020

main90240-08020

9046711021

main90467-11021

9046814011

main90468-14011

9054108013

main90541-08013

9331914010

main93319-14010

9338515012

main93385-15012

46 parts on this diagram · 5 diagrams in section
