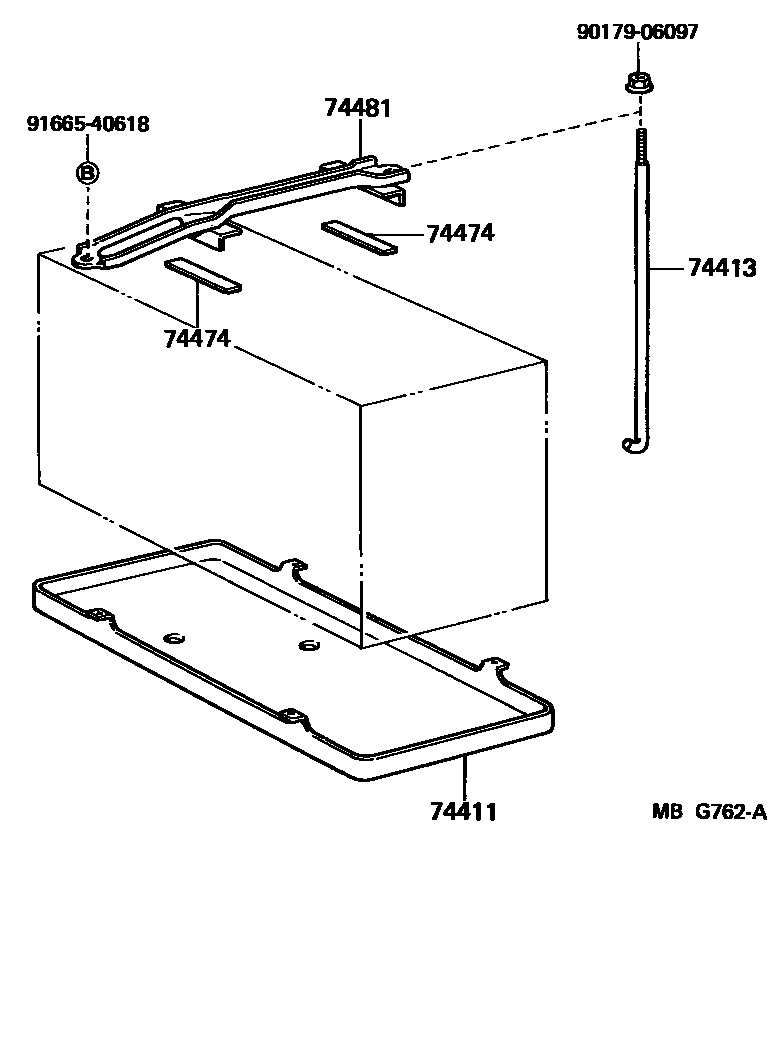

BATTERY CARRIER

74411CARRIER, BATTERY

main74431-14040iMX7#198408-198808

74413BOLT, BATTERY CLAMP

main74451-14010iMX7#198408-198808

74474PAD, BATTERY

main74471-30080iMX73198408-198411

main74473-22010iMX7#198411-198808

RR

main74474-22010iMX7#198411-198808

FR

74481CLAMP, BATTERY HOLD DOWN

main74404-22180iMX7#198408-198808

9017906097

main90179-06097

9166540618

main91665-40618

6 parts on this diagram · 1 diagram in section
