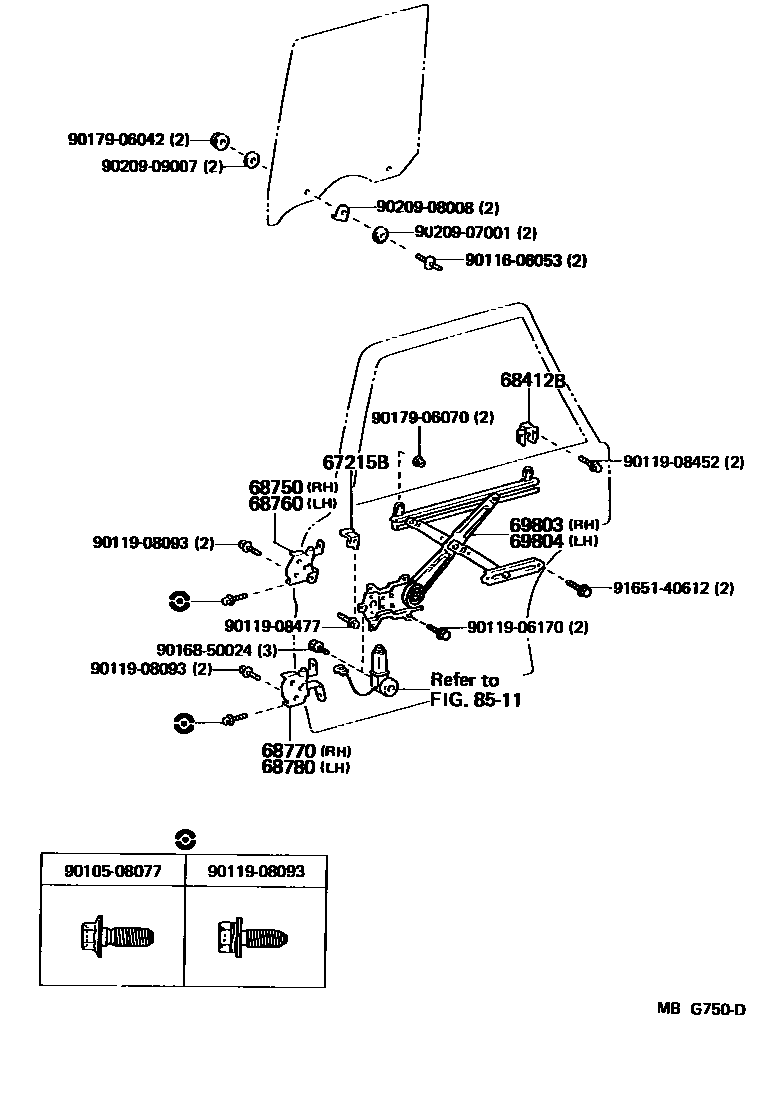

REAR DOOR WINDOW REGULATOR & HINGE

67215BSTOP, REAR DOOR WINDOW, UPPER

main67215-22020iMX7#198408-198808

68412BSTOP SUB-ASSY, DOOR WINDOW, UPPER

main67212-22010iMX7#198408-198808

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32010iMX7#198408-198808

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32010iMX7#198408-198808

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32010iMX7#198408-198808

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-32010iMX7#198408-198808

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22080iMX7#198408-198808

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22080iMX7#198408-198808

8511

9010508077

main90105-08077

9011606053

main90116-06053

9011906170

main90119-06170

9011908093

main90119-08093

9011908452

main90119-08452

9011908477

main90119-08477

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9165140612

main91651-40612

22 parts on this diagram · 1 diagram in section
