REAR DOOR PANEL & GLASS
62367BCLIP, DOOR WINDOW GLASS, REAR RH
SPORTS PACKAGE
62368BCLIP, DOOR WINDOW GLASS, REAR LH
SPORTS PACKAGE
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67489SEAL, REAR DOOR DIVISION BAR
RH
LH
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
sub67841-22150
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
sub67841-22150
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
RH
LH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5,*TT,T=3.5
*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE
*TT,T=3.5,*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5,*TT,T=3.5
*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE
*TT,T=3.5,*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5,*TT,T=3.5
*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE
*TT,T=3.5,*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5,*TT,T=3.5
*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE
*TT,T=3.5,*TT,T=3.5
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68191BRUN, REAR DOOR GLASS, NO.2 RH
68192BRUN, REAR DOOR GLASS, NO.2 LH
68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
68630CHECK ASSY, REAR DOOR
6785712010COVER, FRONT DOOR SERVICE HOLE, NO.1
main67857-12010
6785812010COVER, FRONT DOOR HINGE SERVICE HOLE, NO.2
main67858-12010
9015950167
main90159-50167
9017906070
main90179-06070
9033335001
main90333-35001
9033335002
main90333-35002
9095001275
main90950-01275
9165140612
main91651-40612
9165140616
main91651-40616
9165540616
main91655-40616

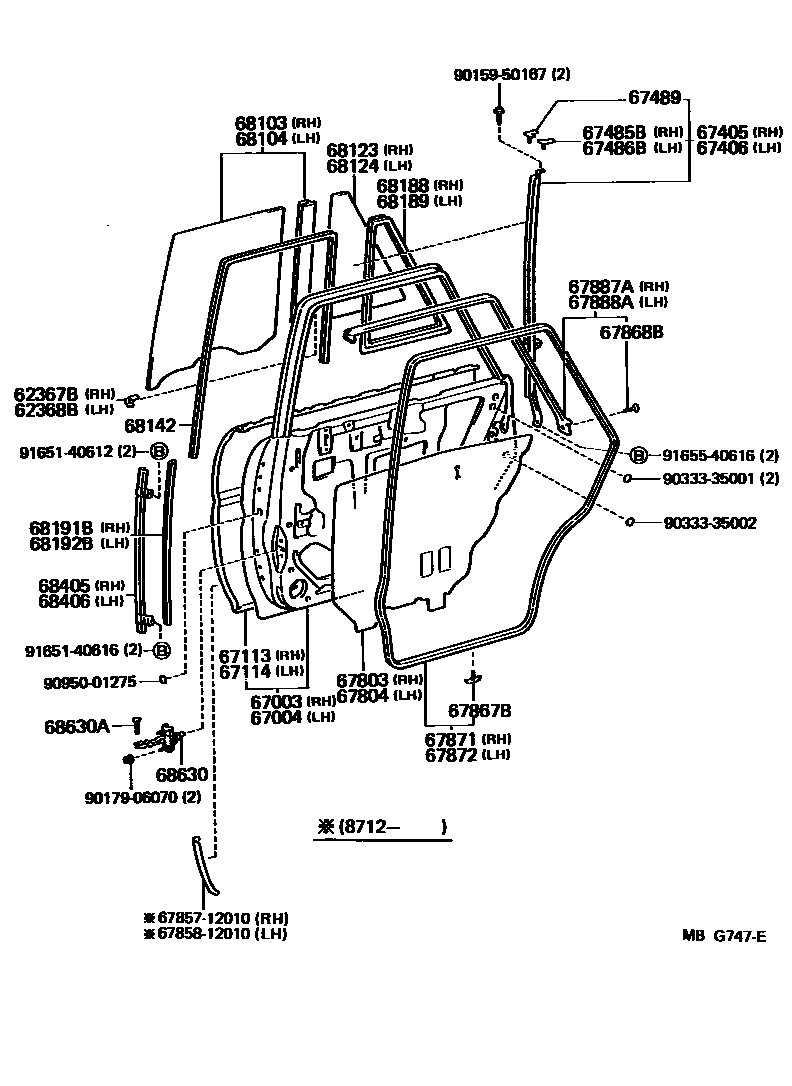

42 parts on this diagram · 2 diagrams in section
