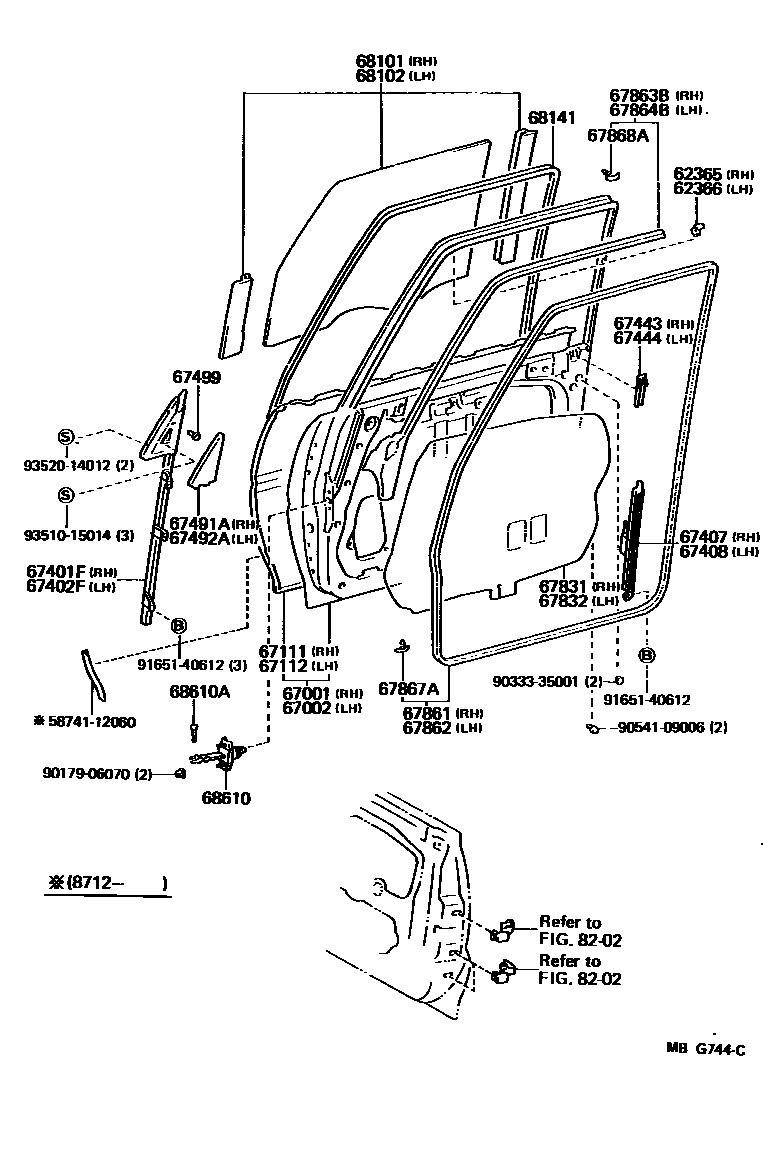

FRONT DOOR PANEL & GLASS
62365CLIP, DOOR WINDOW GLASS, FRONT RH
SPORTS PACKAGE
62366CLIP, DOOR WINDOW GLASS, FRONT LH
SPORTS PACKAGE
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67443PROTECTOR, FRONT DOOR LOCKING ROD, RH
67444PROTECTOR, FRONT DOOR LOCKING ROD, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
sub67831-22130
67832COVER, FRONT DOOR SERVICE HOLE, LH
sub67831-22130
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
RH
LH
67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0,*TT,T=4.0
*TEM,T=4.0,BRONZE,*TEM,T=4.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0,*TT,T=4.0
*TEM,T=4.0,BRONZE,*TEM,T=4.0,BRONZE
68610CHECK ASSY, FRONT DOOR
8202
5874112060PROTECTOR, QUARTER PANEL, RH
main58741-12060
9017906070
main90179-06070
9033335001
main90333-35001
9054109006
main90541-09006
9165140612
main91651-40612
9351015014
main93510-15014
9352014012
main93520-14012
36 parts on this diagram · 2 diagrams in section
