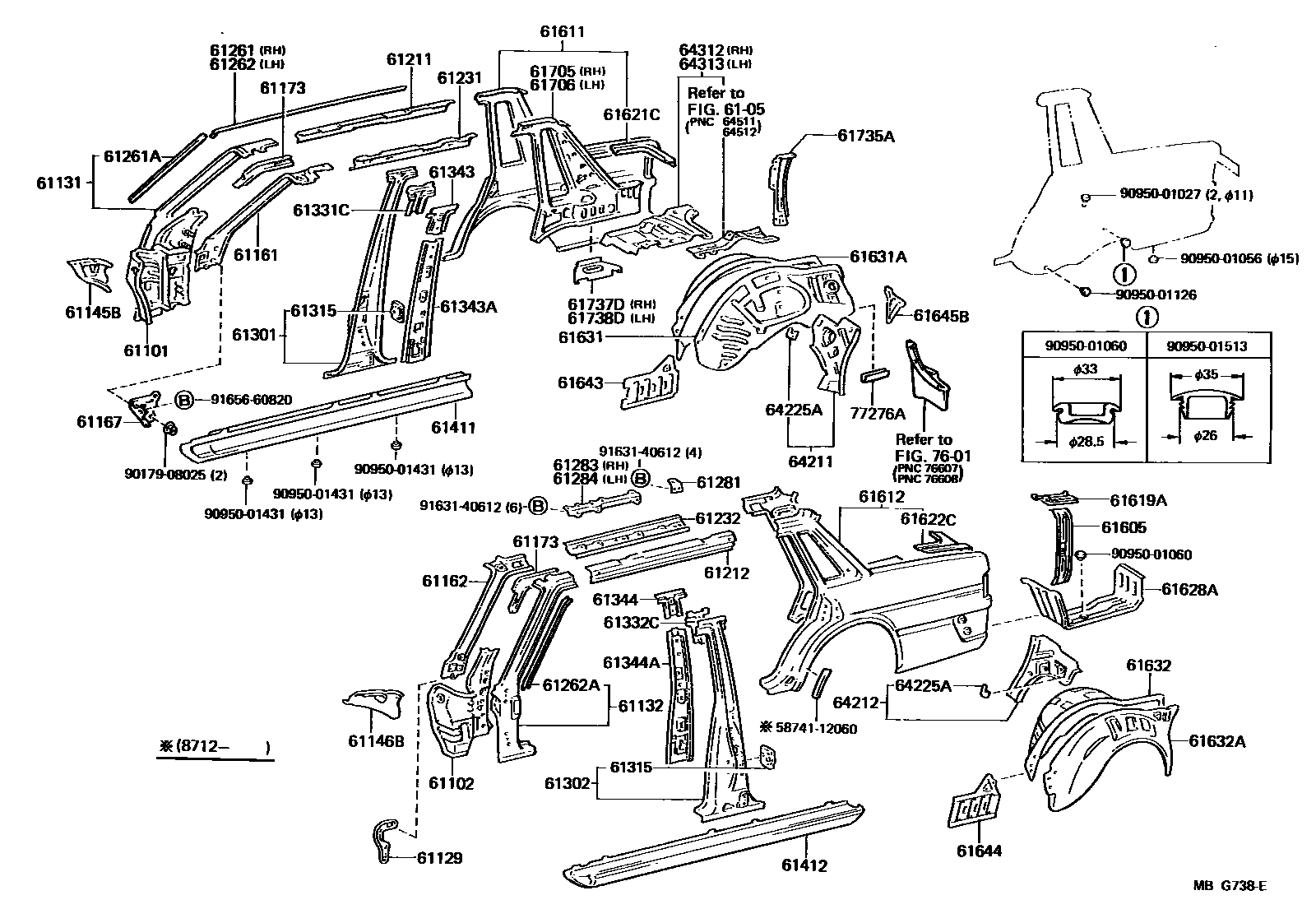

SIDE MEMBER
6105
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61129REINFORCEMENT, COWL SIDE PANEL, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
RH
RH
LH
LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61262ACHANNEL, ROOF DRIP SIDE, FRONT LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
sub61302-22922
61315RETAINER, DOOR LOCK STRIKER PLATE
61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH
61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH
61343PILLAR, CENTER BODY, INNER UPPER RH
61344PILLAR, CENTER BODY, INNER UPPER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61605BRACE SUB-ASSY, QUARTER PANEL, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61619AREINFORCEMENT, QUARTER PANEL
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61628AEXTENSION, QUARTER PANEL, LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
64225AHANGER, REAR SEAT CUSHION SUPPORT
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
7601
77276APROTECTOR, FUEL HOSE
5874112060PROTECTOR, QUARTER PANEL, RH
main58741-12060
9017908025
main90179-08025
9095001027
main90950-01027
9095001056
main90950-01056
9095001060
main90950-01060
9095001126
main90950-01126
9095001431
main90950-01431
9095001513
main90950-01513
9163140612
main91631-40612
9165660820
main91656-60820
70 parts on this diagram · 3 diagrams in section
