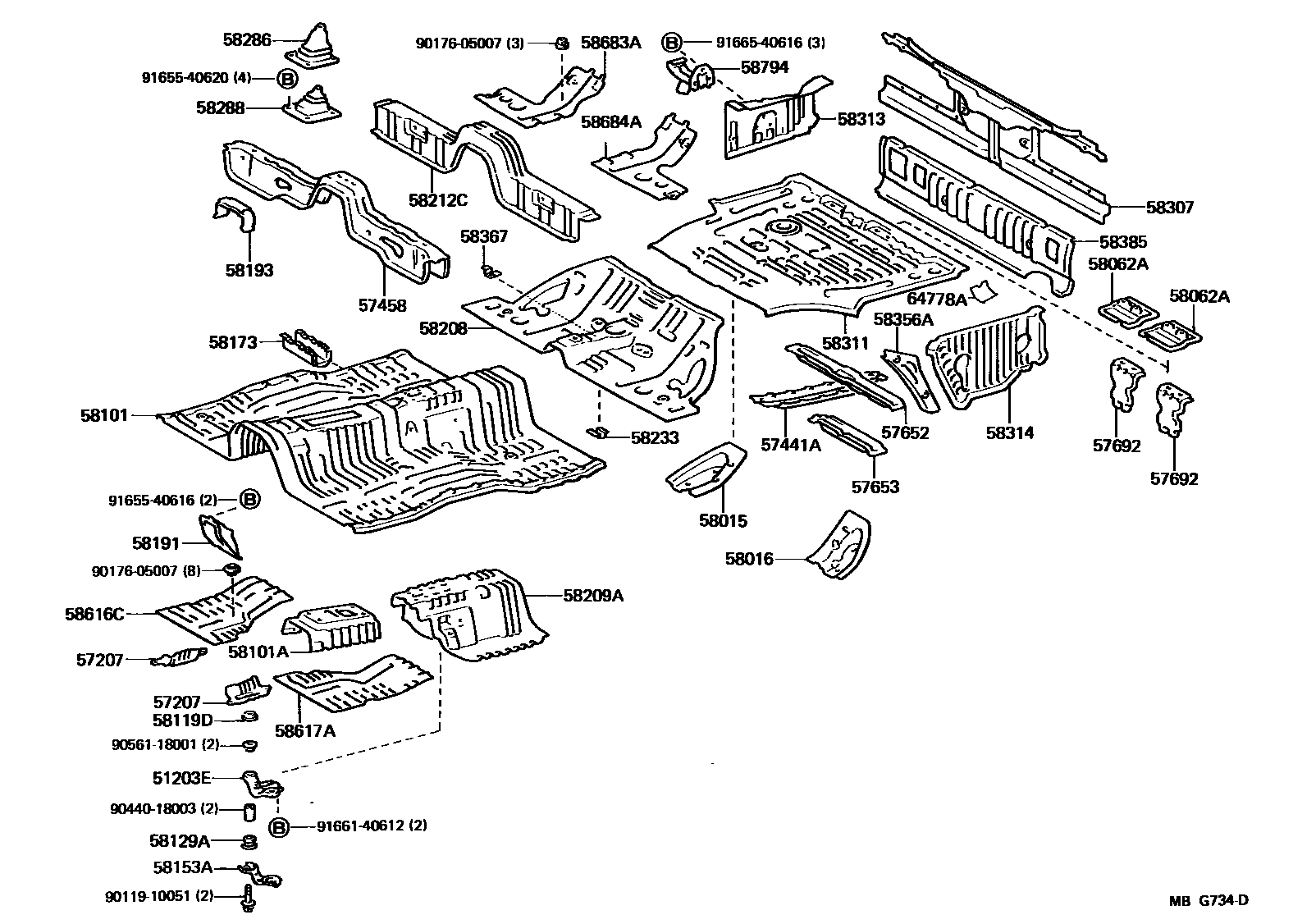

FLOOR PAN & LOWER BACK PANEL
51203EBRACKET SUB-ASSY, CENTER BEARING SUPPORT
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
LH
57441AMEMBER, REAR FLOOR CENTER, NO.1
57458MEMBER, FRONT FLOOR CROSS, NO.1
57652CROSSMEMBER, REAR FLOOR, NO.2
57653MEMBER, REAR FLOOR CROSS, NO.3
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58101PAN SUB-ASSY, FRONT FLOOR
58101ACOVER, TRANSMISSION AUXILIARY
58119DCUSHION, CENTER BEARING SUPPORT, UPPER
58129ACUSHION, CENTER BEARING SUPPORT, LOWER
58153AINSULATOR, CENTER BEARING SUPPORT, HEAT
58173DEFLECTOR, FRONT FLOOR STONE
RH
RH
LH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58233BRACKET, EXHAUST PIPE MOUNTING
58286BOOT, SHIFT & SELECT LEVER, NO.1
sub58280-22071
58288SEAL, SHIFT LEVER BOOT
sub58288-22031
58307PANEL SUB-ASSY, BODY LOWER BACK
58356AREINFORCEMENT, FLOOR SIDE PLATE, LH
58367BRACKET, FUEL TUBE CLAMP
58385PANEL, REAR VALANCE
58616CPANEL, FRONT FLOOR SILENCER, NO.1
58617APANEL, FRONT FLOOR SILENCER, NO.2
58683APANEL, CENTER FLOOR SILENCER, RH
58684APANEL, CENTER FLOOR SILENCER, LH
58794CARRIER, JACK
64778APROTECTOR, SPARE WHEEL
9011910051
main90119-10051
9017605007
main90176-05007
9044018003
main90440-18003
9056118001
main90561-18001
9165540616
main91655-40616
9165540620
main91655-40620
9166140612
main91661-40612
9166540616
main91665-40616
45 parts on this diagram · 4 diagrams in section
