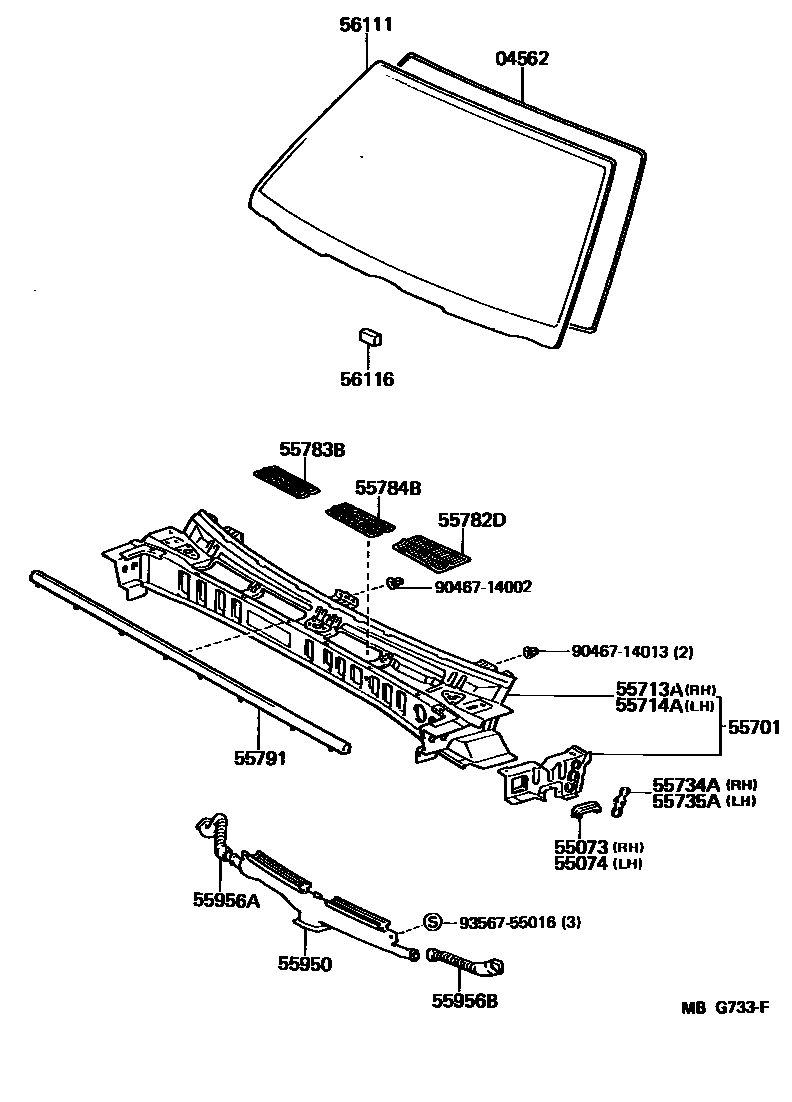

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iMX7#198408-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-22020iMX7#198408-198808

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-22030iMX7#198408-198808

55701PANEL SUB-ASSY, COWL

main55700-22640iMX7#198408-198808

55713APANEL, COWL TOP SIDE, RH

main55713-22050iMX7#198408-198808

55714APANEL, COWL TOP SIDE, LH

main55714-22050iMX7#198408-198808

55734APLATE, WATER GUARD, RH

main55734-22060iMX7#198408-198808

55735APLATE, WATER GUARD, LH

main55734-22060iMX7#198408-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22040iMX7#198408-198605

sub55782-22050

main55782-22050iMX7#198605-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-22060iMX7#198408-198605

sub55783-22080

main55783-22080iMX7#198605-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-22060iMX7#198408-198605

sub55784-22080

main55784-22080iMX7#198605-198808

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-22040iMX7#198408-198808

55950NOZZLE ASSY, DEFROSTER

main55950-22060iMX7#198408-198608

main55950-22080iMX7#198608-198808

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22050iMX7#198408-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-22040iMX7#198408-198808

56111GLASS, WINDSHIELD

main56111-22380iMX7#198408-198808

*TL,T=5.3,W/SUN SHADE,*TL,T=5.3

main56111-22400iMX73198408-198608

*TL,T=5.3,W/SUN SHADE,*TL,T=5.3,BRONZE

sub56111-22570

main56111-22401iMX73198608-198808

W/SUN SHADE,*TL,T=5.3,BRONZE

56116SPACER, WINDSHIELD GLASS

main56116-22020iMX7#198408-198808

T=9.6

main56116-30020iMX7#198408-198808

T=8.5

sub56116-24010

9046714002

main90467-14002

9046714013

main90467-14013

9356755016

main93567-55016

20 parts on this diagram · 1 diagram in section
