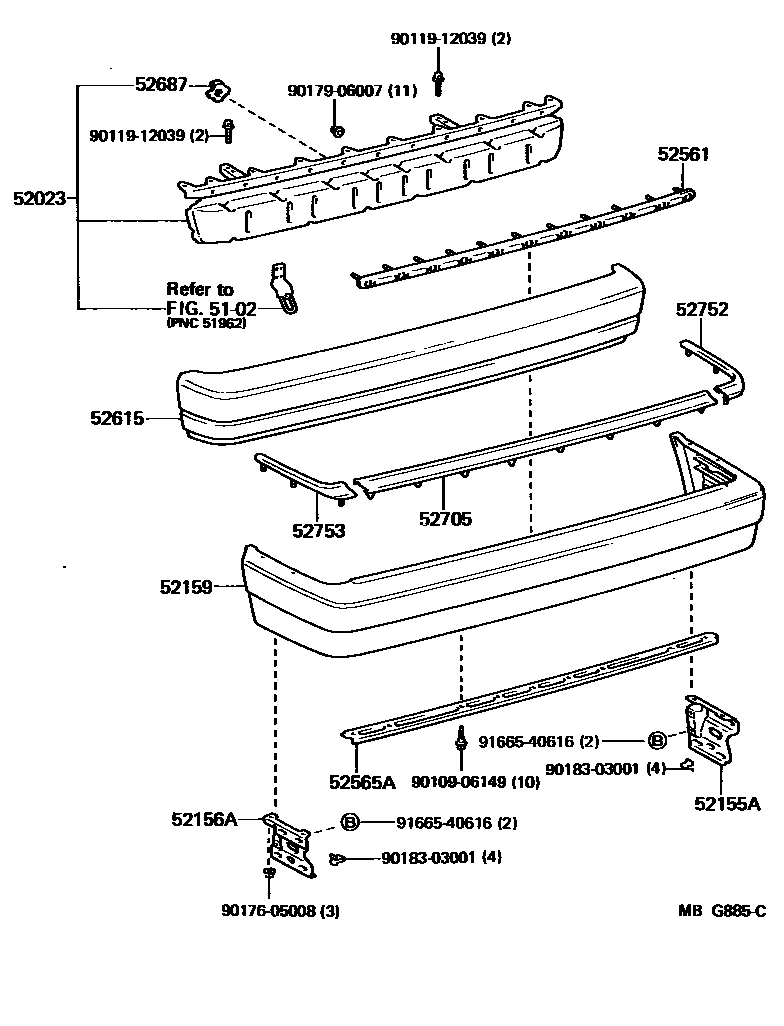

REAR BUMPER & BUMPER STAY

0001 1 0002 1

5102

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-22110iMX73198408-198808

main52023-23020iMX72198411-198708

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-22110iMX73198408-198808

main52155-23040iMX72198411-198708

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-22130iMX73198408-198808

main52156-23040iMX72198411-198708

52159COVER, REAR BUMPER

main52159-22905iMX7#198408-198808

sub52159-22921

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-22060iMX7#198408-198808

52565ARETAINER, REAR BUMPER, LOWER

main52565-32020iMX7#198408-198808

52615ABSORBER, REAR BUMPER ENERGY

main52615-22070iMX7#198408-198808

52687PATCH, REAR BUMPER HITCH MOUNTING, NO.1

main52687-22010iMX7#198409-198808

52705MOULDING SUB-ASSY, REAR BUMPER

main52751-22070iMX73198408-198808

main52751-23010iMX72198411-198708

52752MOULDING, REAR BUMPER SIDE, RH

main52706-22010iMX73198408-198808

main52706-23020iMX72198411-198708

52753MOULDING, REAR BUMPER SIDE, LH

main52707-22010iMX73198408-198808

main52707-23020iMX72198411-198708

9010906149

main90109-06149

9011912039

main90119-12039

9017605008

main90176-05008

9017906007

main90179-06007

9018303001

main90183-03001

9166540616

main91665-40616

18 parts on this diagram · 2 diagrams in section
