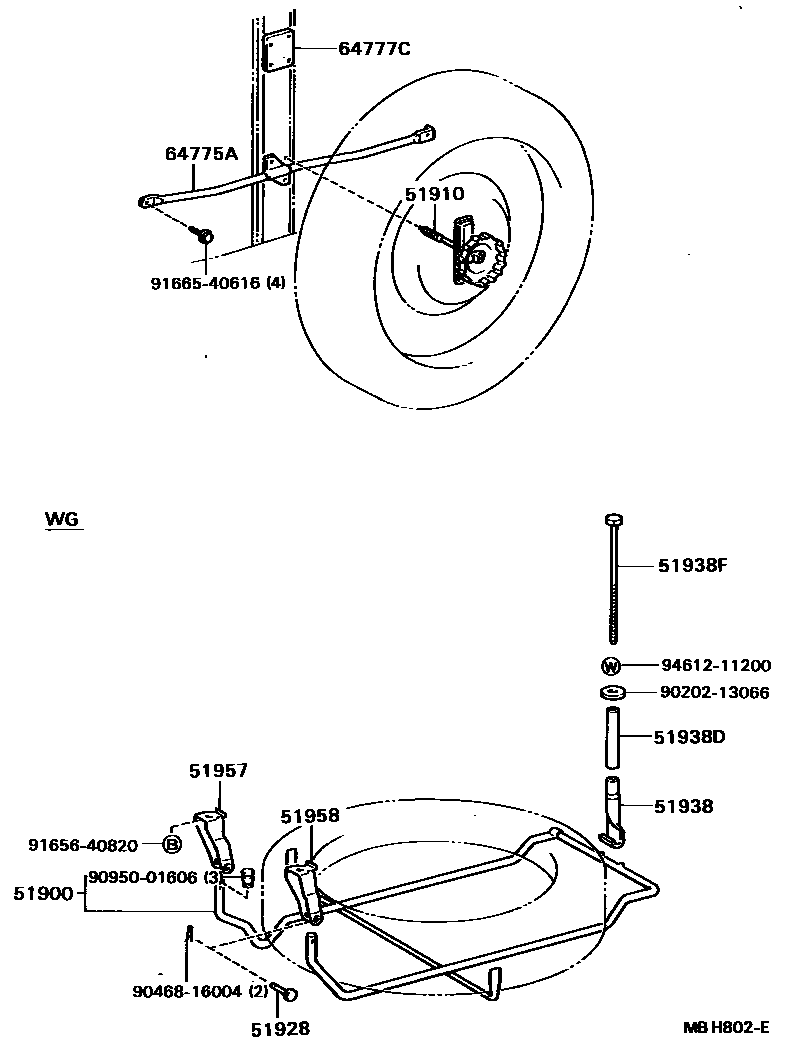

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-23020iMX72198411-198703

main51903-23021iMX72198703-198708

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-22040iMX73198408-198808

51928PIN, SPARE WHEEL CARRIER

main90240-08014×2iMX72198411-198708

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iMX72198501-198608

main51938-28020iMX72198411-198501

main51938-28030iMX72198608-198708

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-16003iMX72198411-198708

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iMX72198411-198708

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51957-23010iMX72198411-198708

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51958-23010iMX72198411-198708

64775AGUARD, SPARE WHEEL

main64775-22010iMX73198408-198808

64777CCUSHION, SPARE WHEEL

main64777-22010iMX73198408-198808

9020213066

main90202-13066

9046816004

main90468-16004

9095001606

main90950-01606

9165640820

main91656-40820

9166540616

main91665-40616

9461211200

main94612-11200

16 parts on this diagram · 1 diagram in section
