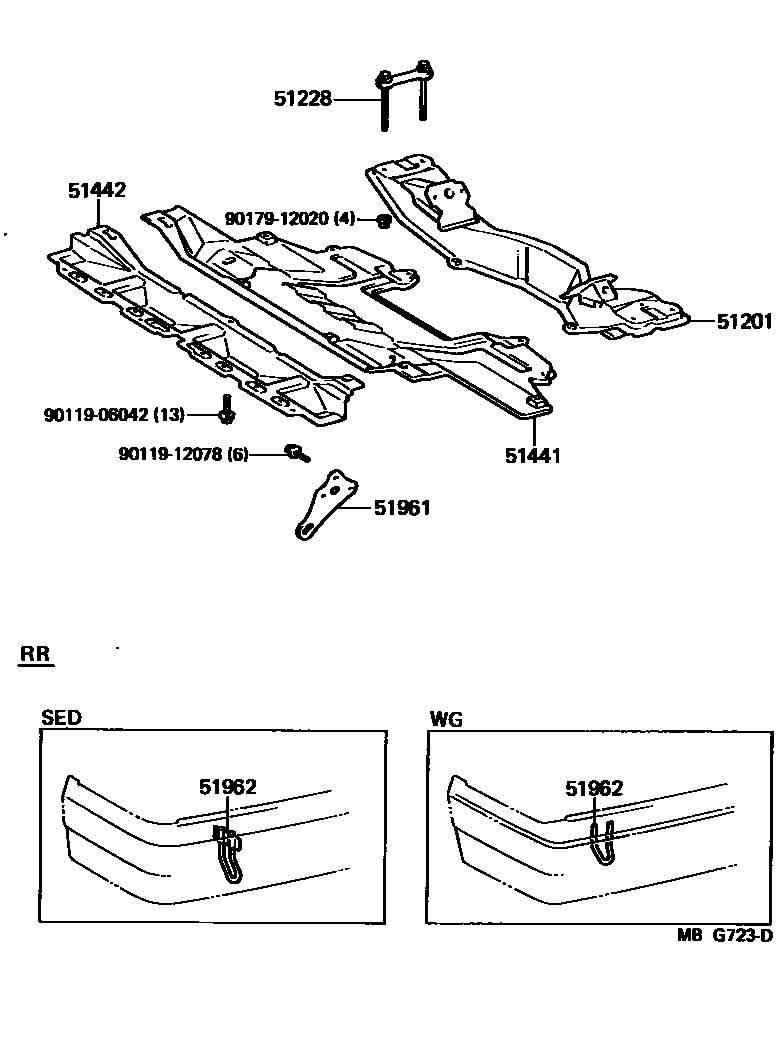

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22340iMX7#198408-198808

sub51201-22341

sub45515-22100

sub45517-22040

51228PLATE, SUSPENSION MEMBER SET

main51229-22040iMX7#198408-198808

51441COVER, ENGINE UNDER, NO.1

main51441-22140iMX7#198408-198808

51442COVER, ENGINE UNDER, NO.2

main51442-22040iMX7#198408-198808

51961HOOK, NO.1

main51963-22050iMX7#198408-198808

51962HOOK, NO.2

main51095-22030iMX73198408-198808

main51965-23020iMX72198411-198708

9011906042

main90119-06042

9011912078

main90119-12078

9017912020

main90179-12020

9 parts on this diagram · 2 diagrams in section
