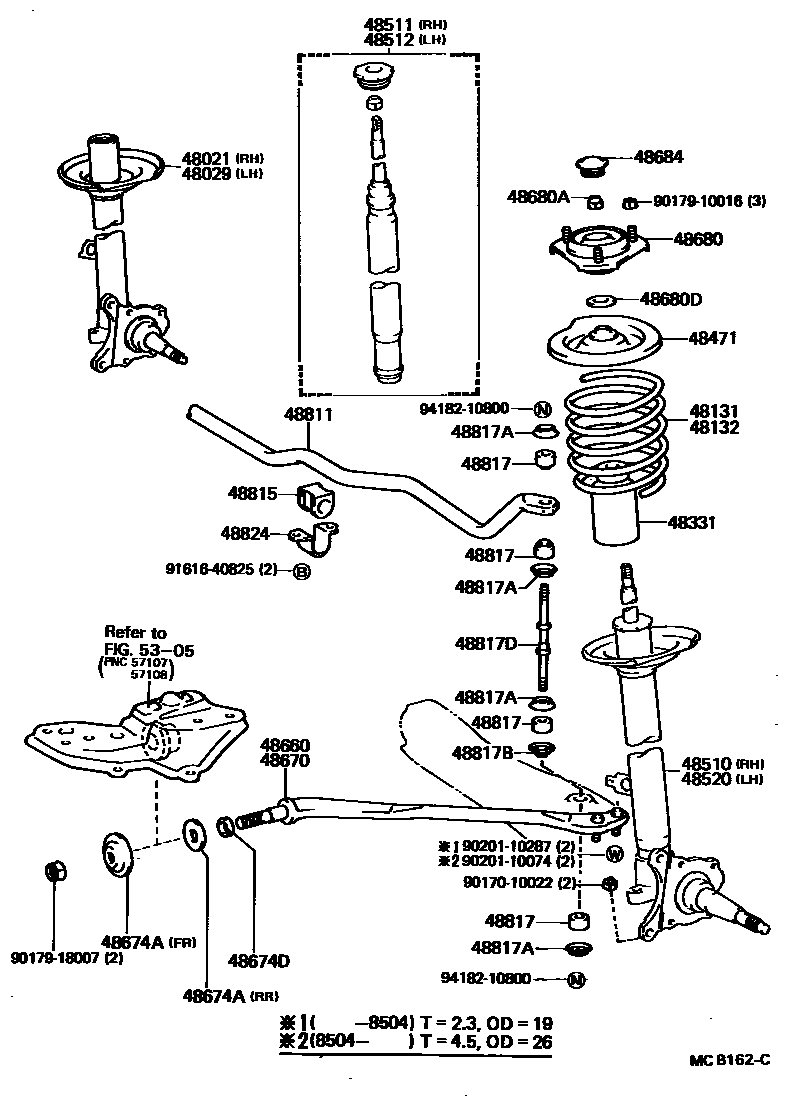

FRONT SPRING & SHOCK ABSORBER
48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
W/TEMS
48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
W/TEMS
48331BUMPER, FRONT SPRING, NO.1
W/TEMS
48471SEAT, FRONT SPRING, UPPER
W/TEMS
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
T=3.8(FR)
T=3.2(RR)
48674DSPACER(FOR STRUT BAR CUSHION)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
sub48815-22150
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
5305
9017010022
main90170-10022
9017910016
main90179-10016
9017918007
main90179-18007
9020110074
main90201-10074
9020110287
main90201-10287
9161640825
main91616-40825
9418210800
main94182-10800
33 parts on this diagram · 2 diagrams in section
