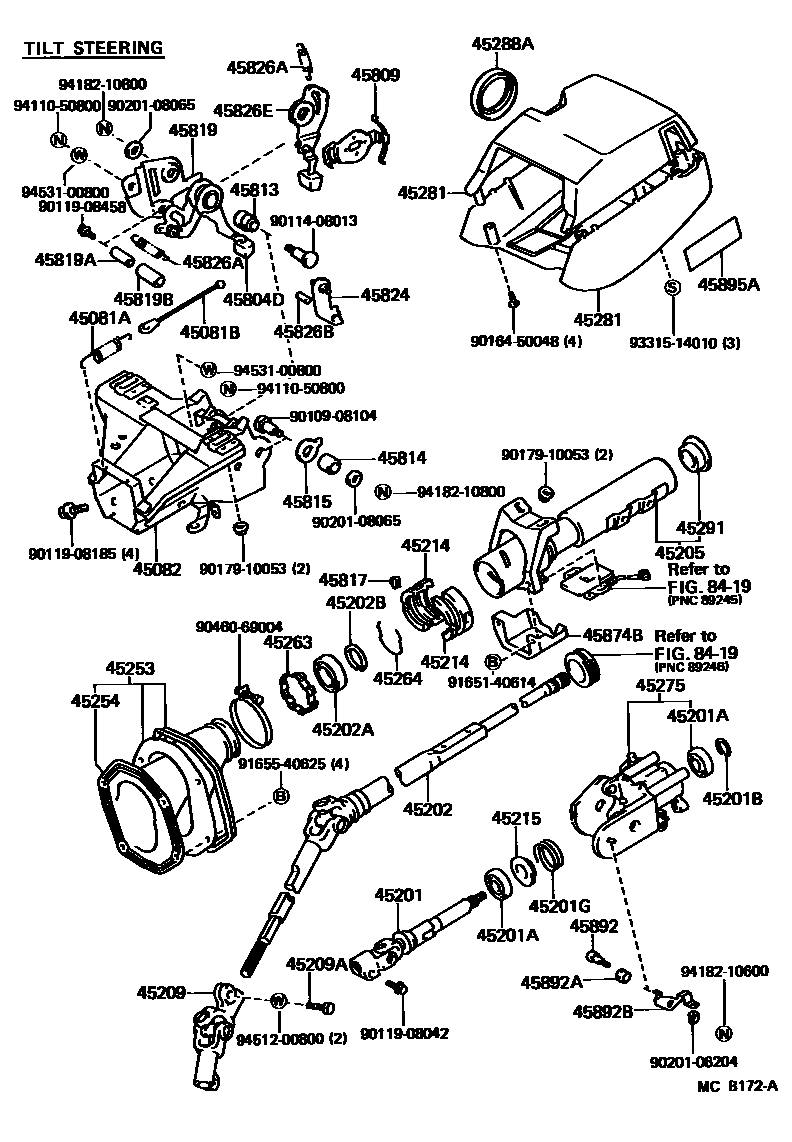

STEERING COLUMN & SHAFT
45081ASPRING, TENSION(FOR TILT STEERING)
45081BCORD(FOR TILT STEERING)
L=122,L=124
L=123,L=122
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45201SHAFT SUB-ASSY, STEERING MAIN
sub45210-22050
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202ABEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)
45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
USA SPORTS PACKAGE(W/TEMS)
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-16010
45209ABOLT, HEXAGON(FOR STEERING SLIDING YOKE SET)
sub90119-08560
45214RETAINER, MAIN SHAFT SPRING
45215COLLAR, MAIN SHAFT BEARING THRUST
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45263RING, STEERING COLUMN, NO.1
45264RING, STEERING COLUMN, NO.2
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
45288ASPACER, COLUMN COVER
45291SEAL, MAIN SHAFT UPPER DUST
45804DLEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL)
45809COVER SUB-ASSY, ADJUSTER MEMORY
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=17.996-18.003,D=17.996-18.003
45814COLLAR, TILT STEERING SUPPORT, NO.2
OD=17.982-18.000,D=17.982-18.000
OD=18.000-18.018,D=18.000-18.018
45815SHIM, TILT STEERING SUPPORT
T=0.2,T=0.2
T=0.5,T=0.5
T=0.8,T=0.8
T=1.4,T=1.4
T=1.8,T=1.8
45817STOPPER, STEERING SHAFT THRUST
45819RETAINER, TILT LEVER
45819ACOLLAR(FOR TILT LEVER RETAINER)
45819BCUSHION(FOR TILT LEVER RETAINER)
45824PAWL, TILT STEERING
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
LWR
UPR
45826BPIN(FOR STEERING TILT LEVER)
45874BPROTECTOR, STEERING COLUMN, NO.1
USA SPORTS PACKAGE(W/TEMS)
45892BOLT, TILT STEERING SUPPORT STOPPER
sub45898-22010
45892ACOVER, TILT STEERING SUPPORT STOPPER
45892BSUPPORT, TILT STEERING COLUMN COVER
8419
9010908104
main90109-08104
9011408013
main90114-08013
9011908042
main90119-08042
9011908185
main90119-08185
9011908458
main90119-08458
9016450048
main90164-50048
9017910053
main90179-10053
9020106204
main90201-06204
9020108065
main90201-08065
9046069004
main90460-69004
9165140614
main91651-40614
9165540625
main91655-40625
9331514010
main93315-14010
9411050800
main94110-50800
9418210600
main94182-10600
9418210800
main94182-10800
9451200800
main94512-00800
9453100800
main94531-00800
59 parts on this diagram · 1 diagram in section
