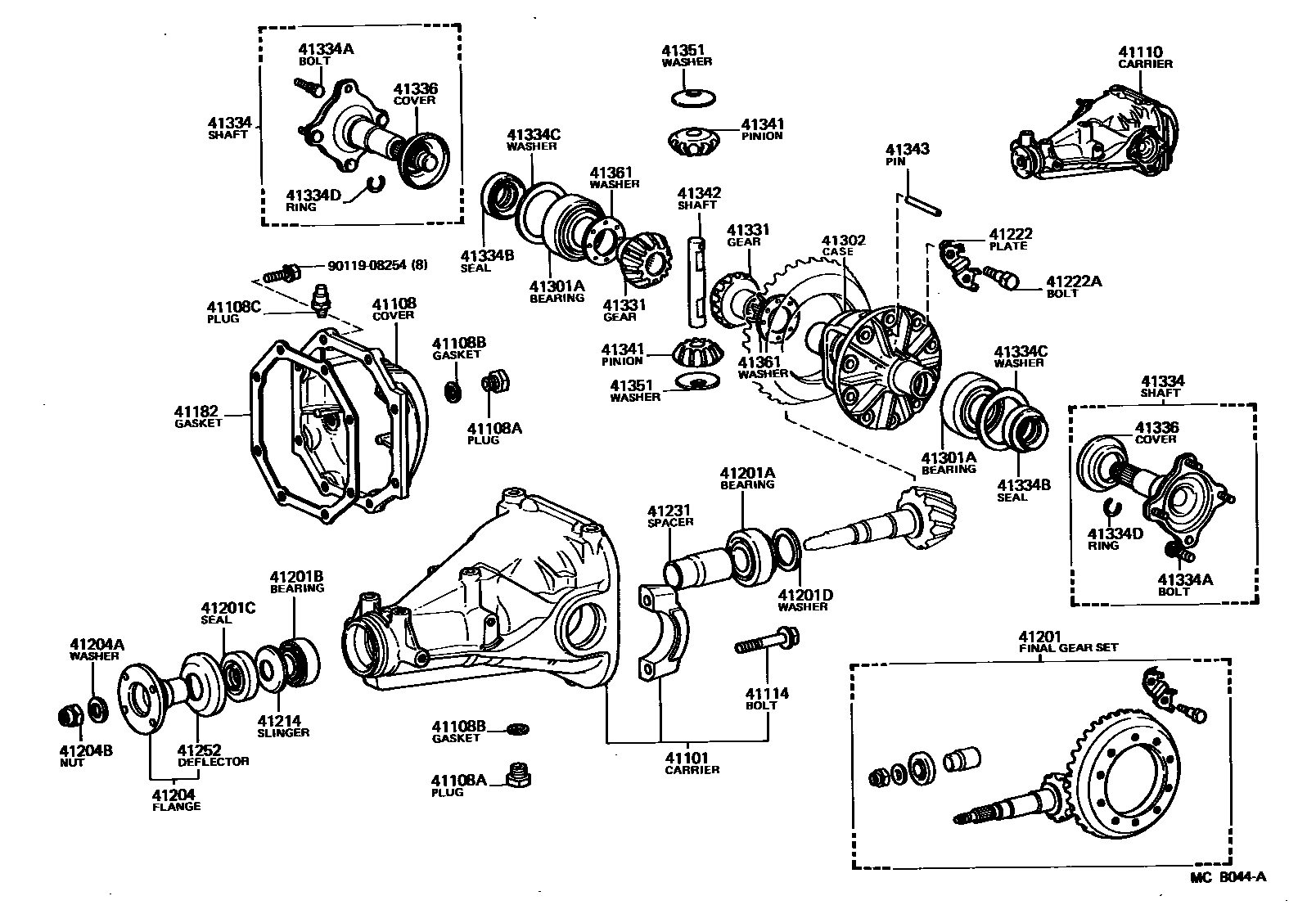

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41108COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER
sub41181-22012
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
FILLER
DRAIN
DRAIN
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727,*AXC=F302,*FGR=41:11
*AXC=F303,*FGR=41:11,W/LSD
*FGR=41:10=4.100,*AXC=F293,*FGR=41:10,W/LSD
*FGR=41:10=4.100,*AXC=F292,*FGR=41:10
*FGR=43:11=3.909,*AXC=F312,*FGR=43:11
*FGR=41:10=4.100,*AXC=F292,*FGR=41:10
*FGR=43:11=3.909,*AXC=E312,*FGR=43:11
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41182GASKET, DIFFERENTIAL CARRIER COVER
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:11=3.909,*AXC=E312,*FGR=43:11
*FGR=41:10=4.100,*AXC=F292,*FGR=41:10
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05,T=2.36
T=2.39,MARK 06,T=2.39
T=2.42,MARK 07,T=2.42
T=2.43,MARK 08,T=2.45
T=2.48,MARK 09,T=2.48
T=2.51,MARK 10,T=2.51
T=2.54,MARK 11,T=2.54
T=2.57,MARK 12,T=2.57
T=2.60,MARK 13,T=2.60
T=2.63,MARK 14,T=2.63
T=2.66,MARK 15,T=2.66
T=2.69,MARK 16,T=2.69
T=2.72,MARK 17,T=2.72
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41334SHAFT, REAR DIFFERENTIAL SIDE GEAR
W/LSD
41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.58,T=2.58
T=2.61,T=2.61
T=2.64,T=2.64
T=2.67,T=2.67
T=2.70,T=2.70
T=2.73,T=2.73
T=2.76,T=2.76
T=2.79,T=2.79
T=2.82,T=2.82
T=2.85,T=2.85
T=2.88,T=2.88
T=2.91,T=2.91
T=2.94,T=2.94
T=2.97,T=2.97
T=3.00,T=3.00
T=3.03,T=3.03
T=3.06,T=3.06
T=3.09,T=3.09
T=3.12,T=3.12
T=3.15,T=3.15
T=3.18,T=3.18
T=3.21,T=3.21
T=3.24,T=3.24
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.5
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02,T=1.00
T=1.10,MARK 03,T=1.10
T=1.20,MARK 04,T=1.20
T=1.80,MARK 1,T=1.80,W/LSD
T=1.85,MARK 2,T=1.85,W/LSD
T=1.90,MARK 3,T=1.90,W/LSD
T=1.95,MARK 4,T=1.95,W/LSD
T=2.00,MARK 5,T=2.00,W/LSD
T=2.05,MARK 6,T=2.05,W/LSD
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
T=1.76,MARK A,T=1.76,MARK A,W/LSD
T=1.80,MARK B,T=1.80,MARK B,W/LSD
T=1.84,MARK C,T=1.84,MARK C,W/LSD
T=1.88,MARK D,T=1.88,MARK D,W/LSD
T=1.92,MARK E,T=1.92,MARK E,W/LSD
T=1.96,MARK F,T=1.96,MARK F,W/LSD
T=2.00,MARK G,T=2.00,MARK G,W/LSD
T=2.04,MARK H,T=2.04,MARK H,W/LSD
T=2.08,MARK J,T=2.08,MARK J,W/LSD
T=2.12,MARK K,T=2.12,MARK K,W/LSD
T=1.0,T=1.0
T=1.1,T=1.1
T=1.2,T=1.2
T=1.3,T=1.3
T=1.4,T=1.4
T=1.5,T=1.5
T=1.6,T=1.6
9011908254
main90119-08254
