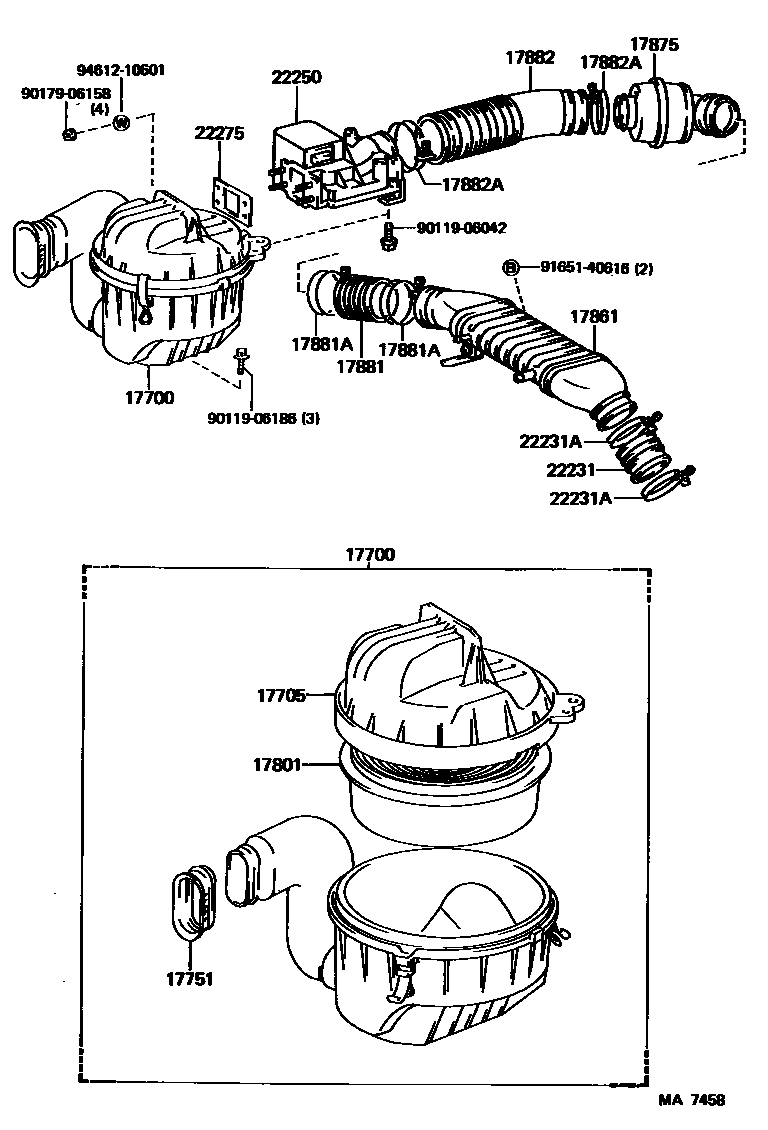

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-70030i5MGE..MX7#198408-198608

main17700-70031i5MGE..MX7#198608-198808

17705CAP SUB-ASSY, AIR CLEANER

main17705-70030i5MGE..MX7#198408-198808

sub17705-73120

17751INLET, AIR CLEANER, NO.1

main17751-70010i5MGE..MX7#198408-198608

main17751-70011i5MGE..MX7#198608-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-70020i5MGE..MX7#198408-198808

17861CONNECTOR, INTAKE AIR

main17860-43020i5MGE..MX7#198408-198808

17875PIPE, INTAKE AIR CONNECTOR

main17875-43050i5MGE..MX7#198408-198808

sub17875-42060

17881HOSE, AIR CLEANER, NO.1

main17881-43070i5MGE..MX7#198408-198808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830i5MGE..MX7#198408-198808

17882HOSE, AIR CLEANER, NO.2

main17882-43110i5MGE..MX7#198408-198808

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10830i5MGE..MX7#198408-198808

PIPE SIDE

main96111-10900i5MGE..MX7#198408-198808

AIR FLOW METER SIDE

22231HOSE, THROTTLE BODY

main22231-43010i5MGE..MX7#198408-198808

22231ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main96111-10800i5MGE..MX7#198408-198808

22250METER ASSY, INTAKE AIR FLOW

main22250-43230i5MGE..MX7#198408-198808

22275GASKET, AIR FLOW METER

main22275-43010i5MGE..MX7#198408-198808

9011906042

main90119-06042

9011906186

main90119-06186

9017906158

main90179-06158

9165140616

main91651-40616

9461210601

main94612-10601

19 parts on this diagram · 1 diagram in section
