HORN

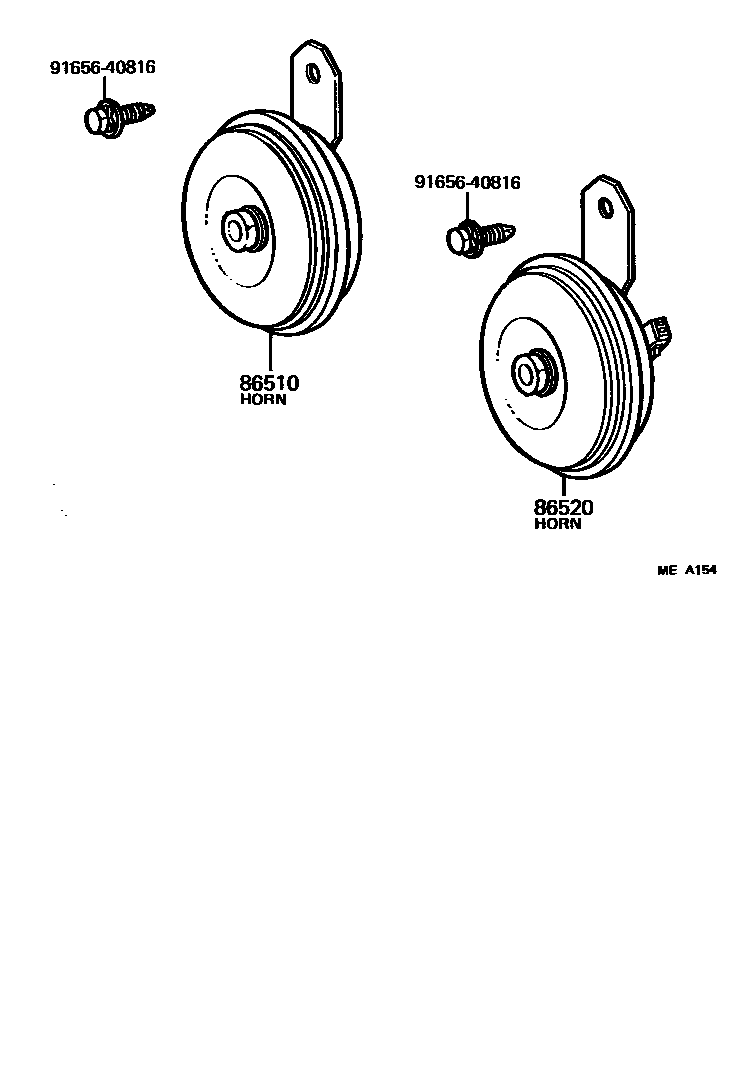

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-22070i198009-198208
DENSO
sub86510-22120
main86510-22080i198009-198208
MARUKO
sub86510-14H91
main86510-22120i198208-198407
DENSO
sub86510-14H93
main86510-22130i198208-198407
MARUKO
sub86510-14H91
86520HORN ASSY, LOW PITCHED
main86520-22070i198009-198208
DENSO
sub86520-22120
main86520-22080i198009-198208
MARUKO
main86520-22120i198208-198301
DENSO
sub86520-14H93
main86520-22120i198301-198407
sub86520-14H93
main86520-22130i198208-198301
MARUKO
sub86520-22120
9165640816
main91656-40816

3 parts on this diagram · 1 diagram in section
