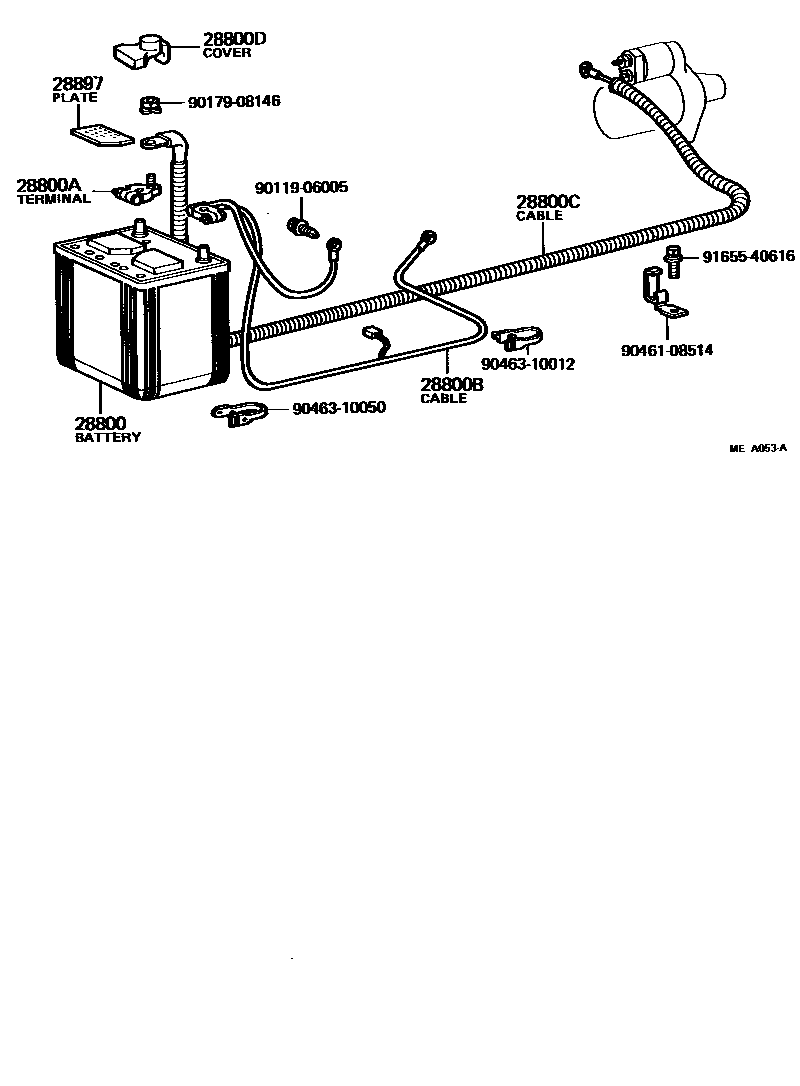

BATTERY & BATTERY CABLE

28800BATTERY

main28800-41040i5ME..MX62..USA198009-198208

N50ZL-MF

sub28800-43070

main28800-45030i5ME..MX62198009-198407

N70ZL-MF

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i5ME..MX62198009-198208

sub90982-05030

main90982-05023i5MGE..MX6#198208-198407

sub90982-05029

28800BCABLE, BATTERY TO GROUND

main90982-02194i5M#..MX6#198009-198407

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01367i5M#..MX6#198009-198407

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-22100i5ME..MX62198009-198208

main82821-24010i5MGE..MX6#198208-198407

28897PLATE, BATTERY CAUTION

main28897-45040i5M#..MX6#198009-198407

sub28897-35010

9011906005

main90119-06005

9017908146

main90179-08146

9046108514

main90461-08514

9046310012

main90463-10012

9046310050

main90463-10050

9165540616

main91655-40616

12 parts on this diagram · 1 diagram in section
