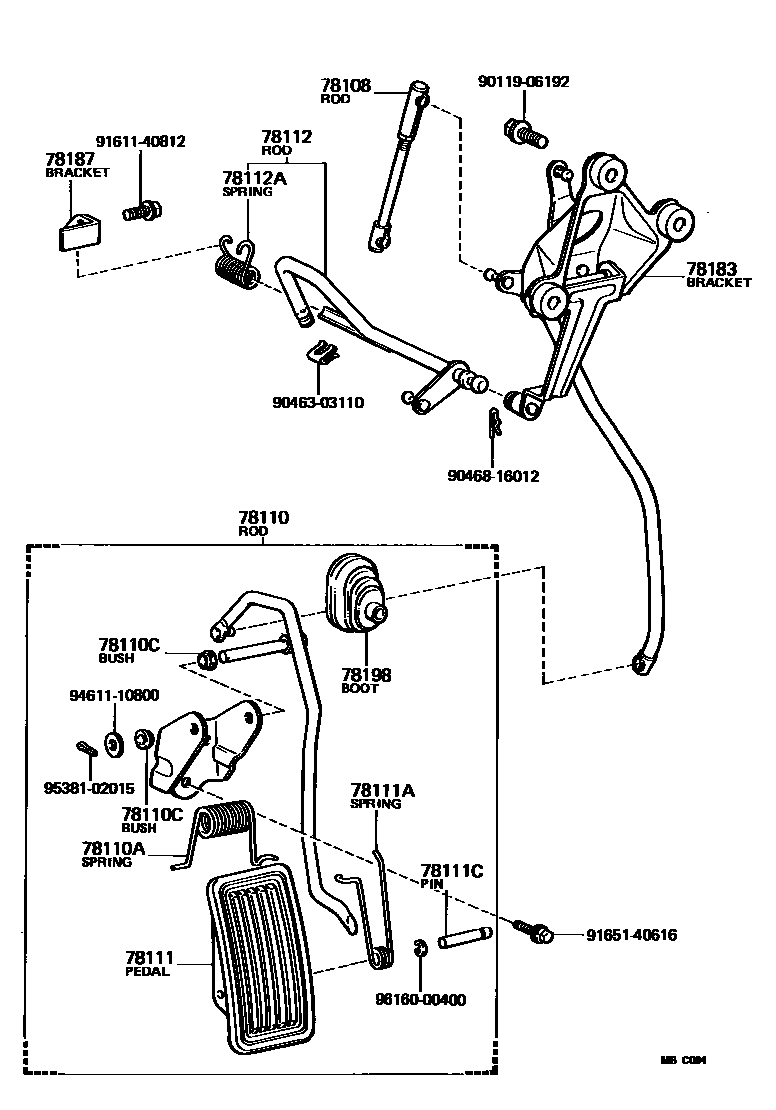

ACCELERATOR LINK
78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78112ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78112ASPRING (FOR ACCELRATOR CONNECTING ROD)
78183BRACKET, ACCELERATOR LINK ROD
78187BRACKET, ACCELERATOR PULL BACK SPRING
78198BOOT, ACCELERATOR CONNECTING ROD
9011906192
main90119-06192
9046303110
main90463-03110
9046816012
main90468-16012
9161140812
main91611-40812
9165140616
main91651-40616
9461110800
main94611-10800
9538102015
main95381-02015
9616000400
main96160-00400
20 parts on this diagram · 2 diagrams in section
