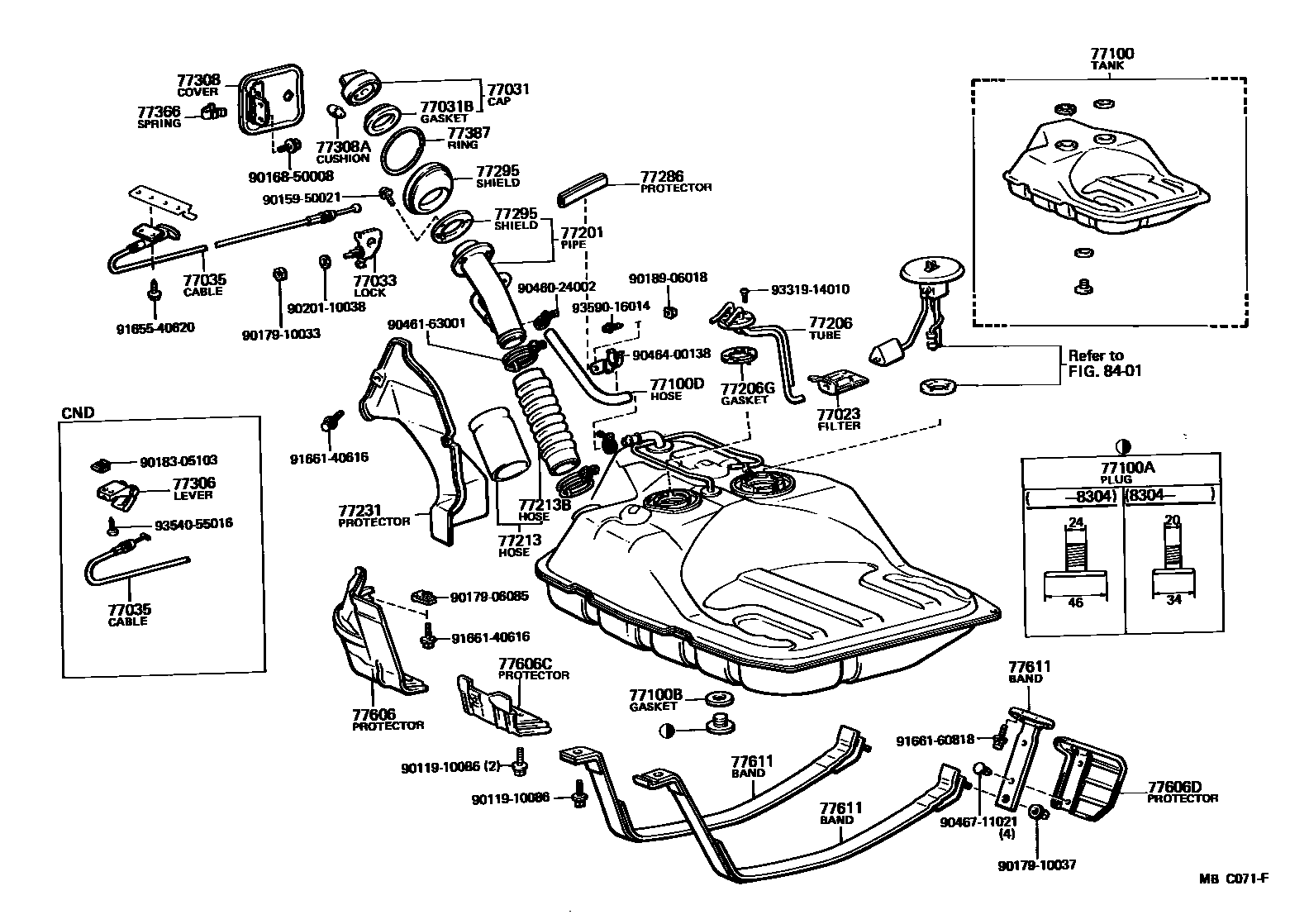

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-30010iMX6#198009-198407

77031CAP ASSY, FUEL TANK

main77310-12090iMX62198009-198108

sub77310-12100

main77310-12100iMX62198108-198208

main77310-16010iMX6#198208-198407

sub77310-16011

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iMX62198009-198208

main77316-16010iMX6#198208-198407

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12010iMX6#198009-198407

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-22010iMX62..SED..USA198009-198012

sub77030-22011

main77030-22011iMX6#..SED..USA198012-198407

main77030-91601iMX62..WG198009-198103

sub77030-91602

main77030-91602iMX62..WG..USA198103-198407

main77035-22080iMX6#..SED..CND198009-198407

main77035-91603iMX62..WG..CND198108-198407

77100TANK ASSY, FUEL

main77001-29015iMX6#..SED198009-198304

sub77001-29085

main77001-29035iMX62..WG198009-198208

sub77001-29036

main77001-29075iMX62198208-198302

sub77001-29076

main77001-29076iMX62198302-198407

main77001-29085iMX63198304-198407

77100APLUG(FOR FUEL TANK)

main90105-12018iMX62..WG198009-198407

main90341-20003iMX63198304-198407

sub90341-20004

main90341-24036iMX6#..SED198009-198304

77100BGASKET(FOR FUEL TANK)

main90430-12245iMX62..WG198009-198407

main90430-20006iMX63198304-198407

main90430-24047iMX6#..SED198009-198304

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22009iMX6#..SED198009-198407

main90445-22018iMX62..WG198009-198407

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22110iMX62..SED198009-198203

main77201-22111iMX62..SED198203-198208

main77201-22140iMX63198208-198407

main77201-91259iMX62..WG198009-198208

main77201-91617iMX62198208-198407

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22060iMX63..USA198208-198407

DIGITAL METER

main77017-22070iMX6#..SED198009-198407

main77017-91607iMX62..WG198009-198208

main77017-91616iMX62198208-198407

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iMX6#..SED198009-198407

main83361-20030iMX62..WG198009-198407

77213HOSE, FUEL TANK SUB INLET

main77213-91607iMX62..WG198009-198208

main77213-91608iMX62198208-198309

sub77213-91609

main77213-91609iMX62198309-198407

main77408-22010iMX62..SED198009-198208

main77408-22020iMX63198208-198407

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22050iMX6#..SED198009-198407

77231PROTECTOR, INLET TUBE

main77277-22020iMX62..SED198009-198208

main77277-22040iMX63198208-198407

77286PROTECTOR, FUEL TANK INLET PIPE

main77476-22010iMX63198208-198407

77295SHIELD, FUEL FILLER PIPE

main77291-12010iMX62..WG198009-198208

main77291-22010iMX62..SED198009-198203

LWR

main77291-22030iMX62198208-198407

main77291-22030iMX6#..SED198203-198407

LWR

main77292-22050iMX6#..SED198009-198407

UPR

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77051-22010-01iMX62..CND198009-198208

BLACK,BLACK

sub77051-22010

main77051-22010-02iMX6#..CND198208-198407

DEEP MAROON,RED/MAROON

sub77051-22010

main77051-22010-04iMX62..CND198009-198208

BLUE,BLUE

sub77051-22010

main77051-22010-06iMX6#..CND198009-198407

DARK BROWN,BROWN

sub77051-22010

main77051-22010-14iMX6#..CND198208-198407

BLUE,BLUE

sub77051-22010

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22030iMX6#..SED198009-198407

main77350-91602iMX62..WG198009-198407

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iMX6#198009-198407

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iMX6#198009-198407

77387RING, FUEL INLET BOX

main77391-16010iMX6#..SED198009-198407

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-22040iMX62..SED198009-198208

main77641-22050iMX63198208-198407

77606CPROTECTOR, FUEL TANK, NO.2

main77642-22040iMX63198208-198407

77606DPROTECTOR, FUEL TANK, NO.3

main77643-22030iMX63198208-198407

77611BAND, FUEL TANK

main77601-22050iMX6#..SED198009-198407

FR RH

main77602-22030iMX62..SED198009-198208

FR LH

sub77602-22060

main77602-22080iMX63198208-198407

FR LH

main77603-22030iMX6#..SED198009-198407

RR

8401

9011910086

main90119-10086

9015950021

main90159-50021

9016850008

main90168-50008

9017906085

main90179-06085

9017910033

main90179-10033

9017910037

main90179-10037

9018305103

main90183-05103

9018906018

main90189-06018

9020110038

main90201-10038

9046024002

main90460-24002

9046163001

main90461-63001

9046400138

main90464-00138

9046711021

main90467-11021

9165540620

main91655-40620

9166140616

main91661-40616

9166160818

main91661-60818

9331914010

main93319-14010

9354055016

main93540-55016

9359016014

main93590-16014

46 parts on this diagram · 4 diagrams in section
