E
EPC Data

SIDE MOULDING

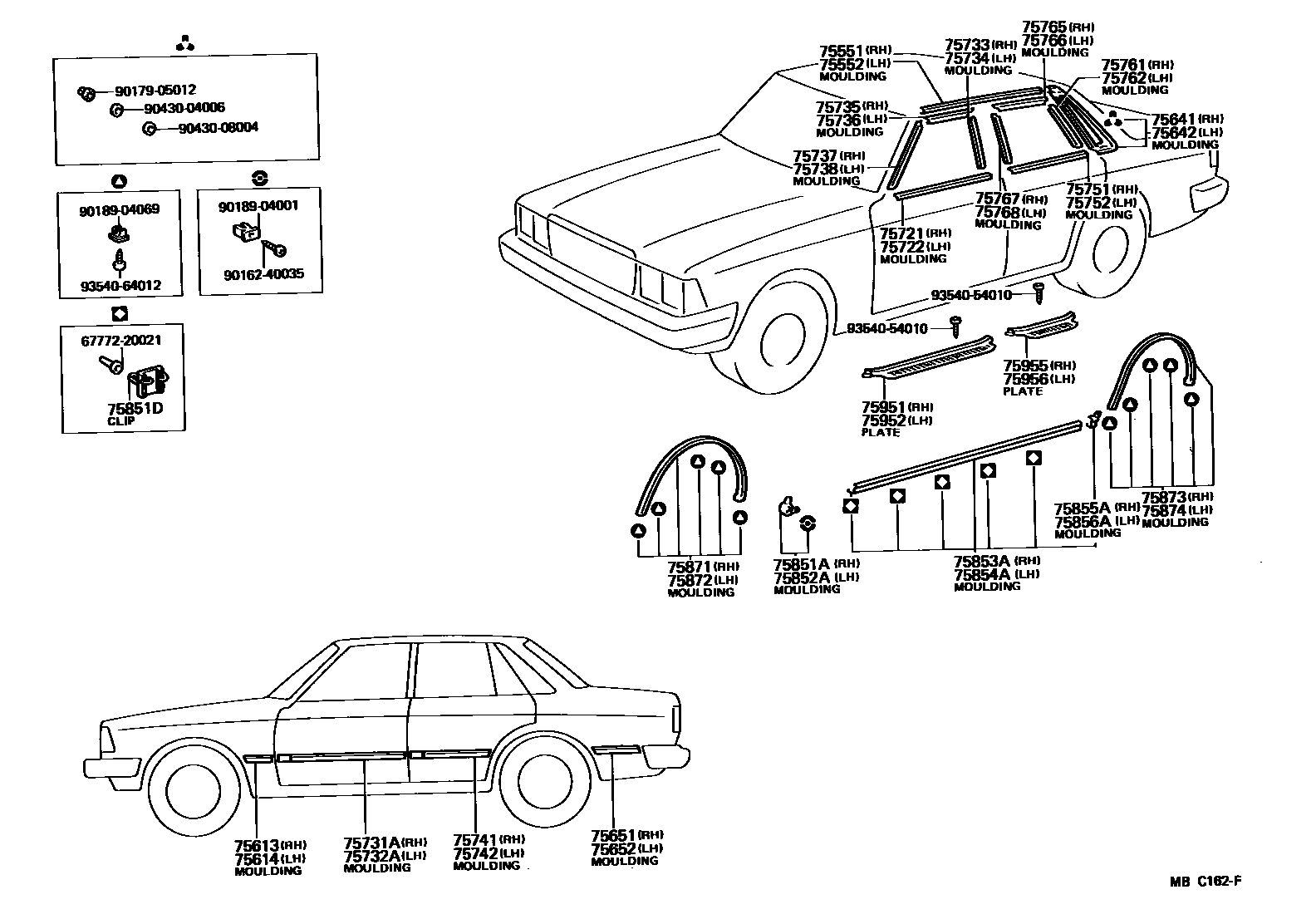

Parts diagram
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-22070i198009-198110
sub75551-22071
main75551-22071i198110-198301
sub75551-22072
main75551-22072i198301-198407
main75551-91606i198009-198210
sub75551-91607
main75551-91607i198210-198407
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-22070i198009-198110
sub75552-22071
main75552-22071i198110-198301
sub75552-22072
main75552-22072i198301-198407
main75552-91605i198009-198210
sub75552-91606
main75552-91606i198210-198407
75613MOULDING, FRONT FENDER, OUTSIDE RH
main75611-22020i198009-198208
main75611-22030-06i198108-198208
W/METAL,BROWN,BROWN
sub75611-22030
main75611-22030-14i198108-198208
W/METAL,BLUE,BLUE
sub75611-22030
main75611-22100-01i198208-198407
BLACK,BLACK
main75611-22100-02i198208-198308
MAROON,RED/MAROON
main75611-22100-06i198308-198407
BROWN,BROWN
75614MOULDING, FRONT FENDER, OUTSIDE LH
main75612-22020i198009-198208
main75612-22030-06i198108-198208
W/METAL,BROWN,BROWN
sub75612-22030
main75612-22030-14i198108-198208
W/METAL,BLUE,BLUE
sub75612-22030
main75612-22100-01i198208-198407
BLACK,BLACK
main75612-22100-02i198208-198308
MAROON,RED/MAROON
main75612-22100-06i198308-198407
BROWN,BROWN
75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH
main68153-29015i198009-198108
sub68153-29016
sub75551-22071
main68153-29016i198108-198407
75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH
main68154-29015i198009-198108
sub68154-29016
sub75552-22071
main68154-29016i198108-198407
75651MOULDING, QUARTER, OUTSIDE RH
main75651-22060i198009-198208
main75651-22070-06i198108-198208
W/METAL,BROWN,BROWN
sub75651-22070
main75651-22070-14i198108-198208
W/METAL,BLUE,BLUE
sub75651-22070
main75651-22120-01i198208-198407
BLACK,BLACK
main75651-22120-02i198208-198308
MAROON,RED/MAROON
main75651-22120-06i198308-198407
BROWN,BROWN
main75651-91607i198009-198208
main75651-91614i198208-198407
75652MOULDING, QUARTER, OUTSIDE LH
main75652-22060i198009-198208
main75652-22070-06i198108-198208
W/METAL,BROWN,BROWN
sub75652-22070
main75652-22070-14i198108-198208
W/METAL,BLUE,BLUE
sub75652-22070
main75652-22120-01i198208-198407
BLACK,BLACK
main75652-22120-02i198208-198308
MAROON,RED/MAROON
main75652-22120-06i198308-198407
BROWN,BROWN
main75652-91607i198009-198208
main75652-91614i198208-198407
75721MOULDING, FRONT DOOR BELT, RH
main75710-22040i198009-198208
sub75710-22041
main75710-22041i198208-198407
75722MOULDING, FRONT DOOR BELT, LH
main75720-22040i198009-198208
sub75720-22041
main75720-22041i198208-198407
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-22090i198009-198208
RH
sub75731-22110
main75731-22101-06i198108-198208
RH,W/METAL,BROWN,BROWN
sub75731-22101
sub75731-95807
main75731-22101-14i198108-198208
RH,W/METAL,BLUE,BLUE
sub75731-22101
sub75731-95807
main75731-22210-01i198208-198407
RH,BLACK,BLACK
main75731-22210-02i198208-198308
RH,MAROON,RED/MAROON
main75731-22210-06i198308-198407
RH,BROWN,BROWN
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-22090i198009-198208
LH
sub75732-22110
main75732-22101-06i198108-198208
LH,W/METAL,BROWN,BROWN
sub75732-22101
main75732-22101-14i198108-198208
LH,W/METAL,BLUE,BLUE
sub75732-22101
main75732-22210-01i198208-198407
LH,BLACK,BLACK
main75732-22210-02i198208-198308
LH,MAROON,RED/MAROON
main75732-22210-06i198308-198407
LH,BROWN,BROWN
75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-22030i198009-198407
75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-22030i198009-198407
75735MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-22030i198009-198407
75736MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-22010i198009-198407
75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
main75751-22050i198009-198407
75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
main75752-22050i198009-198407
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-22070i198009-198208
main75741-22081-06i198108-198208
W/METAL,BROWN,BROWN
sub75741-22081
main75741-22081-14i198108-198208
W/METAL,BLUE,BLUE
sub75741-22081
main75741-22190-01i198208-198407
BLACK,BLACK
main75741-22190-02i198208-198308
MAROON,RED/MAROON
main75741-22190-06i198308-198407
BROWN,BROWN
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-22060i198009-198208
main75742-22071-06i198108-198208
W/METAL,BROWN,BROWN
sub75742-22071
main75742-22071-14i198108-198208
W/METAL,BLUE,BLUE
sub75742-22071
main75742-22180-01i198208-198407
BLACK,BLACK
main75742-22180-02i198208-198308
MAROON,RED/MAROON
main75742-22180-06i198308-198407
BROWN,BROWN
75751MOULDING, REAR DOOR BELT, RH
main75730-22050i198009-198407
sub75730-22051
75752MOULDING, REAR DOOR BELT, LH
main75740-22030i198009-198407
sub75740-22031
75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH
main75765-22040i198009-198407
main75765-91607i198009-198407
75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH
main75766-22050i198009-198407
main75766-91604i198009-198407
75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
main75763-22030i198009-198407
main75763-91607i198009-198407
75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
main75764-22030i198009-198407
main75764-91607i198009-198407
75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-22060i198009-198407
75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-22060i198009-198407
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-29035i198009-198407
75851DCLIP(FOR ROCKER PANEL MOULDING SET)
main75867-22040i198009-198407
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-29025i198009-198407
75853AMOULDING, ROCKER PANEL, CENTER RH
main75853-29016i198009-198407
75854AMOULDING, ROCKER PANEL, CENTER LH
main75854-29016i198009-198407
75855AMOULDING, ROCKER PANEL, REAR RH
main75855-22010i198010-198407
75856AMOULDING, ROCKER PANEL, REAR LH
main75856-22010i198010-198407
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75085-29055i198009-198407
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75086-29055i198009-198407
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75087-29065i198009-198407
main75087-29075i198009-198407
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75088-29065i198009-198407
main75088-29075i198009-198407
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
main67913-22050-01i198009-198208
BLACK,BLACK
main67913-22050-02i198208-198407
DEEP MAROON,RED/MAROON
main67913-22050-04i198009-198208
BLUE,BLUE
main67913-22050-06i198009-198407
D-BROWN,BROWN
main67913-22050-14i198208-198407
BLUE,BLUE
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67913-22050-01i198009-198208
BLACK,BLACK
main67913-22050-02i198208-198407
DEEP MAROON,RED/MAROON
main67913-22050-04i198009-198208
BLUE,BLUE
main67913-22050-06i198009-198407
D-BROWN,BROWN
main67913-22050-14i198208-198407
BLUE,BLUE
75955PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67917-22050-01i198009-198208
BLACK,BLACK
main67917-22050-02i198208-198407
DEEP MAROON,RED/MAROON
main67917-22050-04i198009-198208
BLUE,BLUE
main67917-22050-06i198009-198407
D-BROWN,BROWN
main67917-22050-14i198208-198407
BLUE,BLUE
75956PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67918-22050-01i198009-198208
BLACK,BLACK
main67918-22050-02i198208-198407
DEEP MAROON,RED/MAROON
main67918-22050-04i198009-198208
BLUE,BLUE
main67918-22050-06i198009-198407
D-BROWN,BROWN
main67918-22050-14i198208-198407
BLUE,BLUE
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9016240035
main90162-40035
9017905012
main90179-05012
9018904001
main90189-04001
9018904069
main90189-04069
9043004006
main90430-04006
9043008004
main90430-08004
9354054010
main93540-54010
9354064012
main93540-64012

52 parts on this diagram · 2 diagrams in section
