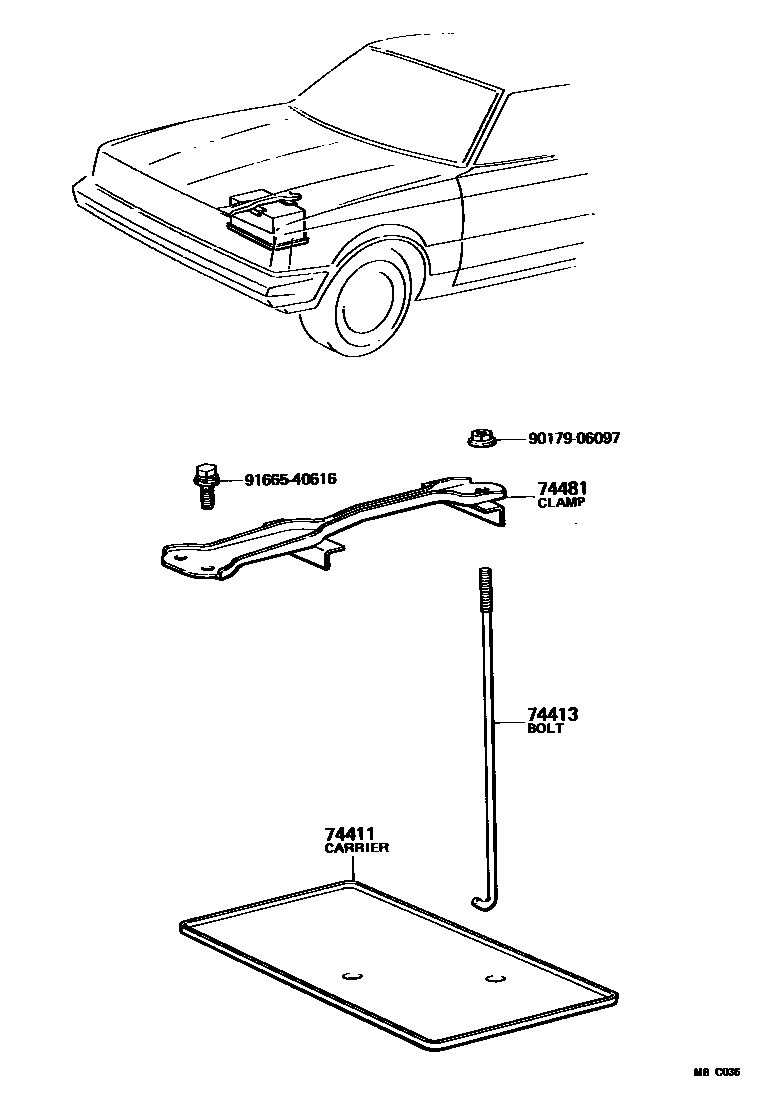

BATTERY CARRIER

74411CARRIER, BATTERY

main74431-14030iMX62..SED..USA198009-198108

N50ZL

sub74431-52040

main74431-14040iMX6#198009-198407

N70ZL

74413BOLT, BATTERY CLAMP

main74451-14010iMX6#198009-198407

74481CLAMP, BATTERY HOLD DOWN

main74404-22130iMX62198009-198208

sub74404-22160

main74404-22160iMX6#198208-198407

9017906097

main90179-06097

9166540616

main91665-40616

5 parts on this diagram · 1 diagram in section
