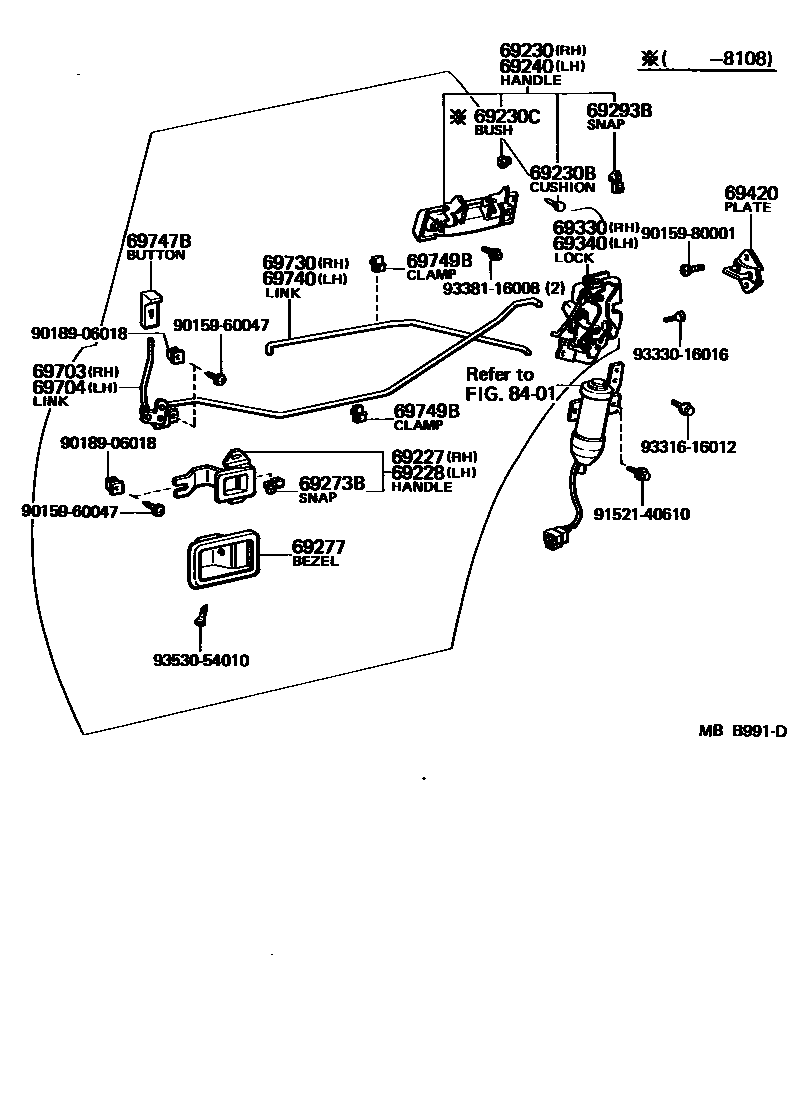

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
LH
RH
69277BEZEL, REAR DOOR INSIDE HANDLE
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
sub69410-90B01
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
8401
9015960047
main90159-60047
9015980001
main90159-80001
9018906018
main90189-06018
9152140610
main91521-40610
9331616012
main93316-16012
9333016016
main93330-16016
9338116008
main93381-16008
9353054010
main93530-54010
27 parts on this diagram · 1 diagram in section
